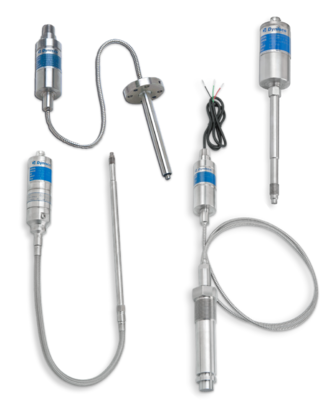

SPX series

Characteristics of the SPX Series

All sensors in this series can be configured. Optional accessories offer a more resistant membrane against abrasive, aggressive materials or without mercury filling and much more.
Contact us, we will be happy to help you with the configuration.

Sensors for potentially explosive atmospheres. ATEX certification.Smart HART communication function ™.
Possibility of mounting with a flange

Output signal	Sensor power supply	Pressure range	Units
4 - 20 mA Optional HART function ™	10 - 36 VDC Standard 10 - 30 VDC ATEX	0 - 2 000 0 - 30 000	Optional

SPX5392

The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature

Product detail

20mA Output

Dynalarity ±0.2%

Pressure Selection

3:1 Turndown

Hazardous Use

HART Remote

Precise Measurements

DSC/PLC Output

PL'c' Relay

Extra Approvals
