Hardness test

MICRO IRHD System

MICRO IRHD System

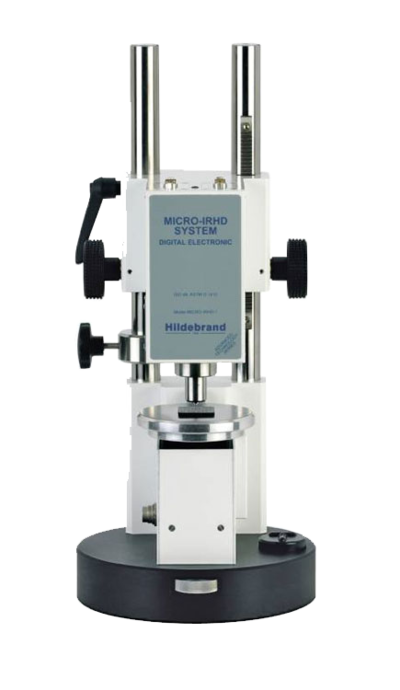

The MICRO IRHD SYSTEM provides hardness readings on elastomers according to MICRO IRHD. Recommended specimen thickness is 1 to 5 mm. It complies to international standards such as DIN ISO 48, ISO 48 and ASTM D 1415.
The MICRO IRHD SYSTEM is a hardness testing machine controlled by a Hildebrand MS-Windows software. 2 weights are automatically lowered and raised. Thus this system eliminates operator errors while testing. Specimen are positioned on the support table. The table automatically drives to the measuring head. The minor load is automatically lowered to the indenter. This position of the indenter represents 100 MICRO IRHD. The major load is lowered now. The penetration of the indenter is digitally measured after 30 seconds and converted into MICRO IRHD UNITS. The Hildebrand MICRO IRHD software checks and controls the operation of the system. The software is working under MS-Windows and offers unique features.
The hardness value, graph, hysteresis, statistics, test report are only a few features of this software. An ASCII-output file is provided. All data are transmitted to the IRHD Controller, which is connected to the RS 232 interface of the computer.

Order num.




Download

ZENDM03

 Parallelendmass 0,3 mm

Slip gauge 0,3 mm carbide

Catalog page

ZENDM05

Parallelendmass 0,5 mm

Slip gauge 0,5 mm ceramic Catalog page
ZENDM10

Parallelendmass 10 mm

Slip gauge 10,0 mm ceramic Catalog page
ZMFTUCH   Microfibre care cloth for slip gauge Catalog page
Z951

cable lifting device for digital dial gauge 1075R

Cable lifting device for digital dial gauge 1075R Catalog page
Z2000H

cable lifting device for digital dial gauge 2000

Cable lifting device for digital dial gauge 2000   Catalog page
ZAHV1075R Abhebevorrichtung für Messuhr 1075R Lifting device for digital dial gauge 1075R Catalog page
216 6081

HilMeasure Logo

HilMeasure licence for thickness gauge HTG-1 incl. data cable Catalog page
219 6082

HilMeasure Logo

HilMeasure licence for thickness gauge HTG-2 incl. data cable Catalog page
219 6083

HilMeasure Logo

HilMeasure licence for thickness gauge HTG-3 incl. data cable Catalog page
310 0054   Proprietary Calibration Certificate issued by Hildebrand Prüf- und Meßtechnik GmbH Catalog page
310 0056   DAkkS Calibration for digital dial gauge Catalog page
