SLC
Spring-Loaded Pelletizer

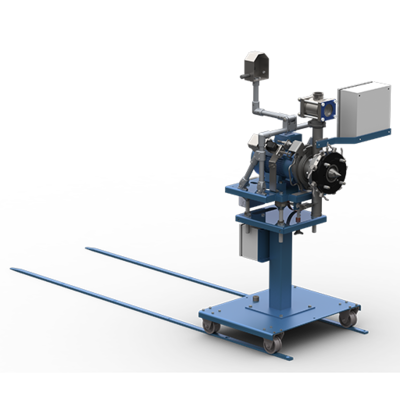

The Spring Loaded Cutter (SLC) is a cost efficient solution for underwater pelletizing basic polymers at lower rates. The SLC pelletizer uses constant spring pressure to adjust the cutter blades to the die plate, reducing the need for operator attention and underwater cutting. The cutter hub is connected to the motor shaft through a telescoping spring sleeve, and the blades are automatically positioned against the die plate using spring force. The blade force can be adjusted per application or product by simply changing springs.
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative MAAG products. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences.
If you need more information do not hesitate to contact us.
MAAG Configuration code
TECHNICKÉ PARAMETRY
| PELLETIZER MODEL | TYPICAL OUTPUT RATE (kg/h | |
| 5 (LPU® System) | 2 - 100 | |
| 5 | 20 - 300 | |
| 6 | 50 - 1800 | |
| 7 | 500 - 6000 | |
| 12 | 2400 - 15000 |
