Underwater pelletizing

SPHERO®

SPHERO®

Underwater pelletizing systems for highly profitable throughput rates of up to 36,000 kg per hour

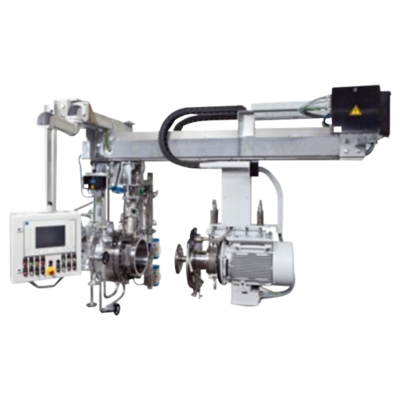

The SPHERO® underwater pelletizing system has been particularly designed to process thermoplastics and produces spherical pellets. This most flexible system for underwater cutting is applied in the production of raw materials, compounds, masterbatches, engineering plastics, recyclate, organic and wood polymer composites, thermoplastics elastomers, microgranulate, hot-melt adhesives, and more.

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative MAAG products. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences.

If you need more information do not hesitate to contact us.

MAAG Configuration code


​​TECHNICKÉ PARAMETRY

Technical data: SPHERO® 50 SPHERO® 70 SPHERO® 100  SPHERO® 140
Diverter valve drive hydraulic unit: 3 kW 11 kW 11 kW 11 kW
Heating: Electrical/liquid Electrical/liquid Electrical/liquid Electrical/liquid
Drive: 3 kW  5.5 kW 7.5 kW 11 kW
Speed range:  1,500-5,000 min-1 1,000-4,000 min-1 1,000-3,500 min-1 500-3,000 min-1
Heat exchanger Tube/Plate heatexchanger
Process water system: PWS 15 PWS 25 PWS 35  PWS 45
  Process water pump: 2.2 kW 4 kW 5.5 kW 7.5 kW
  Process water heating (optional): 12/24 kW 24/48 kW  24/48/60 kW steam 24/48/60 kW steam
  Filtration options: Drawer fi ltration  Drawer fi ltration Belt fi lter Curved screen Inclined screen Vibration fi lter sieve Curved screen Inclined screen Vibration fi lter sieve Belt fi lter Curved screen Inclined screen Vibration fi lter sieve
Technical data: SPHERO® 220 SPHERO® 350 SPHERO® 560
Diverter valve drive hydraulic unit: 15 kW 15 kW 22 kW
Heating: Electrical/liquid  Liquid  Liquid
Drive: 30 kW  45 kW 90 kW
Speed range:  500-2,500 min-1 300-1,800 min-1  250-1,000 min-1
Heat exchanger Tube/Plate heatexchanger
Process water system: PWS 45/80  PWS 80/120 PWS 250
  Process water pump: 15 kW 22 kW 55 kW
  Process water heating (optional): 48/60 kW steam 48/60 kW steam 90 kW steam
  Filtration options: Belt fi lter, curved screen, vibration fi lter sieve

Maximum throughput rate* kg/h:

Technical data: SPHERO® 50 SPHERO® 70 SPHERO® 100  SPHERO® 140
Diverter valve drive hydraulic unit: 600 1,200 2,400 4,300
* depending on pellet weight and polymer.
Technical data:  SPHERO® 220 SPHERO® 350  SPHERO® 560
Diverter valve drive hydraulic unit: 10,000 19,000 36,000
* depending on pellet weight and polymer.
