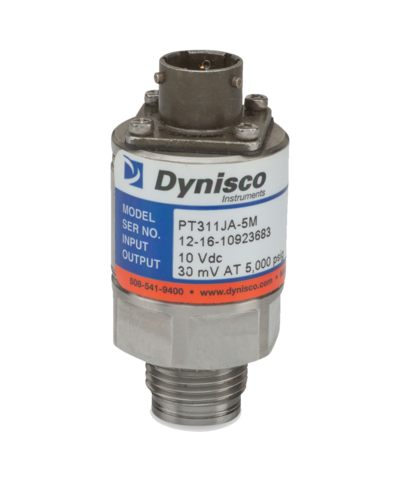

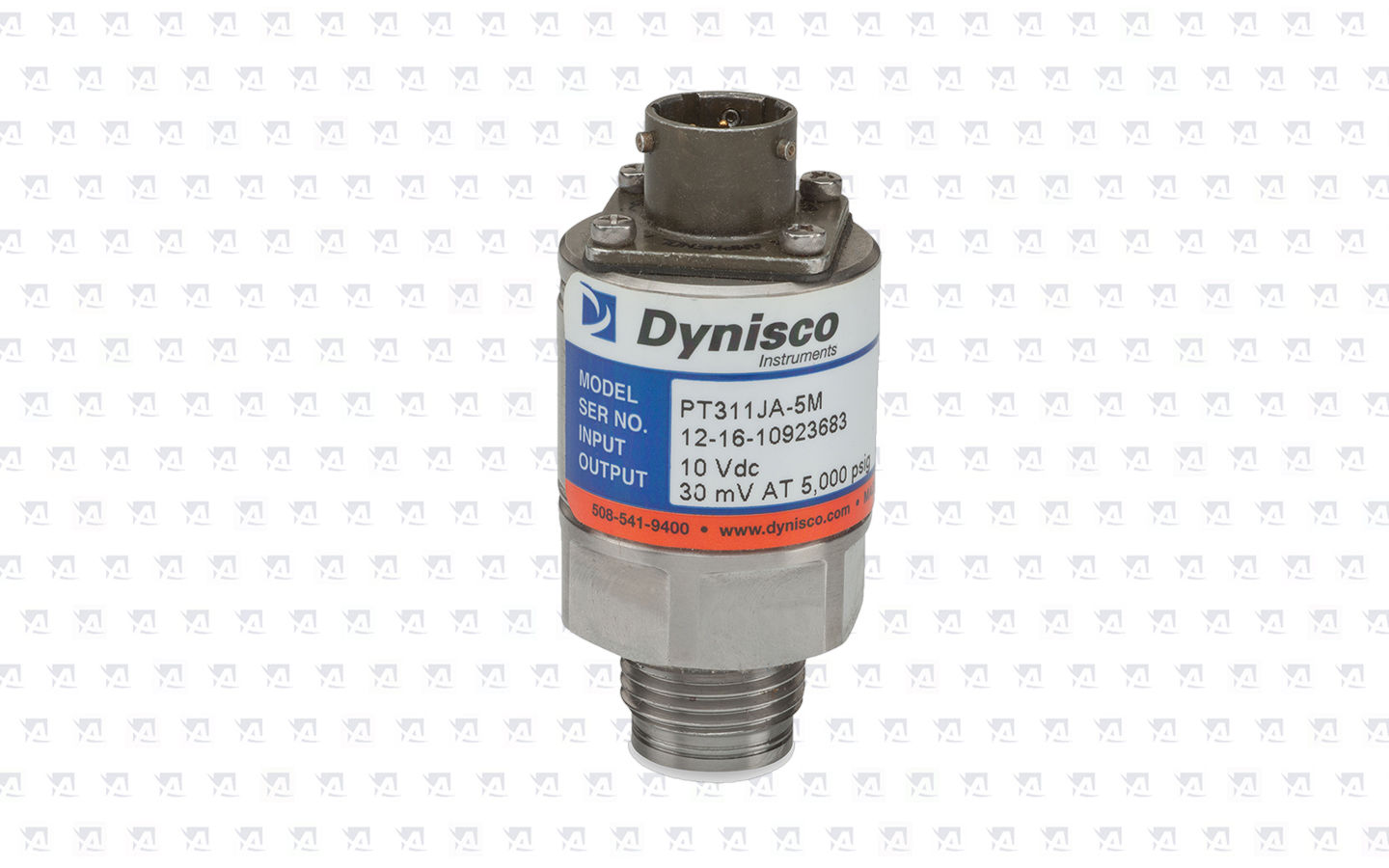

PT311JA Flush Mounted Pressure Sensors

Reliable And Accurate Pressure Measurement


Dynisco's PT311JA flush diaphragm pressure transducer is designed for applications requiring a zero volume pressure port. The flush diaphragm improves frequency response and has excellent cleanability. The PT311JA has a full scale output of 3mV/V and offers reliable and accurate pressure measurement of gases, viscous liquids and slurries.

Performance Characteristics


Pressure Range (psi): 0 - 10,000 PSI
Accuracy: ±0.5% full scale including linearity, hysteresis and repeatability



Electrical Characteristics


Full Scale Output: 3 mV/V minimum
Excitation: 10 Vdc recommended, 12 Vdc maximum
Insulation Resistance: 1,000 megohms @ 50 Vdc
Bridge Resistance: 350 Ohms nominal
Internal Shunt Calibration: 80% full scale ±1.0%

Temperature Characteristics



Operating Range: 65° to +250°F (-54°C to +120°C)
Compensated Range: 0° to 150°F (-18°C to +66°C)
Temperature Effect On Zero: ±0.01% full scale/°F (±0.018% full scale/°C)
Temperature Effect On Span: ±0.02% full scale/°F (±0.036% full scale/°C)

Mechanical Characteristics



Safe Overpressure: 2 x rated pressure
Burst Pressure: 4 x rated pressure
Wetted Material: 17 - 4 PH stainless steel
Cover Material: 303, 304 stainless steel
Pressure Port Seal: Transducer supplied with DYNA-SEAL™ (P/N 633014)
Weight: Approximately 5 ounces

Ordering Guide for PT311JA Pressure Sensors





PT311JA - Dimensions

All dimensions are inches (mm) unless otherwise specified.

Torque wrench Wera 20 - 100 Nm

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
