Eight-core, shielded cable with threaded Bendix 8pin connector

These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.

Six-core cable

Shielded cable

Bayonet connector

6-Pin

CE

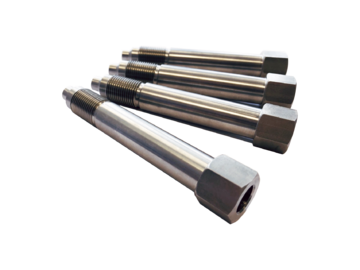

Adapters for pressure sensors

Adapter for Dynisco pressure sensors
Reduction for sensors from 1 / 2-20 UNF thread to M10x1.5 or M18x1.5 thread Another variant is the reduction from m10x1.5 to M18x, 15. These adapters are the fastest and most efficient way to turn an available (warehouse) sensor into a full-fledged replacement for a crisis situation.


High quality workmanship

Adapter options

1 / 2-20 UNF -> M10x1.5

M10x1.5 -> M18x1.5


CE

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Thread cleaning

Prevents damage to the sensor

Maintenance prevention

Melt removal


CE

Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.

Thread repair

Prevents damage to the sensor

Maintenance prevention

Leak removal

CE

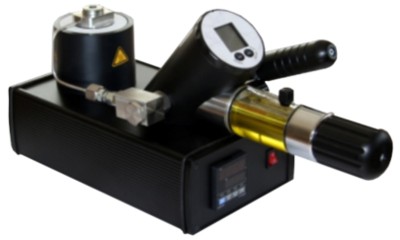

PPS1210 calibration pump

The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.

24VDC sensor power supply

Standard M18x1.5

Adapter 1/2 "-20UNF-2A

Temperature up to 400 ° C

Pressure up to 700 bar

Plug 0-10 VDC

Plug 0-5 VDC

Plug 3.33 mV / V

Plug 2.0mV / V

2.5mV / V plug

Plug 4-20 mA

CE RoHS

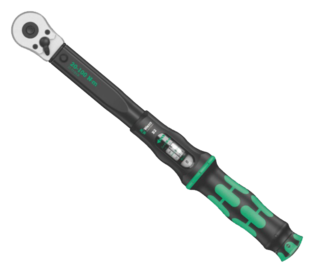

Torque wrench Wera 20 - 100 Nm

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

Accuracy ± 3%

DIN EN ISO 6789-1: 2017-07

Ergonomic handle

20 - 100 Nm

CE

Adapters Button Seal

Process adapters are an accessory to all pressure and temperature sensors, allowing a 1 / 2-20 UNF (Unified National Fine nt) melt pressure sensor to be installed in the mounting port using a flange. The use of the flange is compatible with all sensors of the given dimensions and all manufacturers. Each adapter and sealing elements are made to order depending on the dimensions and mounting port. Flange extensions are available as one-piece constructions or detachable threaded connections. The design of the flange is specific to the one used and depends on the dimensions, thickness and diameter of the mounting screws.

Adaptation of any 1 / 2-20 UNF pressure sensor to the process flange adapter
Can be used with all Dynisco sensors

The flanges can be supplied in one piece, with a thread or a combination of thread and weld
Custom production

CE ISO

Six-core, shielded cable with threaded Bendix 6pin connector

These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.

Six-core cable

Shielded cable

Bayonet connector

6-Pin

CE

Digital Scales Kern PCB

Standard laboratory scales with clear display, simple operation and five operating modes. The advantage of this series is the PRE-TARE function (when activated, the stored weight is automatically deducted from the current measured weight).

PRE-TARE function

Determining the percentage

Resolution 0.001 g

Max. load 350 g

CE

Sartorius Quintix digital scales

It belongs to the group of scales with touch control. The biggest advantage of the Quintix series is easy operation via a color touch screen. Serious applications are clearly displayed with icons, as is usual today for "smart devices". Another plus of this series is excellent data communication. Each Quintix scale is equipped with a mini USB data output with Plug & Play technology.

Přímý export do LMI

Max. zatížení až 220g

Interní kalibrace CAL

Dotykový bar. displej

Standardní modely

Kalibrované modely

CE

Software Lava Suite

The new LaVa Suite software is now available for the LMI 5000 Series capillary plastometers. It offers complete and easy management when collecting, storing and working with digital data provided by the capillary plastometer. Lava Suite ™ software enables additional generated measurement results, filtering using identifiers and comparison of individual measurements on a larger scale, including time horizons.

Software Blue Control

Software for new UPR indicators and ATC controllers, which simplifies setup and configuration. The big advantage is OFF-LINE configuration and setting simulation, which reduces the risk of interrupting ongoing operations. With a PC, setup is even easier than with next-generation controllers and indicators.

UPR 900

ATC 990

1490

Backup

Simulation

Configuration

CE
