Pressure sensors

  1. MDA Series
  2. PT Series
  3. MDT series
  4. SPX series
  5. Echo Series
  6. Vertex Series
  7. Industrial series
  8. Injection Series
  9. Mercury Free Series

MDA 420 | 422 | TDA 432

MDA 420 - Sensor with rigid stem
MDA 422 - Sensor with rigid stem and flexible capillary
TDA  432 - Combined sensor with rigid stem, flexible capillary and built-in temperature sensor


The sensors of this 42x series are specific with an 6-pin threaded connector Bendix and an accuracy of 0.50% of the pressure range. Power supply via 10-12 V DC. Membrane made of 15-5 PH material and coated with DyMAX layer. The length of the fixed rod and the flexible capillary can be optionally configured.

Output signal 3.33 mV / V

Accuracy better than 0.50%

Power supply 10-12 Vdc

6 Pin connector

R-Cal calibration

CE EAC GOST ISO9001 RoHS2

PT 420 | 422 | TPT 432

PT 420A - Sensor with rigid stem
PT 422A - Sensor with rigid stem and flexible stem
TPT 432A - Combined sensor with rigid stem, flexible stem and built-in temperature sensorThe

PT420A Series transducer is a ±0,50% sensor ideal for melt pressure applications requiring high accuracy, simple installation, repeatability and reliability.

Output: 3.33 mV/V

Accuracy better than 0,50%

Units - PSI

Power supply 10-12 Vdc

8 Pin connector

Shunt calibration

CE EAC GOST ISO9001 SIL2

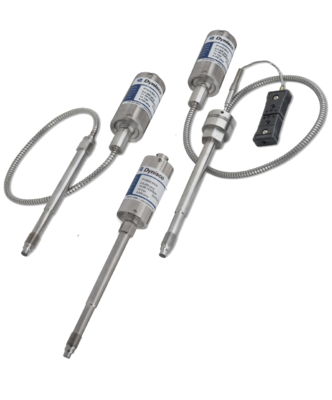

MDA 460 | 462 | TDA 463

MDA 460 - Sensor with rigid stem
MDA 462 - Sensor with rigid stem and flexible stem
TDA  463 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor


The sensors of this 46X series are specific with a 6-pin bayonet connector and an accuracy of 1.00% of the pressure range. Power supply via 10-12 V DC. Membrane made of 15-5 PH material and coated with the DyMAX layer. The length of the rigid stem and the flexible capillary can be optionally configured.

Output signal 3.33 mV/V

Accuracy better than 1.0%

Power supply 10-12 Vdc

6 Pin connector

Shunt calibration

CE EAC GOST ISO9001 RoHS2

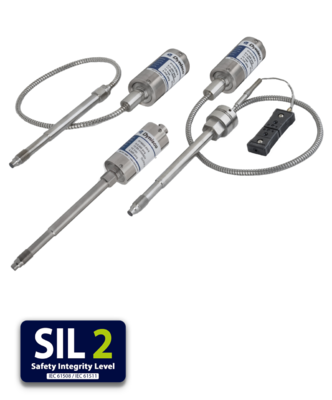

PT 460 | 462 | TPT 463

PT 460F - Sensor with rigid stem
PT 462F - Sensor with rigid stem and flexible stem
TPT 463F - Combined sensor with rigid stem, flexible stem and built-in temperature sensor


Sensors with high accuracy ± 1.0% in optional design. Power supply via 10-12 V dc. Membrane made of 15-5 PH material and coated with DyMAX layer. The length of the fixed rod can be made and adjusted to the required size. 6-pin bayonet connector.

Výstupní signál 3,33 mV/V

Přesnost lepší než 1,0%

Napájení 10-12 Vdc

Jednotky - PSI

6 Pin konektor

Shunt kalibrace

CE EAC GOST ISO9001 RoHS2 SIL2

MDT 420 | 422 | TDT 432

MDT 420 - Sensor with rigid stem
MDT 422 - Sensor with flexible capillary.
TDT 432 - Sensor with flexible capillary and temperature sensor.


Sensor with integrated amplifier (signal converter). Scanning accuracy better than 0.50% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

Output signal according to configuration

Accuracy better than 0.50%

Power supply 10 -36 V dc

6 Pin connector

R-Cal calibration

CE EAC GOST ISO9001 SIL2 RoHS2

MDT 460 | 462 | TDT 463

MDT 460 - Sensor with rigid stem
MDT 462 - Sensor with flexible capillary.
TDT 463 - Sensor with flexible capillary and temperature sensor.


Sensor with integrated amplifier (signal converter). Scanning accuracy better than 1.00% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.

Output signal according to configuration

Accuracy better than 1.00%

Power supply 10 -36 V dc

6 Pin connector

R-Cal calibration

CE EAC GOST ISO9001 PLC SIL2 RoHS2

MDA 410 | 412 | TDA 412 (NaK)

MDA 410 - Sensor with rigid stem
MDA 412 - Sensor with rigid stem and flexible stem
TDA  412 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor



Mercury-free sensors with 10-12 Vdc power supply. They meet the most stringent conditions controlled by the FDA - the Food and Drug Administration and the USDA. The membrane is made of Inconel 718. The length of the rigid rod and flexible capillary can be made and adjusted to the required size.

0 - 35 bar to 0 - 700 bar

Mercury-free sensor

Output signal 3.33 mV/V

6 Pin connector

Accuracy better than 0.50%

Use up to 540°C

Shunt calibration

CE ISO GOST RoHS2

PT 410 | PT412 | TPT412 (NaK)

PT 410 - Sensor with rigid stem
PT 412 - Sensor with rigid stem and flexible stem
TPT 412 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor


The PT 41x series is a sensor with ± 0.50% accuracy, which is ideal for food or medical applications. Its alternative filling (NaK), which replaces mercury.

Accuracy better than ± 0.50%

Applicability up to 538°C

NaK fill

Inconel membrane

3.33 mV/V output signal

CE EAC GOST ISO9001 RoHS2 SIL2

ECHO Series

ECHO sensors are a low-cost solution for common applications.


Power supply according to configuration as well as output signal (mV / V - mA - Vdc). Membrane made of 17-4 PH SST material.


Signál dle konfigurace

6 Pin konektor

±0,50% přesnost snímání

Shunt kalibrace

CE ISO9001 BSI RoHS2 EAC

ECHO (NaK) Series

Mercury-free design. ECHO sensors represent a low-cost solution for common applications.


Power supply according to configuration as well as output signal (mV / V - mA - Vdc). Membrane made of 17-4 PH SST material.

Signal according to configuration

6 Pin connector

± 0.50% scanning accuracy

Shunt calibration

Mercury-free filling

CE ISO9001 BSI RoHS2 EAC

Vertex Series

Vertex is more accurate than any other mercury-filled sensor and is ideal for industrial applications that require low pressure.

The pressure range for Vertex is now available from 250 - 10,000 PSI. Not only is this an overall improvement to one’s process, but it helps with customers that are focused on sustainability and zero-waste.

Optional output signal

Mercury-free sensor

Reinforced membrane

Optional HART communication

Optional connector

Accuracy better than 0.25%

Internal Shunt Calibration (R-Cal)

CE RoHS2 EX ATEX
ISO9001 EAC

EPR3 Push Rod Sensors

The high-temperature EPR3 melt pressure sensor from Dynisco is offered as an alternative to the PT420 and PT460 series. The solid rod design is suitable for applications where the use of a filling medium may not be appropriate, such as applications for the food and pharmaceutical industries and the production of photographic films.
The EPR3 model is available in various pressure variants.


Better than ± 0.5% accuracy

Fixed rod construction

Usable up to 400 ° C

Welded stainless steel construction

Internal calibration 80%


CE EAC GOST ISO9001 RoHS2 SIL2
