Characteristics of the Industrial Series
Pressure sensors of the industrial series, represent various applications. Typical examples are hydraulic test systems, turbine systems, liquid or gas pressure measurements and much more.
Contact us, we will be happy to help you with the configuration.
830 | 850 | 860
Models 830, 850 and 860 are sensors for general use, offering flexible design and accuracy of pressure measurement ± 0.50% of full range. The optional configuration allows users to specify pressure ranges, mounting connections and output signals that meet specific application requirements. The compact sensor ensures reliable operation in a wide range of industrial applications.
Accuracy ± 0.5%
Outputs 3 mV / V, 5 Vdc and 10 Vdc
0 - 100 to 0 - 30 000 psi
Excellent temperature compensation
Internal calibration

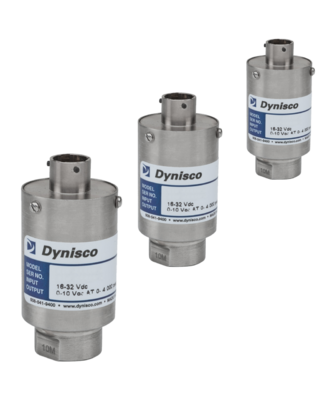

831 | 851 | 861
Models 831, 851 and 861 have universal signal converters with a compact design and pressure measurement accuracy of ± 0.25% of full power range. The optional configuration allows users to select a pressure range, mounting connection and output signal that meets the specific requirements of the application. The adhesive mV sensor ensures reliable operation in a wide range of industrial applications.
Accuracy ± 0.25%
Outputs 3 mV / V, 5 Vdc and 10 Vdc
0 - 100 to 0 - 30 000 psi
Excellent temperature compensation
Internal calibration

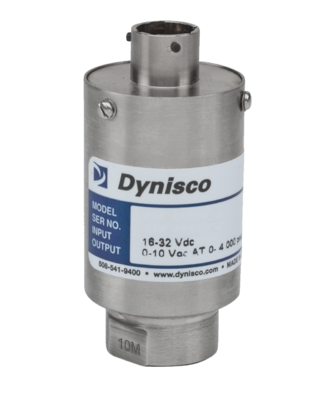

832 Model
Dynisco's 832 is a universal sensor for most applications. The sensor offers highly accurate pressure measurement in the range of 0 to 10,000 PSI. Excellent temperature compensation is ensured by high performance in operating environments up to 120 ° C. Its high accuracy and robust design make it ideal for a variety of applications, such as test stands for the automotive and automotive industries up to test equipment for polymer systems.
Accuracy ± 0.15%
Excellent temperature compensation
Stainless steel construction
Output signal 3 mV/V
Internal calibration

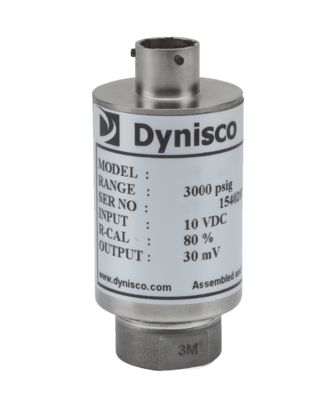

PT139 | PT139A
Dynisco PT139 and PT139A pressure sensors are designed to measure hydraulic pressure in extreme conditions for testing vehicles, stands and other hydraulic and pneumatic applications. These sensors withstand cyclic pressure and provide excellent performance during demanding industrial conditions.
Full power 3 mV/V
Accuracy better than ± 0.5%
The pressure range is from 0-15 PSI to 0-10,000 PSI
Pressure and vacuum support
Extended operating temperature range
Fully welded stainless steel construction
It resists strong shocks and vibrations
Internal 80% calibration
CE approval

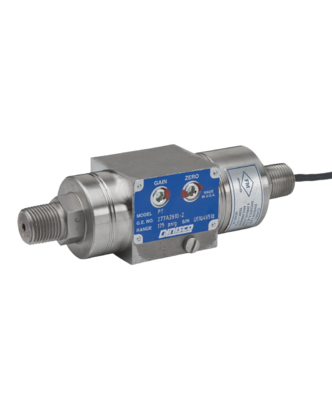

PT199 Pressure sensor
The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.
Stainless steel construction
Adjustable zero and upper range
Excellent temperature compensation
Ranges 0-15 PSI to 0-15000 PSI
Advanced electronic design
Accuracy ±0.25% PT199B, PT199S, APT199S
Accuracy ±0.5% PT199

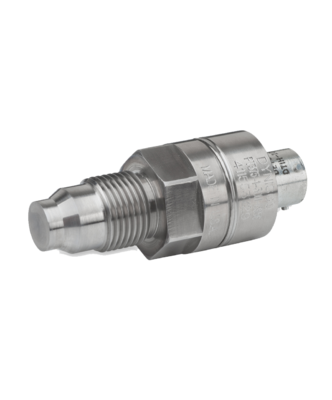

PT375 Pressure Transducer
The Dynisco PT 375 pressure transmitter is designed for applications requiring a zero volume pressure port, fast response time and strict cleanliness standards. The high-pressure metal-to-metal seal offers reliable pressure measurement of sludges, viscous liquids and other media that can be homogenized.
3 mv/v output
Accuracy ±0.50%
Pressure ranges 0-30,000 PSI
Iconel 718 pressure fitting
Zero volume pressure port
Meets cleanability standards
Metal-to-metal pressure seal
Internal 80% shunt calibration

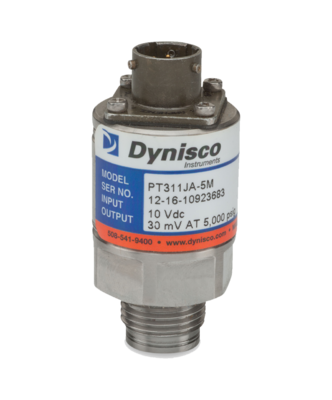

PT311JA Pressure sensor
The Dynisco PT311JA Washable Pressure Sensor is designed for applications requiring a zero volume pressure port. The recessed diaphragm improves the frequency response. The PT311JA has a full 3 mV / V output signal and offers reliable and accurate pressure measurement of gases, viscous liquids.
Flush diaphragm
Accuracy ±0.50%
Zero volume pressure port
15 to 10,000 psi
3 mV/V output
Internal shunt calibration

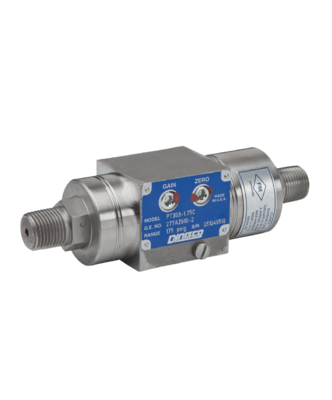

PT303 Pressure sensor
The Dynisco PT303 pressure transmitter is designed for all pressure applications in potentially explosive atmospheres. With high performance and a wide range of pressures, it offers trouble-free operation and flexibility to suit all your requirements.
Accuracy ±0.25%
Stainless steel construction
Heavy duty construction
Ranges 0-750 PSI
Advanced electronic design

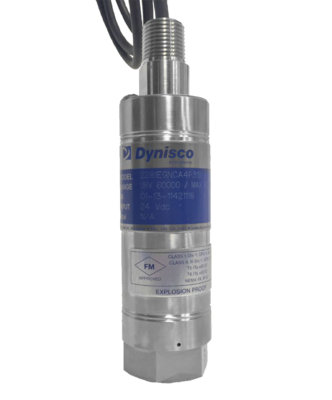

SPX 2280 |2281
Dynisco SPX228X is a versatile rugged intelligent 4-20 mA industrial pressure sensor designed for use in
dangerous places (danger of explosion). Models are available in PSIG, PSIA and PSIS systems. Optional
pressure fittings and electrical connectors are available.
0.25% sensor accuracy
Turndown 3: 1
Optional for use in an danger of explosion area
Remote configurability via HART
Output directly to DSC or PLC
CSA certification of anti-explosion approval
Additional certifications are optionally available
