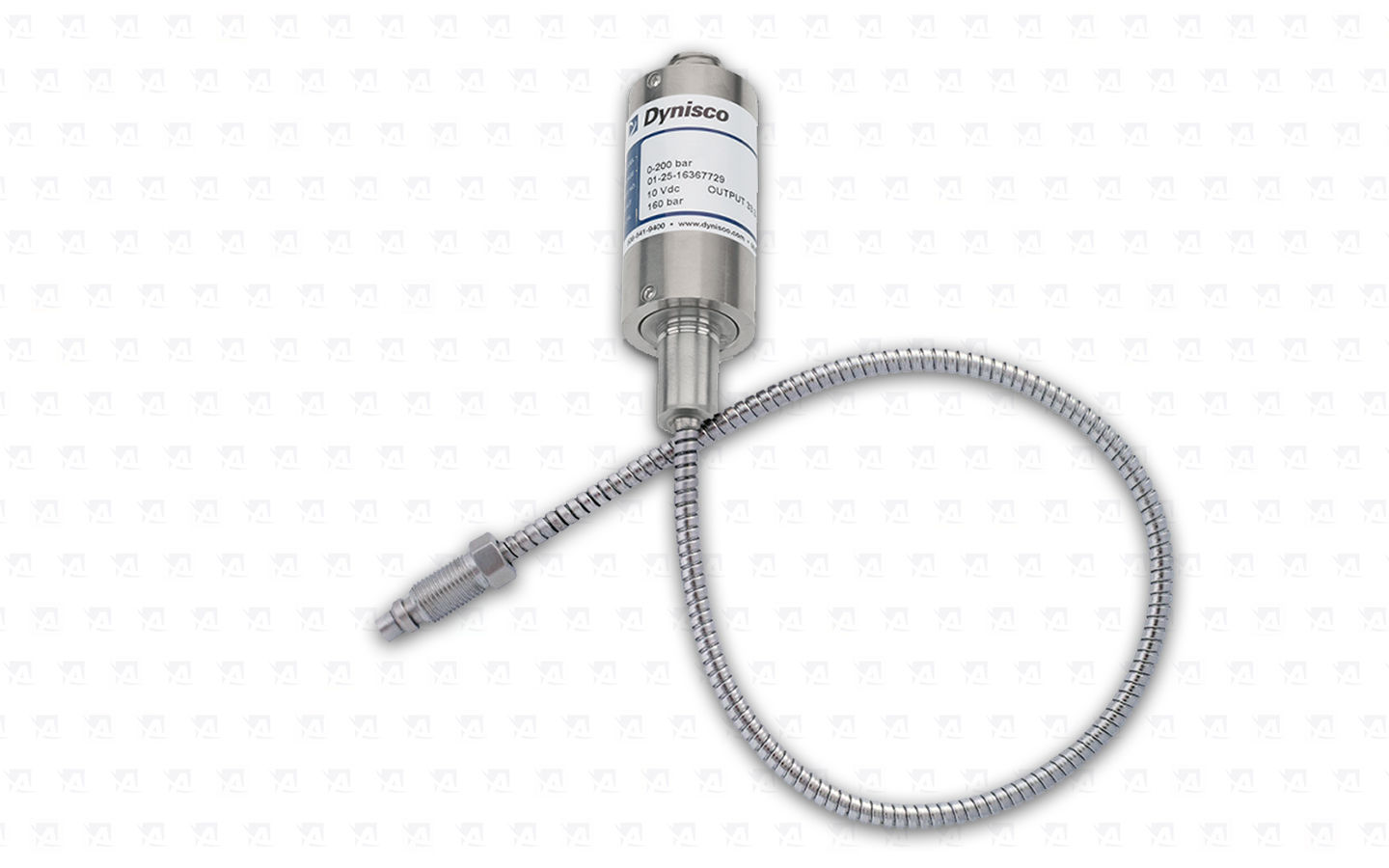

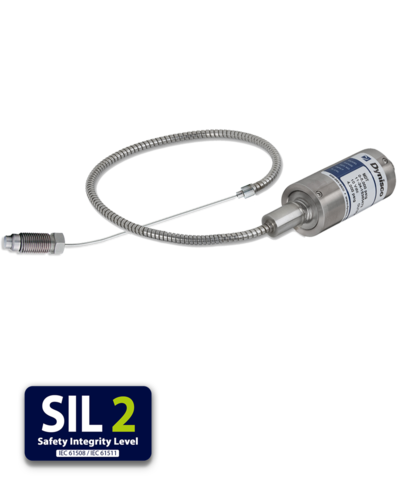

Melt pressure sensor in design with exposed capillary XL
Sensor terminal and compatible cable connector
Adjusting screws - used to adjust the zero and upper range of the sensor
Detail - Bayonet cable connector Amphenol 6-PIN
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco configuration code:
Special variant of the pressure sensor with flexible capilary and exposed capillary
Our pressure sensors offer efficient, accurate, and durable solutions for reliable and safe pressure measurement. These sensors are used in a variety of industrial areas, where they monitor and measure the pressure of molten materials, ensuring optimal operation of production processes. Due to their resistance to high temperatures and pressures, which are typical for these applications, they represent a suitable choice for diverse uses. When selecting a sensor, it is important to consider the specific requirements of your application, such as temperature range, pressure range, and materials with which the sensor will interact. The correct choice of sensor guarantees reliable and accurate results and a long service life of the device without any problems. Installing the sensor into the mounting hole of the production line is simple.
PT4675 Pressure Sensors - With flexible and exposed capillary
Innovative pressure sensor, perfectly designed for injection applications with minimal installation space. Thanks to its unique features and state-of-the-art technical parameters, this sensor can cope with demanding conditions in any environment. The manufacturer spared no expense in advanced technologies and sophisticated production processes, enabling the sensor to achieve very small dimensions and low weight without any compromise to its outstanding performance. The pressure sensor is an ideal solution for a wide range of injection applications, thanks to its exceptional resistance to vibrations, which it can withstand very well. A pleasant bonus is the easy and hassle-free installation of this sensor in spaces with limited dimensions.
Performance Characteristics
Ranges (psi): |
0 - 30 000 PSI |
Accuracy: |
±0.5% FSO |
Repeatability: |
±0.2% FSO |
Mounting Torque: |
500 inch - lbs. maximum |
Maximum Pressure: |
2 x full range or 35,000 psi (whichever is less) |
Material in Contact with Pressure Media: |
15 - 5 PH stainless steel, DyMax™ coated |
Weight: |
2 lbs |
Temperature Characteristics
Transducer Diaphragm:
|
|
Maximum Diaphragm Temperature: |
750ºF (400ºC) |
Zero Shift due to Temperature Change: |
25 psi/100°F (45 psi/100°C) |
Electronics Housing:
|
|
Operating Temperature Range: |
-20°F to +160°F (-29°C to +71°C) |
Temperature Effects Over a Compensated Range of: |
+30°F to +160°F (-1°C to +71°C) |
Thermal Effect on Zero: |
±0.05% full scale/°F |
Thermal Effect on Span: |
±0.02% full scale/°F |
Electrical Characteristics
PT4675:
|
|
Output: |
0 to 5 Vdc |
Input Voltage: |
11 to 36 Vdc |
Load Resistance: |
2,000 Ohms minimum |
Zero Balance Adjustment Range: |
±15% |
Span Adjustment Range: |
±15% |
PT4675B:
|
|
Output: |
1 to 6 Vdc |
Input Voltage: |
11 to 36 Vdc |
Load Resistance: |
2,000 Ohms minimum |
Zero Balance Adjustment Range: |
±15% |
Span Adjustment Range: |
±15% |
PT4676:
|
|
Output: |
0 to 10 Vdc |
Input Voltage |
16 to 36 Vdc |
Load Resistance: |
2,000 Ohms minimum |
Zero Balance Adjustment Range: |
±15% |
Span Adjustment Range: |
±15% |
PT4676B:
|
|
Output: |
1 to 11 Vdc |
Input Voltage |
16 to 36 Vdc |
Load Resistance: |
2,000 Ohms minimum |
Zero Balance Adjustment Range: |
±15% |
Span Adjustment Range: |
±15% |

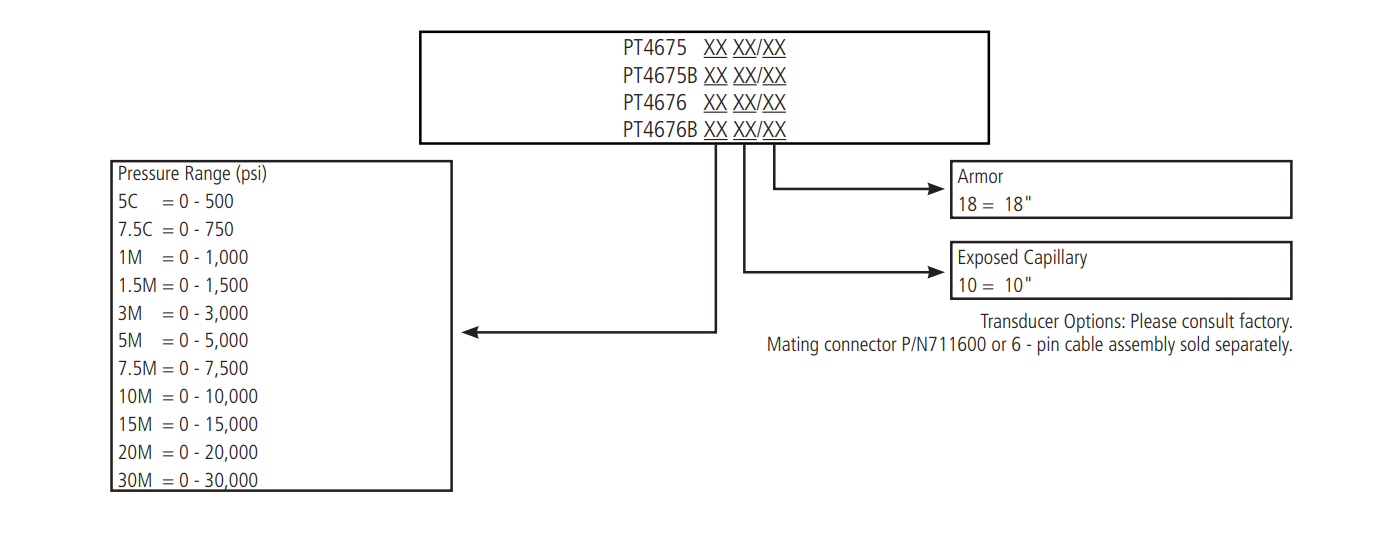

Ordering Guide for PT4675 & PT4676 Series

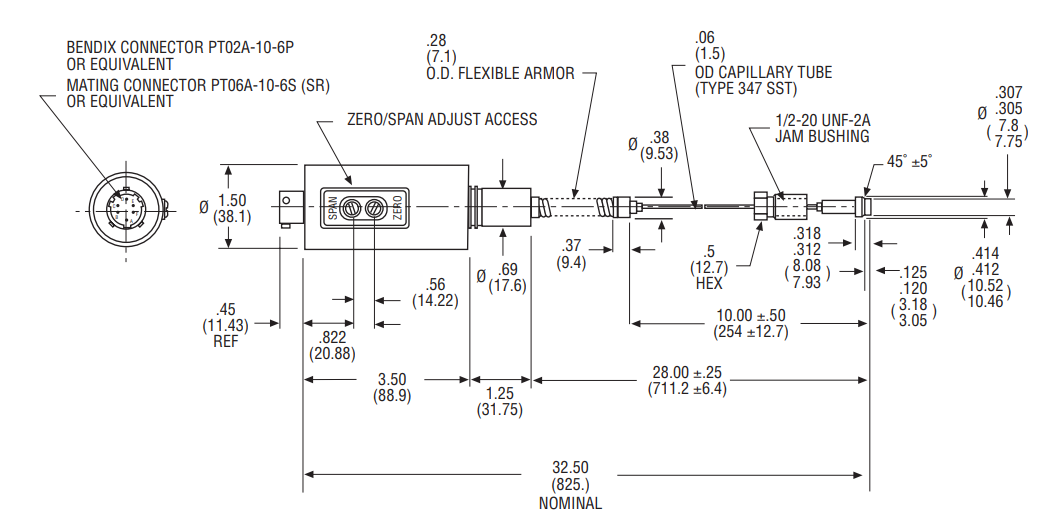

PT4675 & PT4676 Series - Dimensions
All dimensions are inches (mm) unless otherwise specified.
Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)
Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
