MDA Series

MDA435 - Melt pressure sensor with flexible and exposed capillary


The MDA435 models are robust and reliable sensors. These models are equipped with a flexible and exposed capillary for easy installation and use in extremely cramped conditions or deviation of the sensor measuring head from the radiant heat of the machine.

The entire MDA range provides an industry standard with a 3.33 mV/V output signal designed to work with most pressure indicators and regulators. This sensor model is equipped with an eight-pin Bendix connector and a 1/2 "-20 UNF 2A or M18x1.5 mounting thread.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

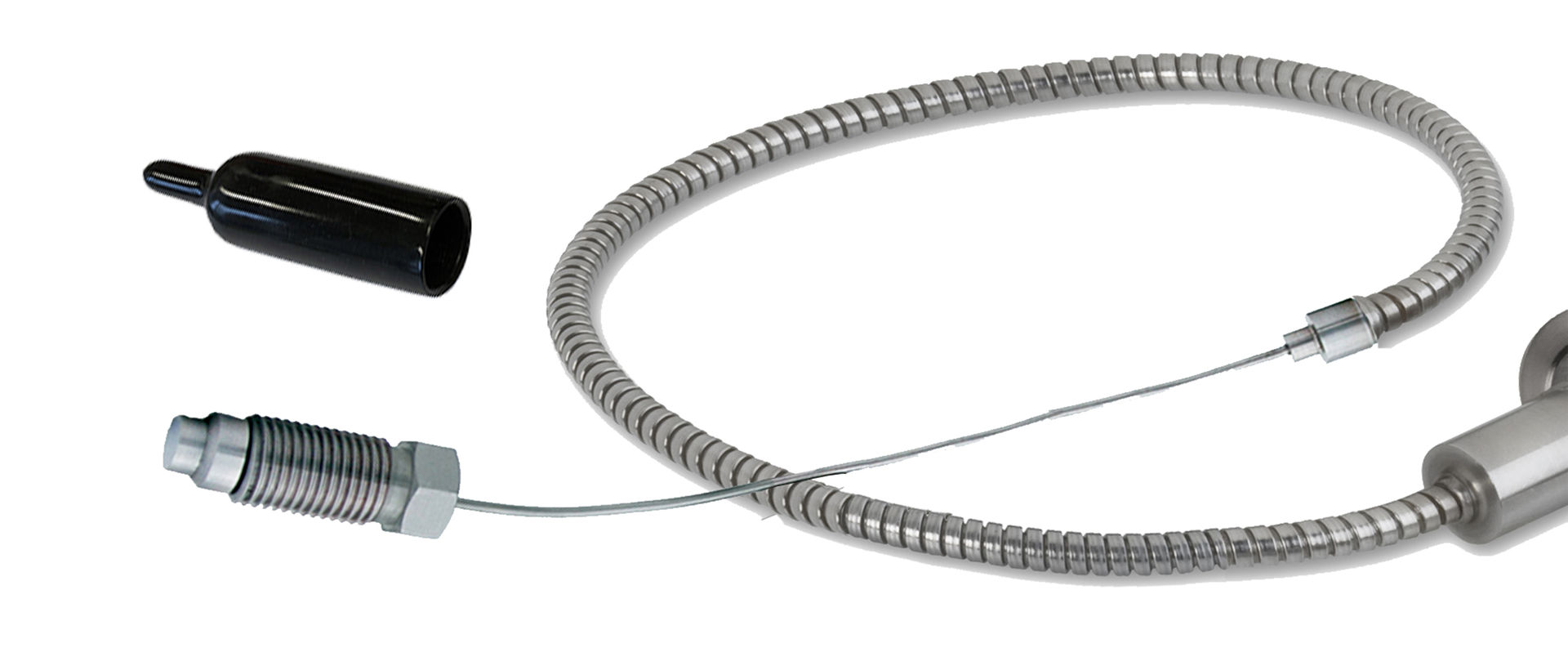

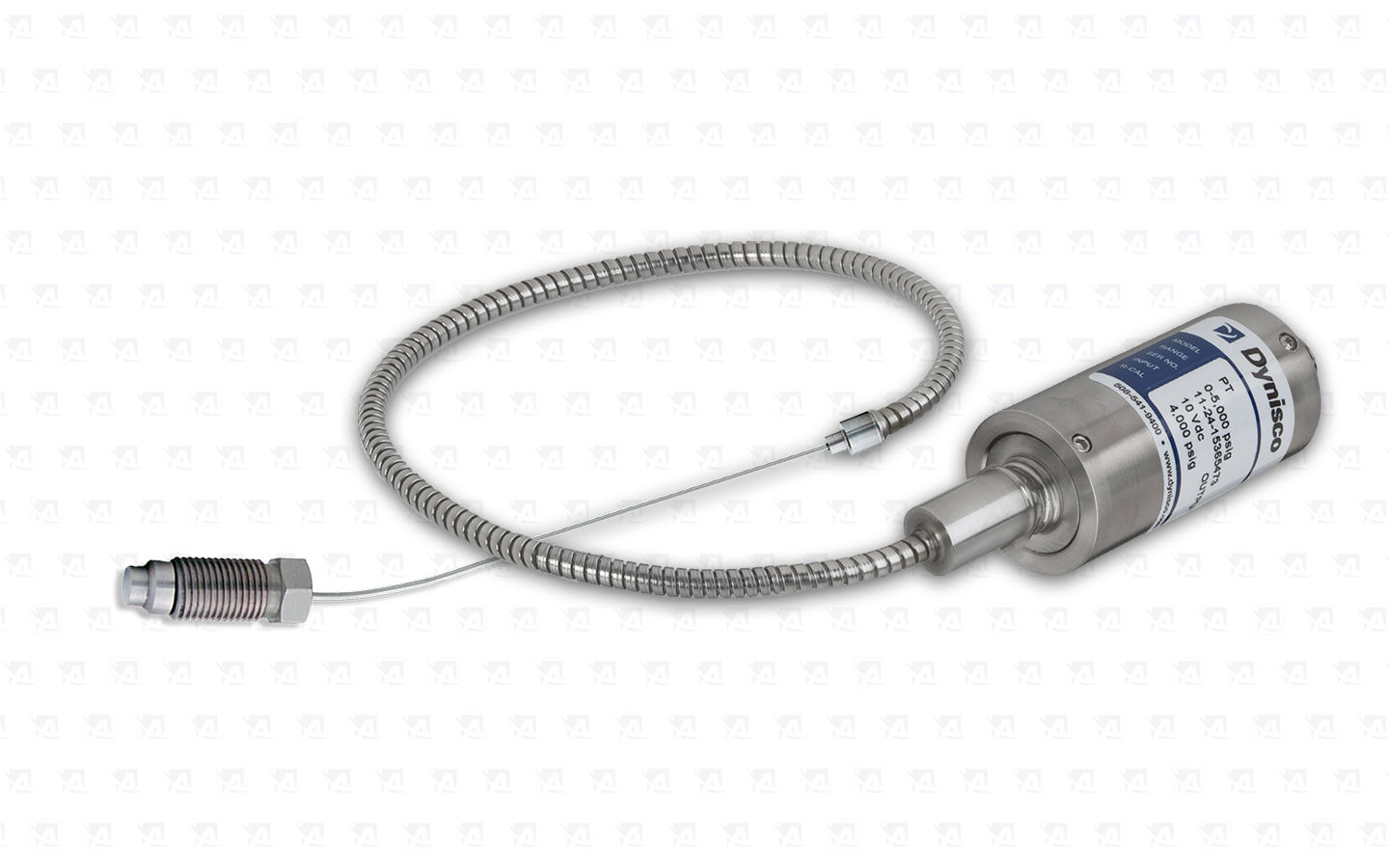

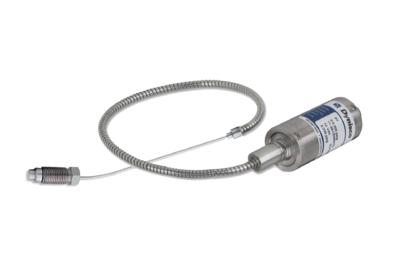

MDA 435 - Melt pressure sensor in design with exposed capillary

MDA 435 - Melt pressure sensor in design with exposed capillary

MDA 435 - Melt pressure sensor in design with exposed capillary

MDA 435 - Melt pressure sensor in design with exposed capillary

Sensor terminal and compatible cable connector

Sensor terminal and compatible cable connector

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco configuration code:

Your personal data will be processed according to Terms of personal data processing..

High Accuracy, Simple Installation, Repeatability And Reliability

Special sensor for confined installation spaces or injection applications.

MDA435 Pressure Sensors - With flexible and exposed capillary

Innovative pressure sensor, perfectly designed for injection applications with minimal installation space. Thanks to its unique features and state-of-the-art technical parameters, this sensor can cope with demanding conditions in any environment. The manufacturer spared no expense in advanced technologies and sophisticated production processes, enabling the sensor to achieve very small dimensions and low weight without any compromise to its outstanding performance. The pressure sensor is an ideal solution for a wide range of injection applications, thanks to its exceptional resistance to vibrations, which it can withstand very well. A pleasant bonus is the easy and hassle-free installation of this sensor in spaces with limited dimensions.

Performance Characteristics

Pressure Range: 0-17 bar to 0-2000 bar
Accuracy:  ± 0.5 % f.s.v. - up to 50 bar ± 1 % f.s.v.
Repeatability:  ± 0.1 % f.s.v. - up to 50 bar ± 0.2 % f.s.v.
Resolution: Infnite
Maximum Overload (without influencing operating data): 2 x pressure range but for 1000 and 1400 bar range max.1750 bar,for 2000 bar max. 2400 bar
Burst Pressure: 6x pressure range max. 3000 bar
Material in Contact with Media: 15-5 Mat. No. 1.4545, DyMAX coated


Temperature Characteristics


Max. Temperature:  400°C
Zero Shift Due to Temperature Change: <0.2 bar / 10°C
Max. Temperature:  120°C
Zero Shift Due to Temperature Change: ±0.2% f.s.v./10°C
Sensitivity Shift Due to Temperature Change:  ±0.1% f.s.v./10°C (up to 50 bar ±0.2% f.s.v./10°C)

Electrical Characteristics


Configuration: 4-arm Wheatstone bridge strain gage
Internal Shunt Calibration: 80% f.s.v ±0.5%
Output Signal: 3.33 mV/V
Supply Voltage: 10 V DC, max. 12 V DC
Zero Balance: ±5% f.s.v
Strain Resistance: 350Ω
Leakage Resistance: 1000MΩ at 50 Vdc

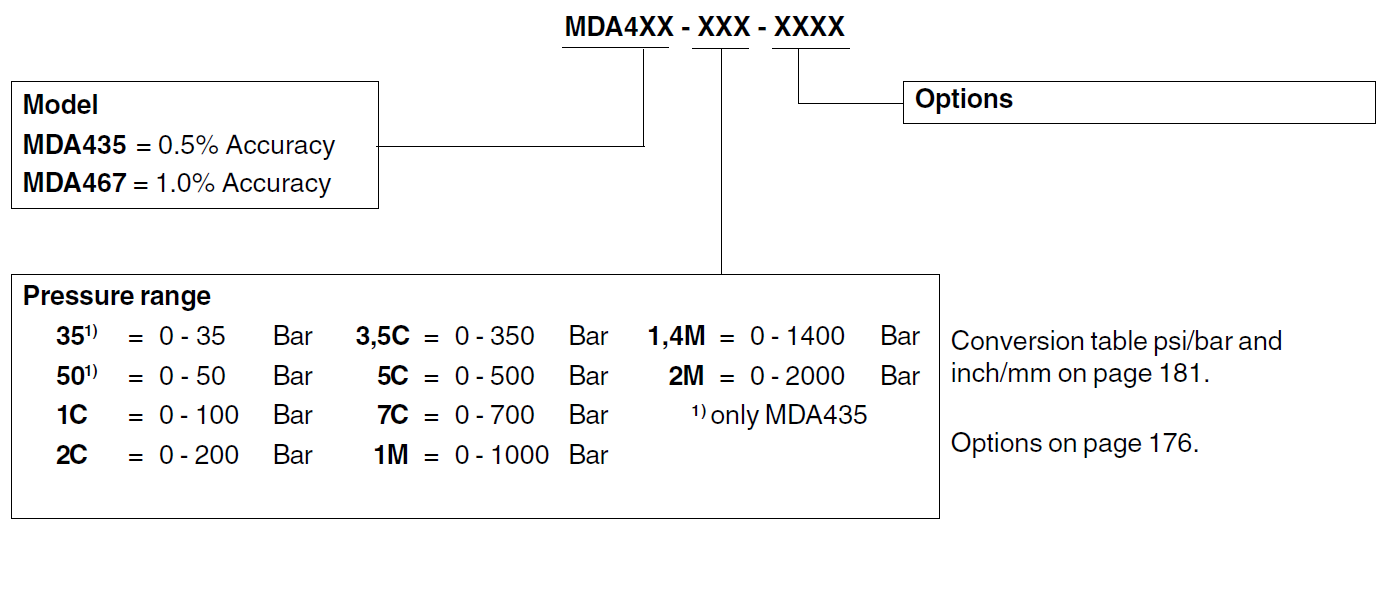

Order specifications for MDA435 and MDA467 Series

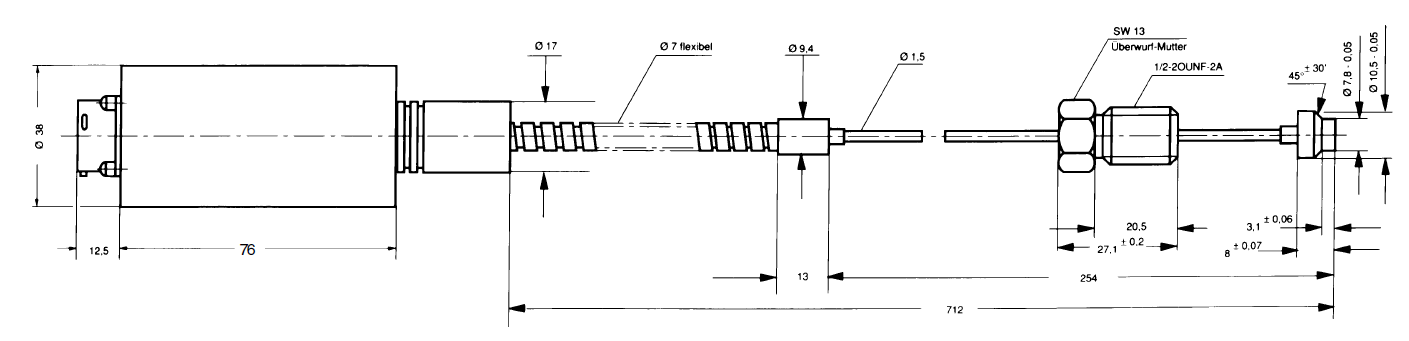

MDA 435 - Dimensions

All dimensions are inches (mm) unless otherwise specified.

Torque wrench Wera 20 - 100 Nm

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.

Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
