Mercury Free Series

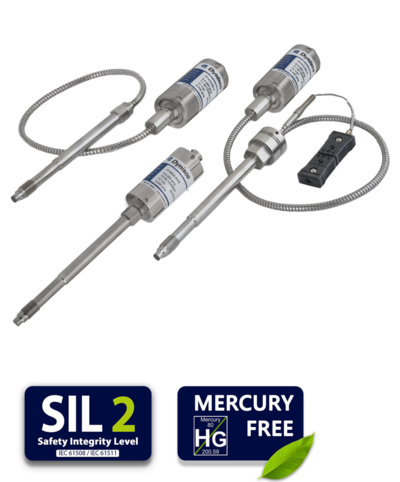

PT410 - Sensor with rigid stem, PT412 - Sensor with rigid stem and flexible stem, TPT412 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

PT410 | PT412 | TPT412 (NaK)

The PT410 Series Sensor is a ±0.25% precision sensor that is ideal for food or medical applications requiring high accuracy, ease of installation, repeatability and reliability. The NaK filling material meets the requirements set by the FDA and USDA for production in contact with food and medical products.

The PT410 Series sensors provide an industry standard 3.33 mV/V signal that is designed to work with most pressure indicators. The PT410 is equipped with an eight-pin Bendix connector.Thermocouples or RTD configurations are available to provide temperature and pressure at a single point. PT410 is equipped with a UNF 1/2-20 thread for mounting in standard mounting holes.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

PT 410  - Melt pressure sensor in a design with a fixed stem

PT 410 - Melt pressure sensor in a design with a fixed stem

PT 412 - Melt pressure sensor in a design with a flexible capillary

PT 412 - Melt pressure sensor in a design with a flexible capillary

TPT 412 - Melt pressure sensor in combined design with temperature sensor

TPT 412 - Melt pressure sensor in combined design with temperature sensor

PT 410  Melt pressure sensors series

PT 410 Melt pressure sensors series

Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.

Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.

Adjusting screws - used to adjust the zero and upper range of the sensor

Adjusting screws - used to adjust the zero and upper range of the sensor

Sensor terminal and compatible cable connector

Sensor terminal and compatible cable connector

Detail - Bayonet cable connector Amphenol 6-PIN

Detail - Bayonet cable connector Amphenol 6-PIN

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco Configuration Code:

Your personal data will be processed according to Terms of personal data processing..

Ideal For Food Or Medical Applications

Our pressure sensors offer efficient, accurate, and durable solutions for reliable and safe pressure measurement. These sensors are used in a variety of industrial areas, where they monitor and measure the pressure of molten materials, ensuring optimal operation of production processes. Due to their resistance to high temperatures and pressures, which are typical for these applications, they represent a suitable choice for diverse uses. When selecting a sensor, it is important to consider the specific requirements of your application, such as temperature range, pressure range, and materials with which the sensor will interact. The correct choice of sensor guarantees reliable and accurate results and a long service life of the device without any problems. Installing the sensor into the mounting hole of the production line is simple.
However, if you have doubts about the proper installation, do not hesitate to contact our technicians. We are ready to provide support and offer the ideal solution for your application.

PT410 Pressure Sensors - With rigid stem


Rigid Stem pressure sensors are easily installed into the mounting hole of the production line, ensuring a simple and robust design that is suitable for applications where the sensor is not exposed to radiant heat from the line and the electronics are not subjected to extreme temperatures. We do not recommend installing these sensors in a vertical position above the line (12 o'clock position), as radiant heat can negatively affect the sensor's electronics lifespan. In such cases, we recommend using a sensor design with a flexible capillary, which allows the electronics to be diverted away from the radiant heat, ensuring a long sensor life. The main advantages of this type of sensor include resistance to impacts and vibrations, enabling them to withstand mechanical stress, which increases their lifespan and reduces the need for maintenance. They also feature high accuracy, ensured by quality materials and advanced measurement technology, which is crucial for efficient process control.



PT412 Pressure Sensors - With rigid stem and flexible capillary


Pressure sensors with flexible capillaries represent a professional solution suitable for applications with limited space or exposure to radiant heat from heating elements in production lines. Thanks to the thoughtful extended design, the sensor's electronics are located out of reach of the radiant heat source, reducing the risk of damage.

The flexible capillary is designed to be resistant to damage and allow a high degree of bending, which facilitates installation and handling of the sensor. It is essential to properly secure the sensor head to the included adapter, which is part of the package. To achieve optimal performance, we recommend placing the adapter on a part of the machine where unwanted vibrations or shocks do not occur, as these could negatively affect the sensor.

The length of the rod and flexible capillary can be customized according to individual needs, as well as other optional components. This ensures maximum flexibility in integrating the sensor into a wide range of industrial applications.

TPT412 Pressure Sensors - Combined sensor with rigid stem, flexible capillary and built-in temperature sensor


Combined pressure sensors with flexible capillaries represent a professional solution suitable for applications with limited space or exposure to radiant heat from heating elements in production lines. Thanks to the thoughtful extended design, the sensor's electronics are located out of reach of the radiant heat source, reducing the risk of damage.

Additionally, these sensors are equipped with a temperature sensor, allowing the customer to choose the type of sensor, whether it is a type J, K thermocouple, or an RTD (pt100). By selecting a compatible sensor for temperature measurement, the customer obtains information about the melt temperature from a single process connection, increasing measurement efficiency and accuracy.

The flexible capillary is designed to be resistant to damage and allow a high degree of bending, which facilitates installation and handling of the sensor. It is essential to properly secure the sensor head to the included adapter, which is part of the package. To achieve optimal performance, we recommend placing the adapter on a part of the machine where unwanted vibrations or shocks do not occur, as these could negatively affect the sensor.

The length of the rod and flexible capillary can be customized according to individual needs, as well as other optional components. This ensures maximum flexibility in integrating the sensor into a wide range of industrial applications.





Performance Characteristics


Outputs: 3.33 mV/V ± 2.0%
Input Voltage: 10 Vdc recommended, 12 Vdc maximum
Combined Error: ± 0.25% FSO, (Including Linearity, Repeatability & Hysteresis) ± 0.5% FSO for 500, 750, 1,000 psi ranges
Repeatability: ± 0.1%FSO, ± 0.2% FSO for 500, 750, 1,000 psi ranges
Configuration: Four-arm bonded foil Wheatstone bridge strain gage
Bridge Resistance: Input: 345 Ohms minimum Output: 350 Ohms ± 10%
Over Pressure: 2X FSO or 35,000 psi, (whichever is less)
Zero Balance Adjustment Range: ±5% FSO
Insulation Resistance: 1000 megohms @ 50 Vdc
Internal Shunt Calibration (R-Cal): 80% FSO ± 0.5%



Temperature & Mechanical Characteristics



Max Diaphragm Temperature: 1000ºF (538ºC)
Zero Shift (due to temperature change): 30 psi/100ºF Typical (54 psi/100ºC)
Electronics Operating Temperature: 250ºF (121ºC)
Zero Shift (Due to Temperature Change): ± 0.01% FS/oF max (± 0.02% FS/oC max)
Sensitivity Shift (Due to Temperature Change): ± 0.005% FS/ºF max (± 0.01% FS/ºC max) ± 0.01% FS/ºF max (± 0.02% FS/ºC max) for 500, 750, 1,000 psi ranges
Mounting Torque: 500 inch/lbs. max
Standard Wetted Parts: Dymax® coated 15-5 PH SST

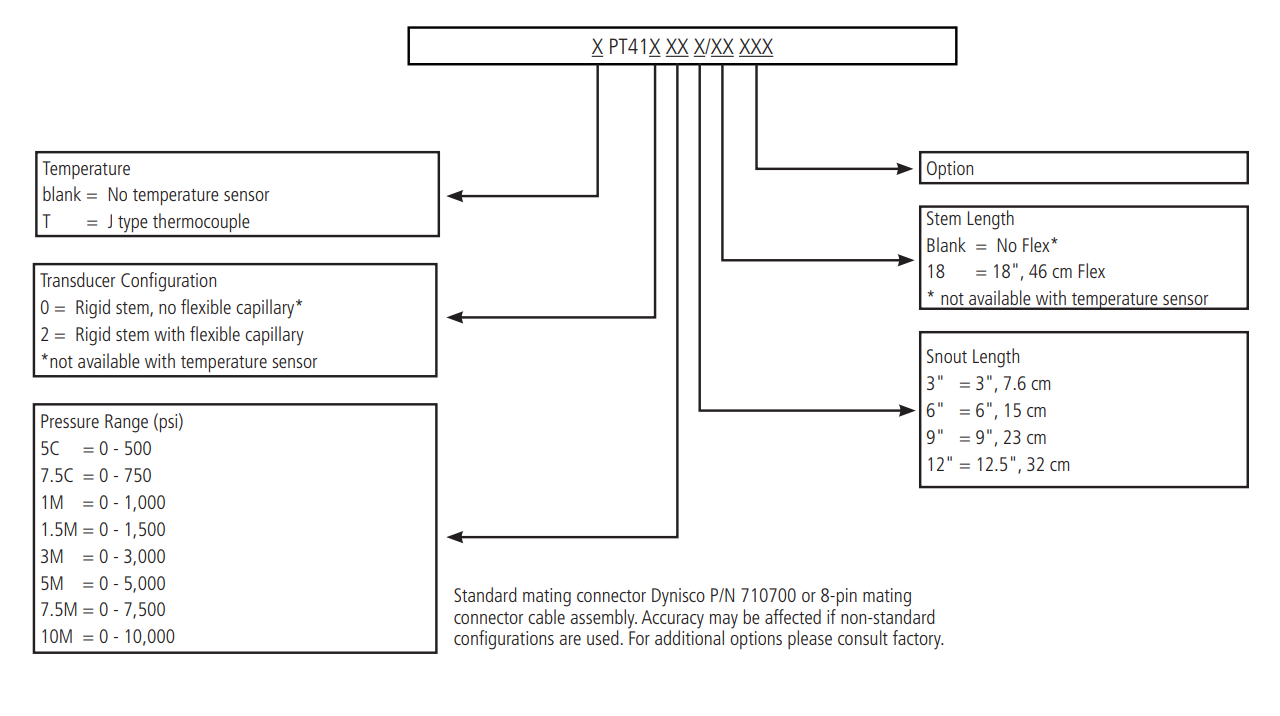

Ordering Guide for PT410/412





PT410 - Dimensions

All dimensions are inches (mm) unless otherwise specified.

PT412 - Dimensions

All dimensions are inches (mm) unless otherwise specified.

TPT412 - Dimensions

All dimensions are inches (mm) unless otherwise specified.
