PT415D - Washable  Melt pressure sensor with rigid stem and (NaK) filling.

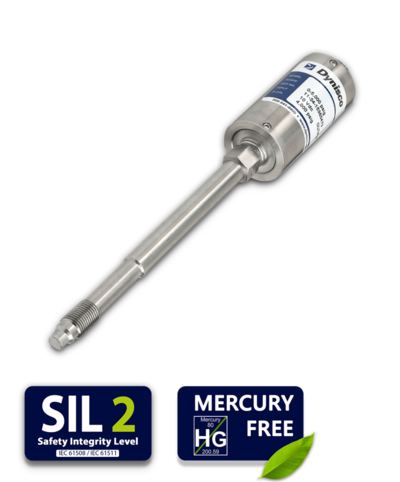

PT415D (NaK)

The PT415D pressure transmitter with accuracy of better than ±0.5% is the ideal choice for food and medical applications that require high accuracy and easy maintenance. It is a washable sensor with insulated wiring type 1/2-14 NPT or an optional 6-pin hermetically insulated bendix connector. It uses a special Inconel 718 membrane and a heat-resistant, mercury-free NaK filling with a high accuracy of 0.5% of the range with excellent repeatability and reliability. Meets FDA and USDA hygiene regulations and requirements.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

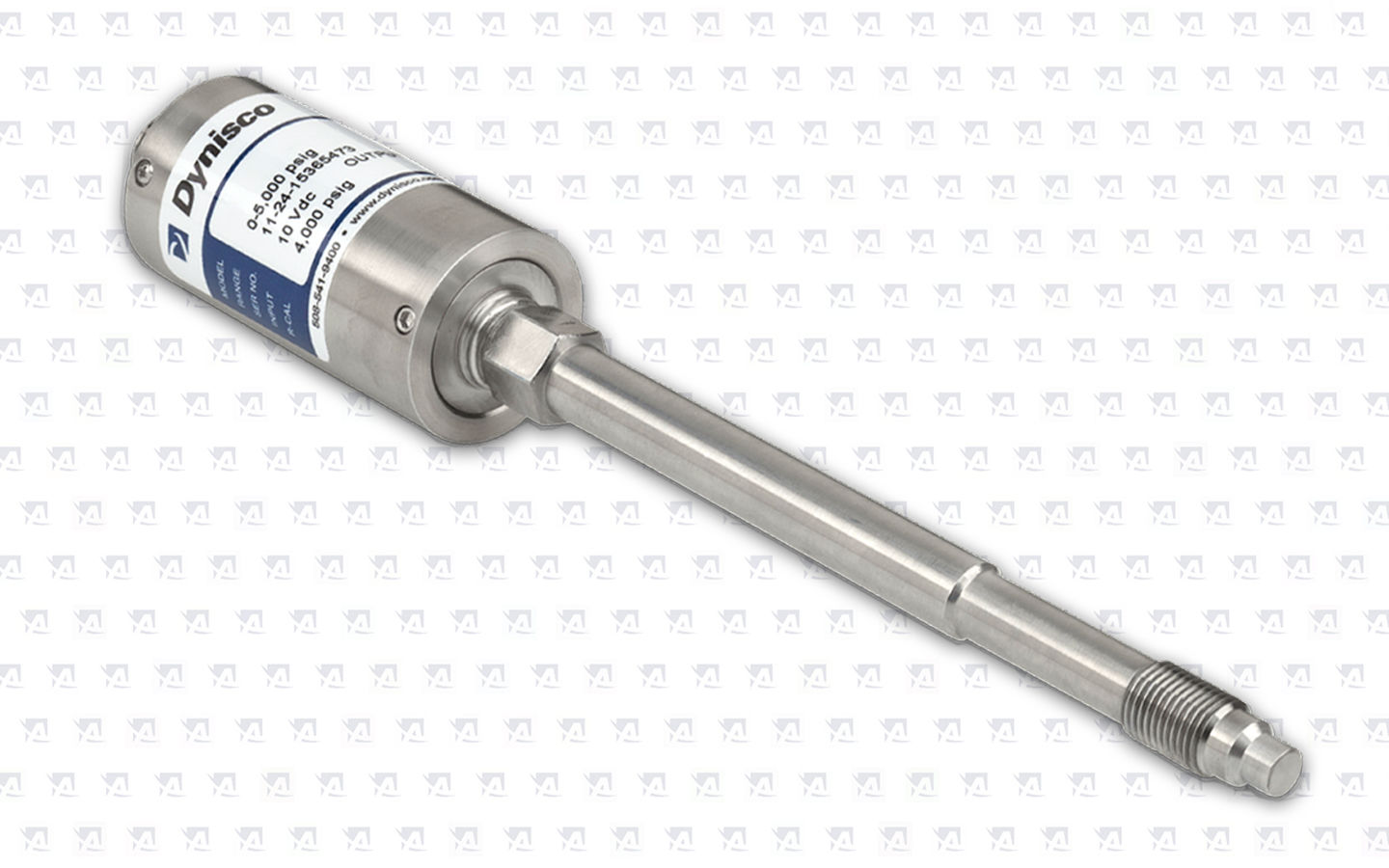

PT 415D - Melt pressure sensor in a design with a fixed stem

PT 415D - Melt pressure sensor in a design with a fixed stem

Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.

Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.

Adjusting screws - used to adjust the zero and upper range of the sensor

Adjusting screws - used to adjust the zero and upper range of the sensor

Sensor terminal and compatible cable connector

Sensor terminal and compatible cable connector

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco Configuration Code:

Your personal data will be processed according to Terms of personal data processing..

Food Extrusion Pressure Transducer

Our pressure sensors offer efficient, accurate, and durable solutions for reliable and safe pressure measurement. These sensors are used in a variety of industrial areas, where they monitor and measure the pressure of molten materials, ensuring optimal operation of production processes. Due to their resistance to high temperatures and pressures, which are typical for these applications, they represent a suitable choice for diverse uses. When selecting a sensor, it is important to consider the specific requirements of your application, such as temperature range, pressure range, and materials with which the sensor will interact. The correct choice of sensor guarantees reliable and accurate results and a long service life of the device without any problems. Installing the sensor into the mounting hole of the production line is simple.
However, if you have doubts about the proper installation, do not hesitate to contact our technicians. We are ready to provide support and offer the ideal solution for your application.

PT415D Pressure Sensors - With rigid stem

Rigid Stem pressure sensors are easily installed into the mounting hole of the production line, ensuring a simple and robust design that is suitable for applications where the sensor is not exposed to radiant heat from the line and the electronics are not subjected to extreme temperatures. We do not recommend installing these sensors in a vertical position above the line (12 o'clock position), as radiant heat can negatively affect the sensor's electronics lifespan. In such cases, we recommend using a sensor design with a flexible capillary, which allows the electronics to be diverted away from the radiant heat, ensuring a long sensor life. The main advantages of this type of sensor include resistance to impacts and vibrations, enabling them to withstand mechanical stress, which increases their lifespan and reduces the need for maintenance. They also feature high accuracy, ensured by quality materials and advanced measurement technology, which is crucial for efficient process control.

Performance Characteristics

Outputs: 3.33 mV/V ± 2.0%
Input Voltage: 10 Vdc recommended, 12 Vdc maximum
Accuracy: ±0.5% FSO
Repeatability: ±0.2% FSO
Configuration: Four-arm bonded foil Wheatstone bridge strain gage
Bridge Resistance: Input: 345 Ohms minimum Output: 350 Ohms ± 10%
Over Pressure: 2X FSO or 35,000 psi, (whichever is less)
Zero Balance Adjustment Range: ±5% FSO
Insulation Resistance: 1000 megohms @ 50 Vdc
Internal Shunt Calibration (R-Cal): 80% FSO ± 0.5%
Weight: 2 lbs.


Temperature & Mechanical Characteristics


Max Diaphragm Temperature: 750°F (400°C)
Zero Shift (due to temperature change): 15 psi/100°F Typical (27 psi/100°C)
Electronics Operating Temperature: 250ºF (121ºC)
Zero Shift (due to temperature change): ±0.01% full scale/°F maximum (±0.02% full scale/°C)
Span Shift (due to temperature change): ±0.005% full scale/°F maximum (±0.01% full scale/°C maximum)
±0.01%/°F maximum 500, 750, 1,000 psi (±0.02% full scale/°C maximum)
Mounting Torque: 500 inch/lbs. max
Standard Wetted Parts: Dymax® coated 15-5 PH SST

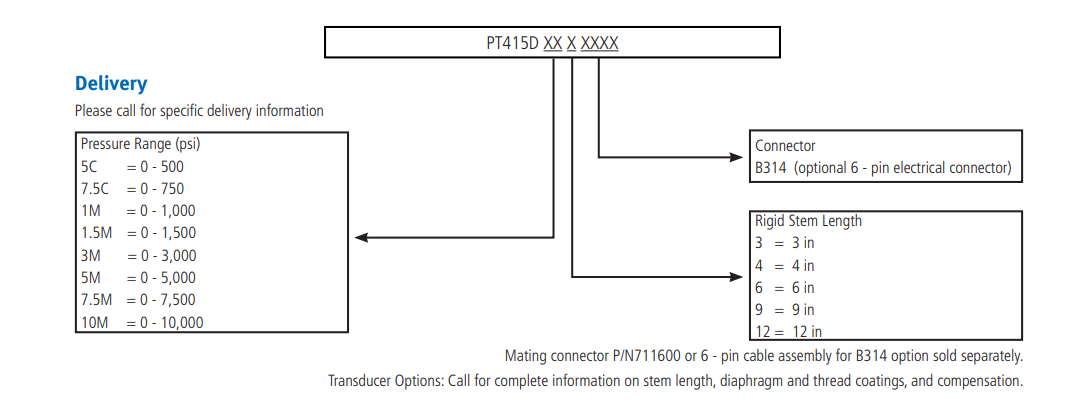

Ordering Guide for PT415D Series

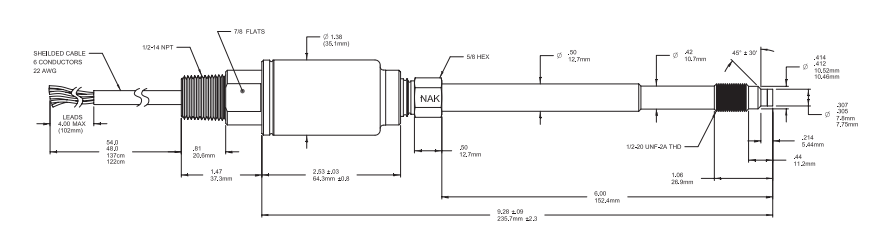

PT415D - Dimensions

All dimensions are inches (mm) unless otherwise specified.
