Mercury Free Series

PT4196 - Melt pressure sensor with 0-10 Vdc output signal and mercury-free filling.

PT4196 (Oil) 0-10 Vdc

The PT4196 is a ± 0.5% accuracy sensor ideal for applications in the food and pharmaceutical industries requiring easy installation, repeatability and reliability. The alternative oil fill for the food industry meets the requirements of the USDA and the FDA.
The PT4196 provides a standard 0-10 Vdc signal that is designed to work with DCS and PLC. Optional thermocouples or RTD configurations are also available to provide melt temperature and pressure in one location at a time. PT4196 is equipped with a 1 / 2-20 UNF thread for easy installation in standard mounting holes.

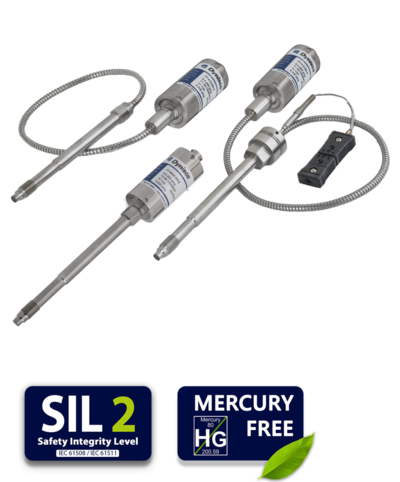

Melt pressure sensor in a design with a fixed stem

Melt pressure sensor in a design with a fixed stem

Melt pressure sensor in a design with a fleaxible capillary

Melt pressure sensor in a design with a fleaxible capillary

 Melt pressure sensor in combined design with temperature sensor

Melt pressure sensor in combined design with temperature sensor

Melt pressure sensors series

Melt pressure sensors series

Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.

Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.

Sensor terminal and compatible cable connector

Sensor terminal and compatible cable connector

Adjusting screws - used to adjust the zero and upper range of the sensor

Adjusting screws - used to adjust the zero and upper range of the sensor

Detail - Bayonet cable connector Amphenol 6-PIN

Detail - Bayonet cable connector Amphenol 6-PIN

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

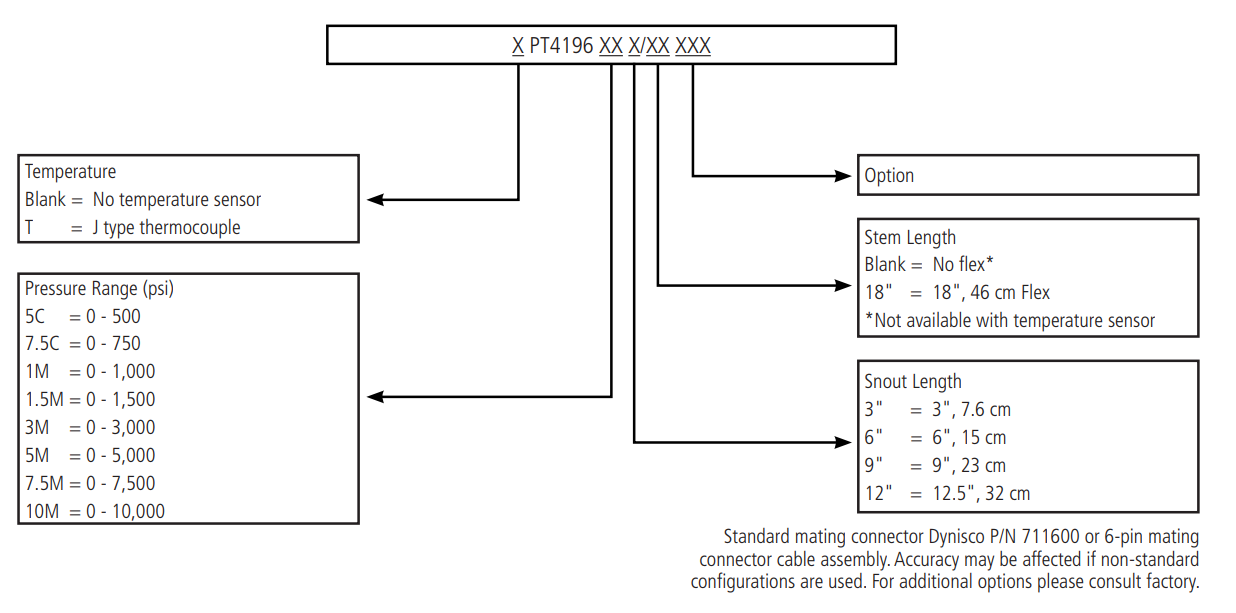

Dynisco Configuration Code:


PERFORMANCE CHARACTERISTICS



Pressure range:
0 - 10 000 psi
Accuracy:
± 0,5% FSO, (Včetně linearity, opakovatelnosti a hystereze)
Overload capacity:
2 x FSO (plného rozsahu snímače)
  Repeatability: ± 0.2% FSO (plného rozsahu snímače)
  Sensor diaphragm: Dymax® povlak 15-5 PH SST
  Sensor connection: 1/2"-20 UNF-2A nebo M18 x 1.5
  Mounting torque: 500 inch/lbs. maximum
  Sensor construction: Sensor with rigid stem
Sensor with rigid stem and flexible stem
Combined sensor with rigid stem, flexible stem and built-in temperature sensor

TEMPERATURE CHARACTERISTICS



Max. membrane temperature:
315°C
Zero shift (due to temperature):
Typical  65 psi/100°C
-------------------------------------------
------------------------------------------------------------------
  Max. sensor body temperature: 85°C
  Zero shift (due to temperature) ± 0.10% FS/°C max
  Displacement sensitivity (due to temperature) ± 0.04% FS/°C max

ELECTRICAL CHARACTERISTICS




Power supply:
16 - 36 Vdc
Output signal:
0 - 10 Vdc
Zero setting:
± 10% FSO
  Connector: 6 Bendix PIN connector
  Insulation resistance: 1000 megohms @ 50 Vdc
  Resistance calibration (R-Cal): 80% of duty. range ± 0.50% of the total range


Torque wrench Wera 20 - 100 Nm

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
