PT Series

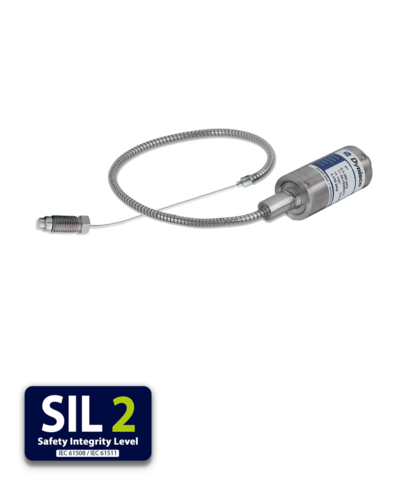

PT 435 - Pressure sensor with flexible and exposed capillary

PT 435 A

The PT435A series of pressure transducers is the ideal choice for measuring high-precision polymer melt pressure in places where there is not enough space for a conventional sensor. The exposed part of the capillary allows a bend with a small radius of 3 mm and thanks to the special construction of the tip with a freely rotating nut simplifies installation and allows the use of Dynisco sensors even where it is not possible to install a standard sensor with a fixed rod or flexible capillary.

Standard transducers are supplied with a DyMax® coated membrane to increase wear resistance and long life. The 8-pin Bendix connector is used for easy connection and disconnection.

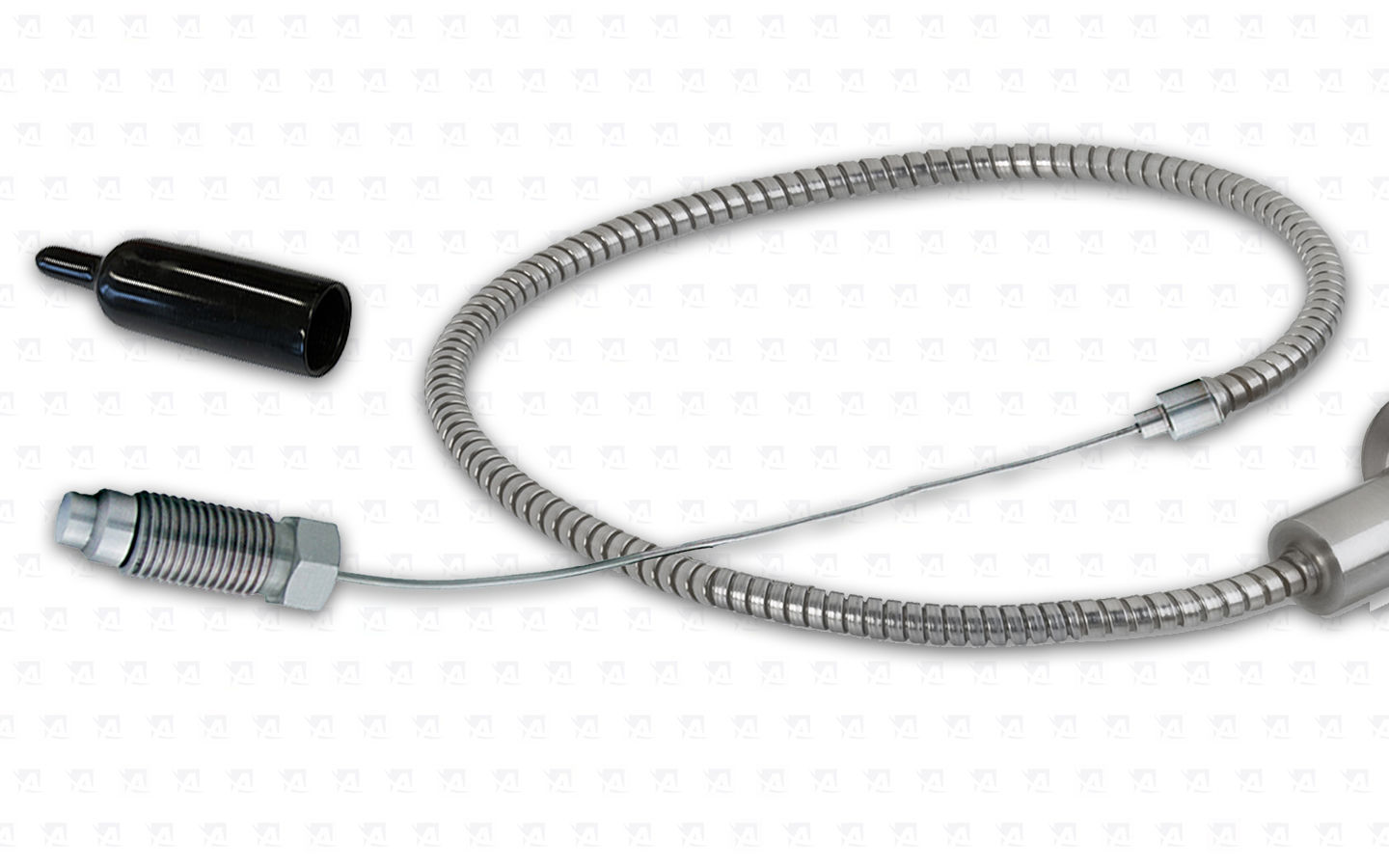

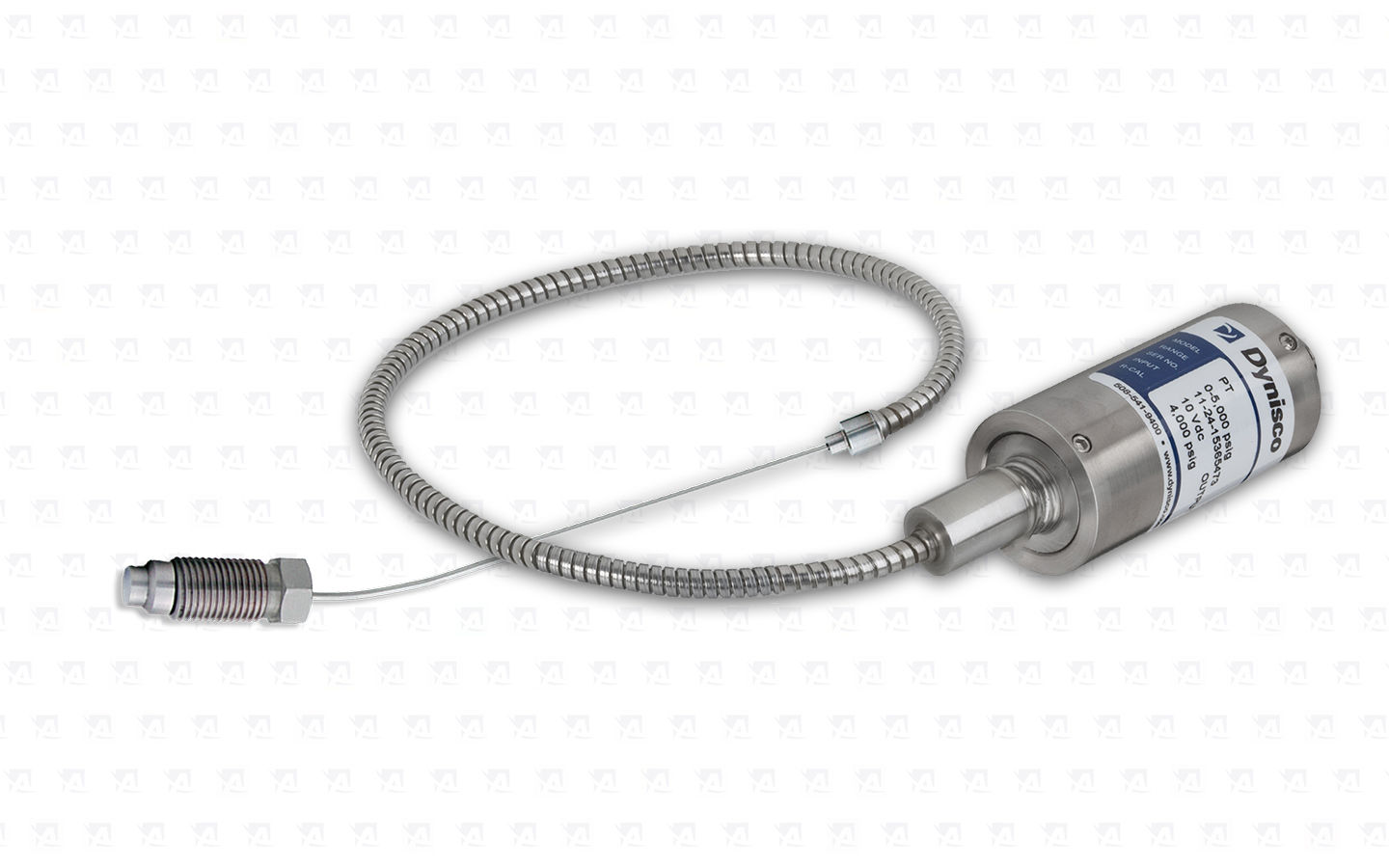

PT 435 - Melt pressure sensor in design with exposed capillary

PT 435 - Melt pressure sensor in design with exposed capillary

PT 435 - Melt pressure sensor in design with exposed capillary

PT 435 - Melt pressure sensor in design with exposed capillary

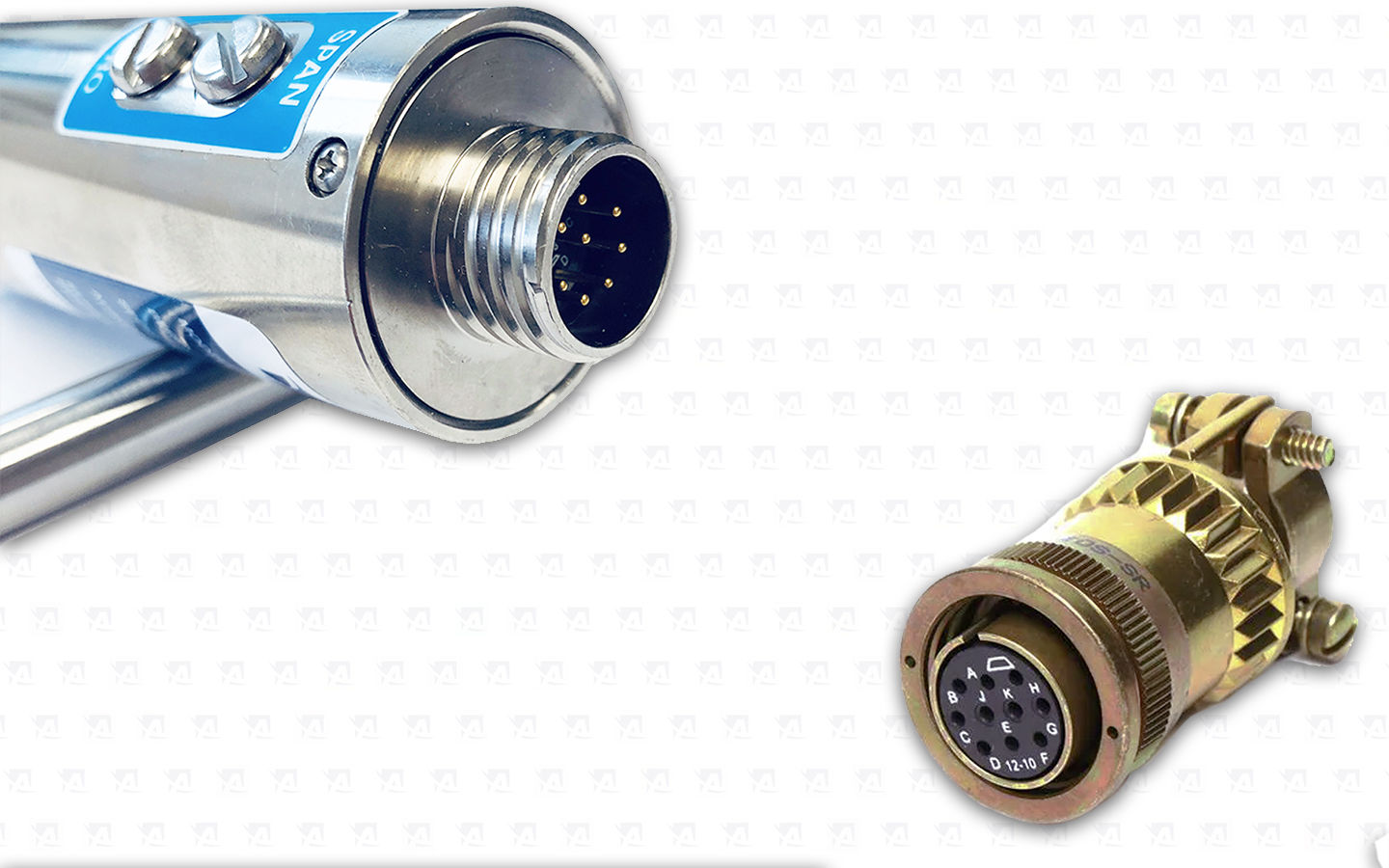

Koncovka snímače a kompatibilní kabelový konektor

Koncovka snímače a kompatibilní kabelový konektor

Adjusting screws - used to adjust the zero and upper range of the sensor

Adjusting screws - used to adjust the zero and upper range of the sensor

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco Configuration Code:


PERFORMANCE CHARACTERISTICS


Pressure range:
0 - 30 000 psi

Accuracy PT 435:
± 0.50% FSO, (Including linearity, repeatability and hysteresis)

Overload capacity:
2 X FSO or 35,000 psi, lower value applies
Repeatability: ± 0,2% FSO
Sensor diaphragm: Dymax® 15-5 PH SST coating
Sensor connection: 1/2"-20 UNF-2A
Mounting torque: 500 inch/lbs. maximum
Sensor construction: Sensor with flexible and exposed capillary

TEMPERATURE CHARACTERISTICS

Max. membrane temperature:
400°C
Zero shift (due to temperature):
maximum (45 psi/100°C)
-------------------------------------------
------------------------------------------------------------------
  Max. sensor body temperature: 121°C
  Zero shift (due to temperature) maximum  (±0.10% full scale/°C)
  Displacement sensitivity (due to temperature) maximum  (±0.04% full scale/°C)

ELECTRICAL CHARACTERISTICS


Power supply:
10 Vdc - 12 Vdc
Output signal:
 3.33 mV/V ± 2.0%
Zero setting:
± 10% FSO
  Connector: 6 Bendix PIN connector
  Insulation resistance: 1000 megohms @ 50 Vdc
  Resistance calibration (R-Cal): 80 % cel. rozsahu ± 0.50% celkového rozsahu




Torque wrench Wera 20 - 100 Nm

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.

1480 Panel Indicator

1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.

1490 Panel Indicator

Indicator 1490 is a universal device with one or two configurable alarms, optional linear process variable retransmission, optional pressure sensor power supply, and optional Modbus communication.

UPR 900 Panel Indicator

The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.

ATC990 Process Controller

The ATC 990 series controller is a time-tested product that has received a new design and new functions. Compared to classic features such as pressure, temperature and alarm setting options, these new models are enhanced with the ability to monitor and record parameters to a USB drive, the undeniable advantage is the large display and interactive environment when setting up the controller.

PPS1210 calibration pump

The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
