General Purpose Smart Pressure Sensors for Hazardous Locations

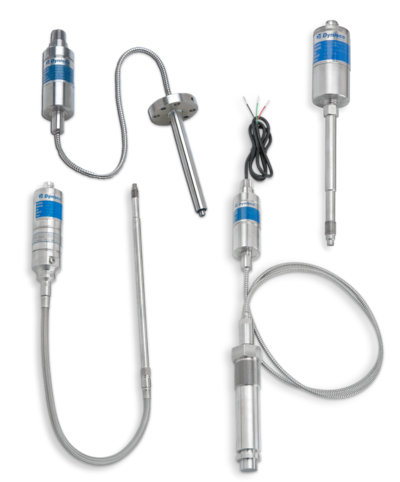

SPX 4-Series

All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

The SPX4 Series includes models SPX4222, SPX4622, SPX4352, SPX4672, SPX4232, and SPX4502.

⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.



SPX4502 Series


The Dynisco SPX 4-Series is a smart 4-20mA pressure transmitter designed for use in hazardous locations and are available with a variety of different process and electrical connections These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature.

Performance Characteristics


Output: 4 - 20 mA, with optional HART™
Input Voltage: 16 - 36 Vdc (Std); 16 - 30 Vdc (ATEX IS)
Accuracy:
Accuracy is defined as the combined error expressed as a percentage of full scale output with the specifications of: Electronics ambient temperature, capillary of <= 36"; DyMax coated 15-5 SST diaphragm; Best Straight Line (BSL) %FS, per ISA-37.1 Consult Factory for availability and specifications of other configurations

4222 ± 0.25% for pressure ranges >1,500 psi; ± 0.50% for pressure ranges < 1,500 psi 4232 ± 0.25% for pressure ranges >1,500 psi; ± 0.50% for pressure ranges < 1,500 psi 4352 ± 0.25% for pressure ranges > 1,500 psi; ± 0.50% for pressure ranges < 1,500 psi 4502 ± 0.50%
4622 ± 0.50%
4672 ± 0.50%

Repeatability: ±0.1%
Rangeability: 6:1 Turndown
Over Pressure: 2X FSO or 35,000 psi,whichever is less 1.2 X FSO 35,000 - 72,500 psi
Zero Balance Adjustment Range: -40% to +10%; -80% to 20% for FSP < 500 psi
Load Resistance 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc
Electronics Ambient Temperature: 70°F (20°C)
Electronics Operating Temperature: -20 to 185°F (-29 to 85°C)
Diaphragm Temperature: 750°F (400°C) max [SPX4502 model limited to 600°F (315°C)]
Electronics Compenstated Temperature Range:   0 to 150°F (-18 to 65°C)
Zero Shift (Electronics Temp Change): 4222: 0.01% F.S./°F max (0.02% F.S./°C max)
4232: 0.01% F.S./°F max (0.02% F.S./°C max)
4352: 0.01% F.S./°F max (0.02% F.S./°C max)
4502: 0.01% F.S./°F max (0.02% F.S./°C max)
4622: 0.05% F.S./°F max (0.10% F.S./°C max)
4672: 0.05% F.S./°F max (0.10% F.S./°C max
Span Shift (Electronics Temp Change): 4222: 0.01% F.S./°F max (0.02% F.S./°C max)
4232: 0.01% F.S./°F max (0.02% F.S./°C max)
4352: 0.01% F.S./°F max (0.02% F.S./°C max)
4502: 0.01% F.S./°F max (0.02% F.S./°C max)
4622: 0.02% F.S./°F max (0.04% F.S./°C max)
4672: 0.02% F.S./°F max (0.04% F.S./°C max)
Zero Shift (Snout Temp Change): 4222: 15 psi/100°F (27 psi/100°C) typical
4232: 15 psi/100°F (27 psi/100°C) typical
4352: 15 psi/100°F (27 psi/100°C) typical
4502: 1 psi/100°F (from 75-450°F); 2 psi/100°F (from 450-600°F) typical
4622: 25 psi/100°F (45 psi/100°C) typical
4672: 25 psi/100°F (45 psi/100°C) typical

Mechanical Characteristics



Mounting Torque:

4222: 500 inch-lbf max
4232: 50 inch-lbf max
4352: 500 inch-lbf max
4502: 350 inch-lbf max
4622: 500 inch-lbf max
4672: 500 inch-lbf max

Standard Wetted Parts: DyMax coated 15-5 PH SST

Approvals & Certifications




ATEX/IECEx Intrinsically Safe
SIL 2 (pressure output) & PL'c' (relay output)
Additional approvals available (consult factory)

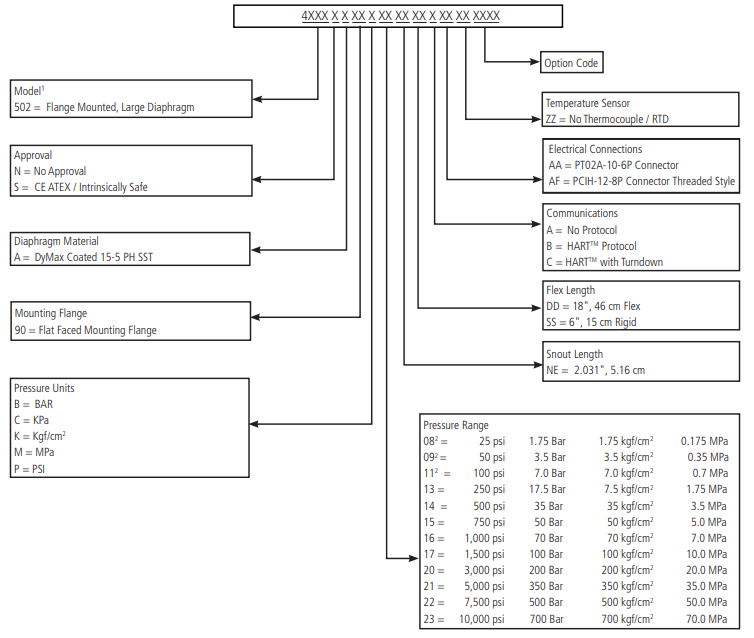

Ordering Guide for Models SPX4502

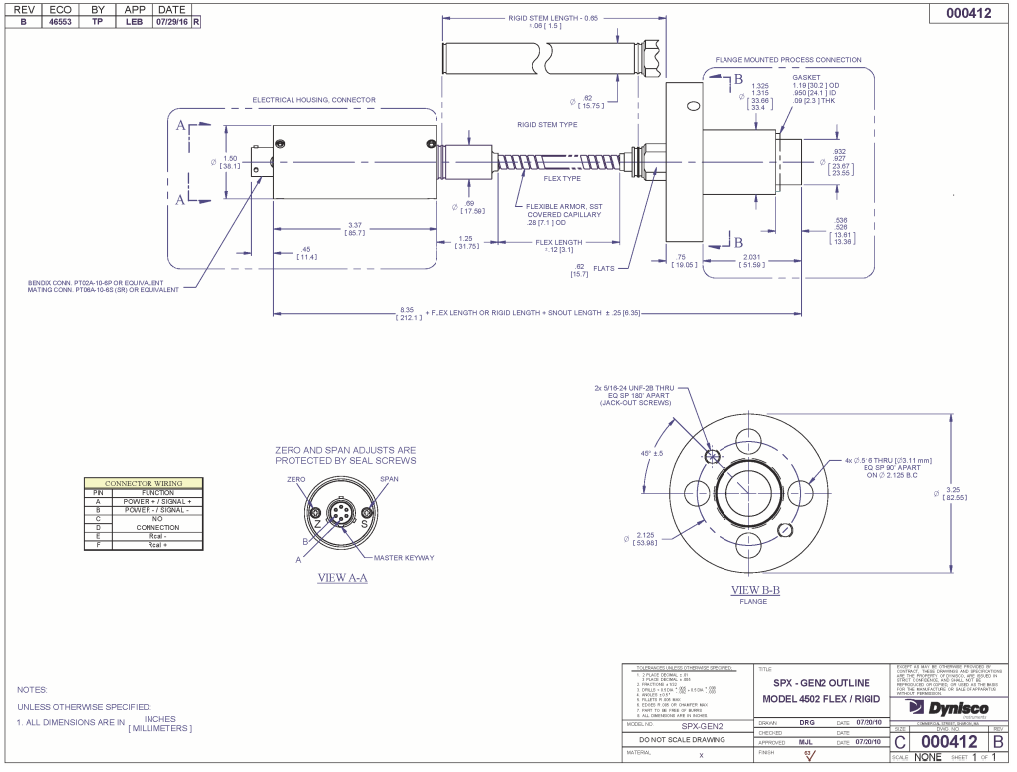

SPX4502 Series - Dimensions

All dimensions are inches (mm) unless otherwise specified.
