The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD configurations are available to provide melt temperature
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Dynisco SPX 2 Series Smart Pressure Sensor
Configure your own product, according to your requirements and needs. If you are not sure about the configuration, tell us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know, we will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have the necessary product the next day.

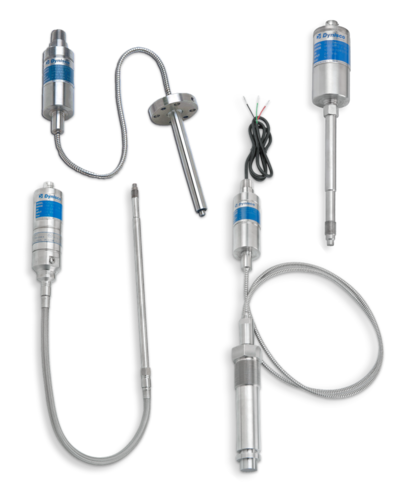

The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynaLarity™, a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections.

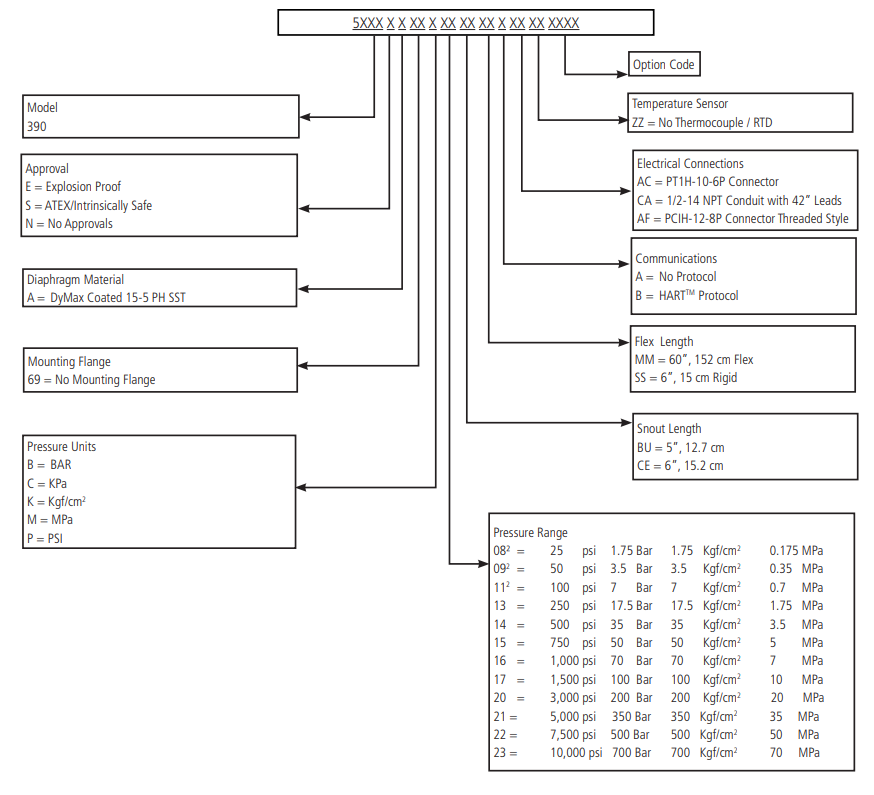

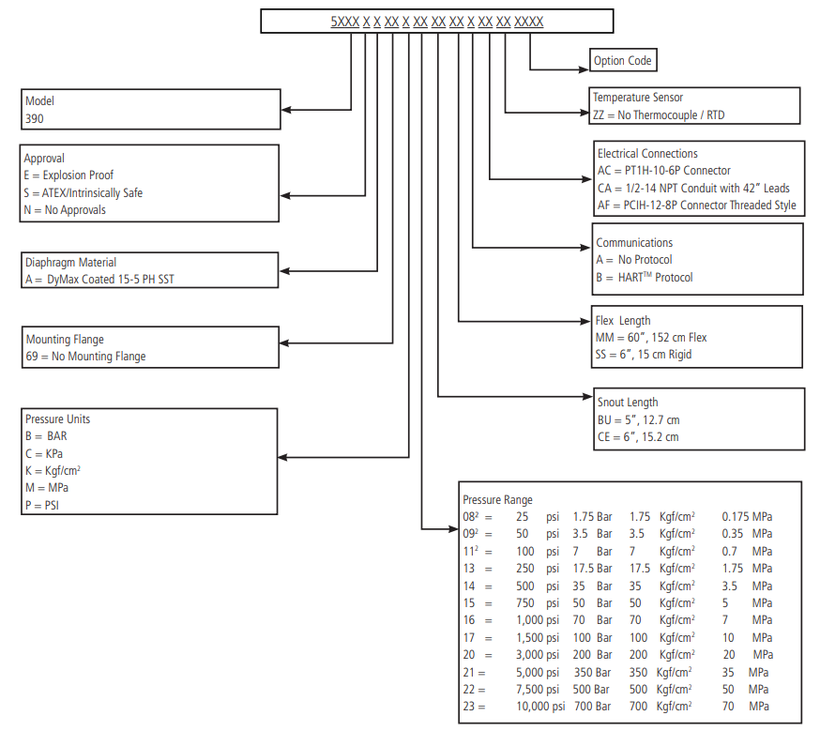

The SPX5 Series includes models SPX5342, SPX5343, SPX5344, SPX5390, SPX5391, and SPX5392.
⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

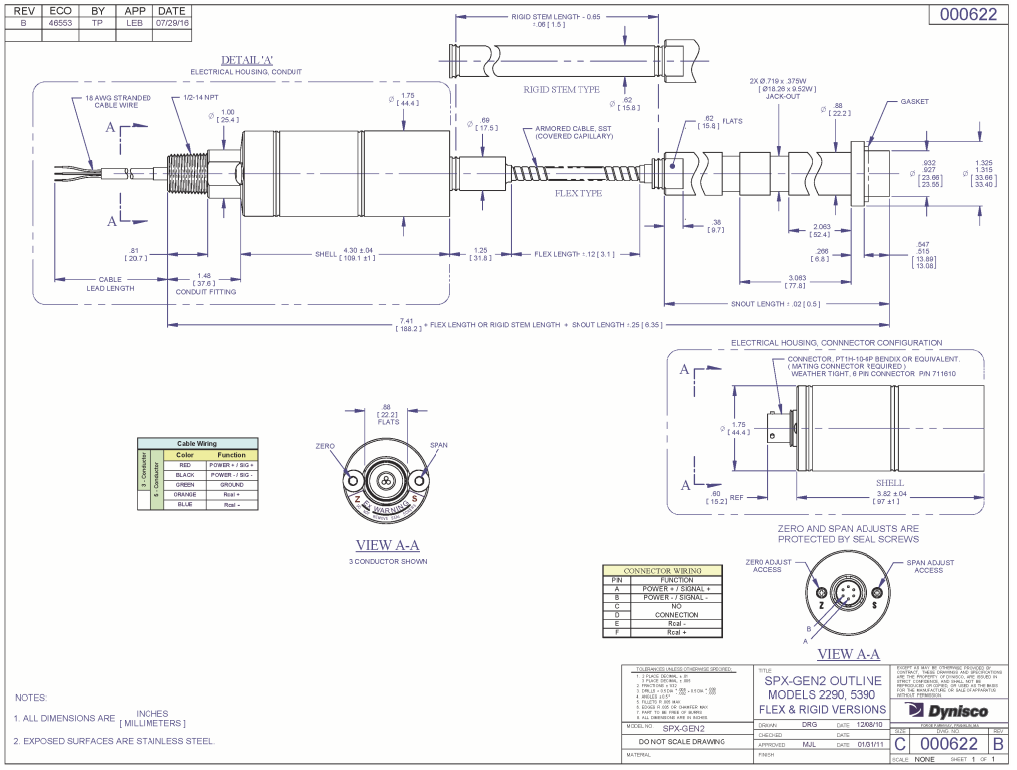

SPX5390 Series
The Dynisco SPX 5-Series is a smart 4-20mA pressure transmitter that includes DynalarirtyTM , a Dynisco innovation that uses an advanced algorithm that will linearize offsets due to process effects on the sensor. The SPX 5-Series is an all welded construction designed for use in hazardous locations and is available with a variety of process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices. Optional thermocouple or RTD config
Performance Characteristics
| Output: | 4 - 20 mA, with optional HART™ |
|---|---|
| Input Voltage: | 16 - 36 Vdc (Std); 16 - 30 Vdc (ATEX IS) |
| Accuracy: |
All Models ± 0.20% Accuracy is defined as the combined error expressed as a percentage of full scale output with the specifications of: Electronics ambient temperature, capillary of <= 36"; DyMax coated 15-5 SST diaphragm; Best Straight Line (BSL) %FS, per ISA-37.1 Consult Factory for availability and specifications of other configurations |
| Repeatability: | ±0.1% |
| Rangeability: | 3:1 Turndown |
| Over Pressure: | 2X FSO or 35,000 psi,whichever is less (5390, 5391, & 5392 1.5 x FSO for 10,000 psi) |
| Zero Balance Adjustment Range: | -40% to +10%; -80% to 20% for FSP < 500 psi |
| Load Resistance | 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc |
| Electronics Ambient Temperature: | 70°F (20°C) |
| Electronics Operating Temperature: | -20 to 185°F (-29 to 85°C) |
| Diaphragm Temperature: | 750°F (400°C) max [Models 5344, 5390, 5391, 5392 limited to 600°F (315°C)] |
| Electronics Compenstated Temperature Range: | 0 to 150°F (-18 to 65°C) |
| Zero Shift (Electronics Temp Change): | All Models: 0.01% F.S./°F max (0.02% F.S./°C max) |
| Span Shift (Electronics Temp Change): | All Models: 0.01% F.S./°F max (0.02% F.S./°C max) |
| Zero Shift (Snout Temp Change): |
5344/5390/5391/5392: 1 psi/100°F (from 75-450°F) typical 2 psi/100°F (from 450-600°F) typical 5342/5343: 15 psi/100°F (27 psi/100°C) typica |
| Mounting Torque: |
5342: 500 inch-lbf max |
|---|---|
| Standard Wetted Parts: | DyMax coated 15-5 PH SST |
| ATEC/IECEx Intrinsically Safe | |
|---|---|
| SIL 2 (pressure output) & PL'c' (relay output) | |
| FM & CSA Explosion Proof | |
| Additional approvals available (consult factory) |
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
