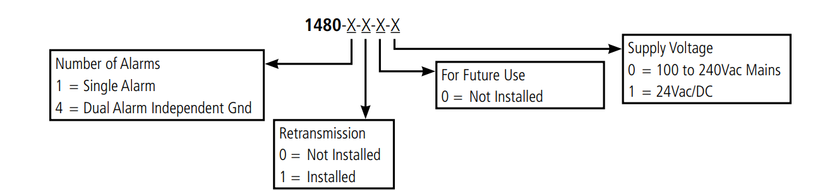

The 1480 is a Universal Pressure or Temperature Input Indicator with single or dual configurable alarms, as well as optional linear retransmission of displayed Process Variable. Ideal for use in Extrusion applications.
1480 Panel Indicator
1480 Panel Indicator
1480 Panel Indicator
1480 Panel Indicator
1480 Panel Indicator
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
The 1480 is a Universal Pressure or Temperature Input Indicator with single or dual configurable alarms, as well as optional linear retransmission of displayed Process Variable. Ideal for use in Extrusion applications.
The device described has an Output Configuration of either one or two relay outputs, and also has the option for linear retransmission. It also has two alarms, both for high and low process values, and the hysteresis can be adjusted. The device can display the Process variable, maximum value, and minimum value, and has a Human Interface consisting of three buttons. The display is a 5-digit, 13mm high red display, and there are two alarm indicators.
Universal process panel indicator is a device used for displaying various process variables, such as temperature, pressure, and others. This indicator is usually mounted on a panel of the device where monitoring and control of the process are carried out.
The universal process panel indicator allows the user to set the input signal that is to be displayed. A value for exceeding a certain level that activates an alarm can also be set.
These indicators are usually equipped with various functions, such as output configuration, alarm settings, display of maximum and minimum values, and others. This allows the user to customize the indicator to the specific needs and requirements of the given process.

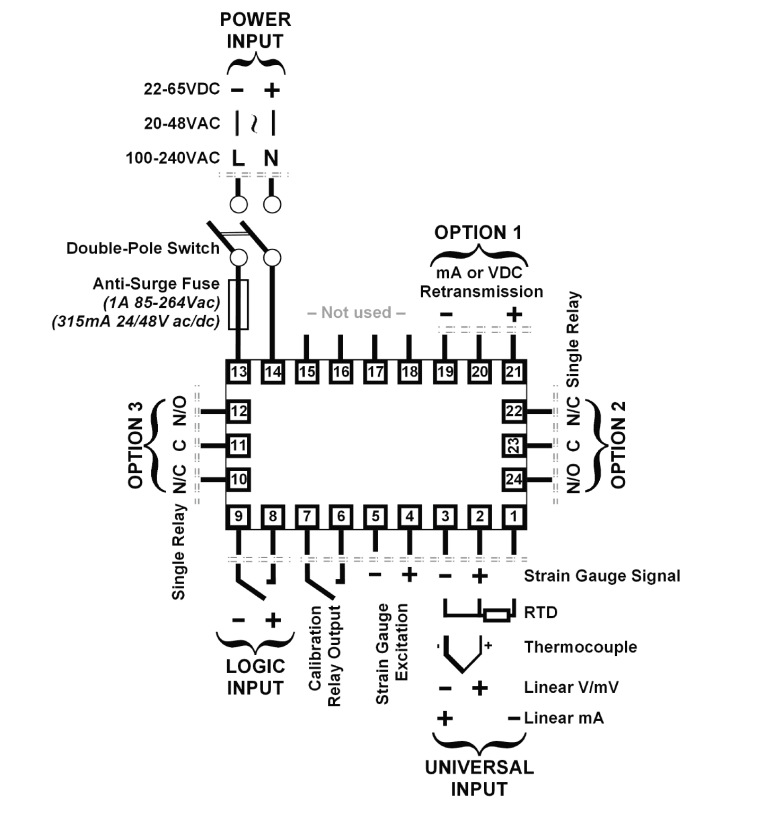

| Output Configuration: | 1 or 2 relay outputs, with optional linear retransmission |
|---|---|
| Alarms: | 2 process high / low adjustable hysteresis |
| Viewable Values: | Process variable, maximum value, minimum value |
| Legends: | C°/F° LED |
| Human Interface: | 3 button operation, 4 digit 13mm high display red, (color change on alarm), plus 1 set-up, 2 alarm indicator |
| Input Thermocouple: | J, K, C, R, S, T, B, L, N |
| RTD: | 3 Wire PT100, 50Ω per lead maximum (balanced) |
| Strain Gauge: | 350 Ohm Strain Gauge |
| Bridge Connection: | 4 or 6 wire (6 to use internal shunt cal switch) |
| Bridge Excitation: | 10V ±7% |
| Bridge Sensitivity: | 1.4 to 4 mV/V |
| Input Signal Span: | -25 to 125% full scale (approximately -10mV to +50mV) Calibration switch between CAL2 & CAL1 terminals |
| Shunt Value: | From 40 to 100% |
| Display Scalable: | -1999 to 99999, with adjustable decimal point |
| DC Linear: | 0 to 20mA, 4 to 20mA, 0 to 50mV, 10 to 50mV, 0 to 5V, 1 to 5V, 0 to 10V, 2 to 10V |
| Input Impedance: | >10MΩ for Thermocouple and mV ranges, 47KΩ for V ranges and 5Ω for mA ranges |
| Accuracy: | ±0.1% of input range ±1LSD (T/C CJC better than 1°C) |
| Sampling: | 4 per second, 14 bit resolution approximately (250ms sample time) |
| Sensor Break Detection: | <2 seconds (except zero based DC ranges), high alarms activate for T/C, RTD and mV ranges, low alarms activate for mA or V ranges |
| Strain Gauge Sensor: | Set to eithe high or low alarm |
| Alarm Relays: | Contacts Single Relay SPDT 2 Amp resistive at 240V AC, >500,000 operations. Latching or non-latching. Duel Relay SPST 2 Amp resistive at 240V >200,000 operations. Reinforced safety isolation from inputs and other outputs |
|---|---|
DC Linear Retrainsmit |
|
| Outputs: | 0 to 20mA, 4 to 20mA into 500Ω max, 0 to 10V, 2 to 10V, 0 to 5V into 500Ω min. Accuracy ±0.25% at 250Ω (degrades linearly to 0.5% for increasing burden to specified limits) |
| Logic Input: | External reset of latched relay, stored alarm 1 elapsed time, stored min/max PV values or initiate tare function. Action occurs on high (3 to 5VDC) to low <0.8VDC, or Open to Closed transition |
| Temperature & RH: | 0 to 55°C (-20 to 80°C storage), 20 to 95% RH non-condensing |
|---|---|
| Power Supply: | 110 to 240V ±10% (90 to 264V) 50/60Hz 7.5VA (optional 20 to 48V AC 7.5VA/22 to 65V DC 5 watts) |
| Front Panel Protection Standards: | IEC IP66 (Behind panel protection is IP20) CE. Pollution Degree 2, Installation Category II |
