Melt temperature sensor with elliptical tip, adjustable polymer flow orientation

DYMT

The Melt Thermocouple Series DYMT is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. The blade style thermocouples feature a unique blade design which reduces friction in the melt stream, the special rotation design of the blade allows low friction installation. The Melt Thermocouple Series DYMT is also available with dual TC or RTD.

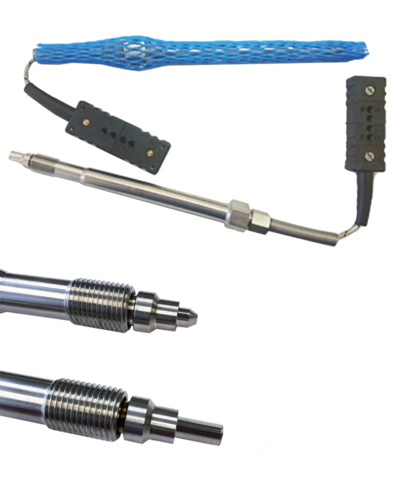

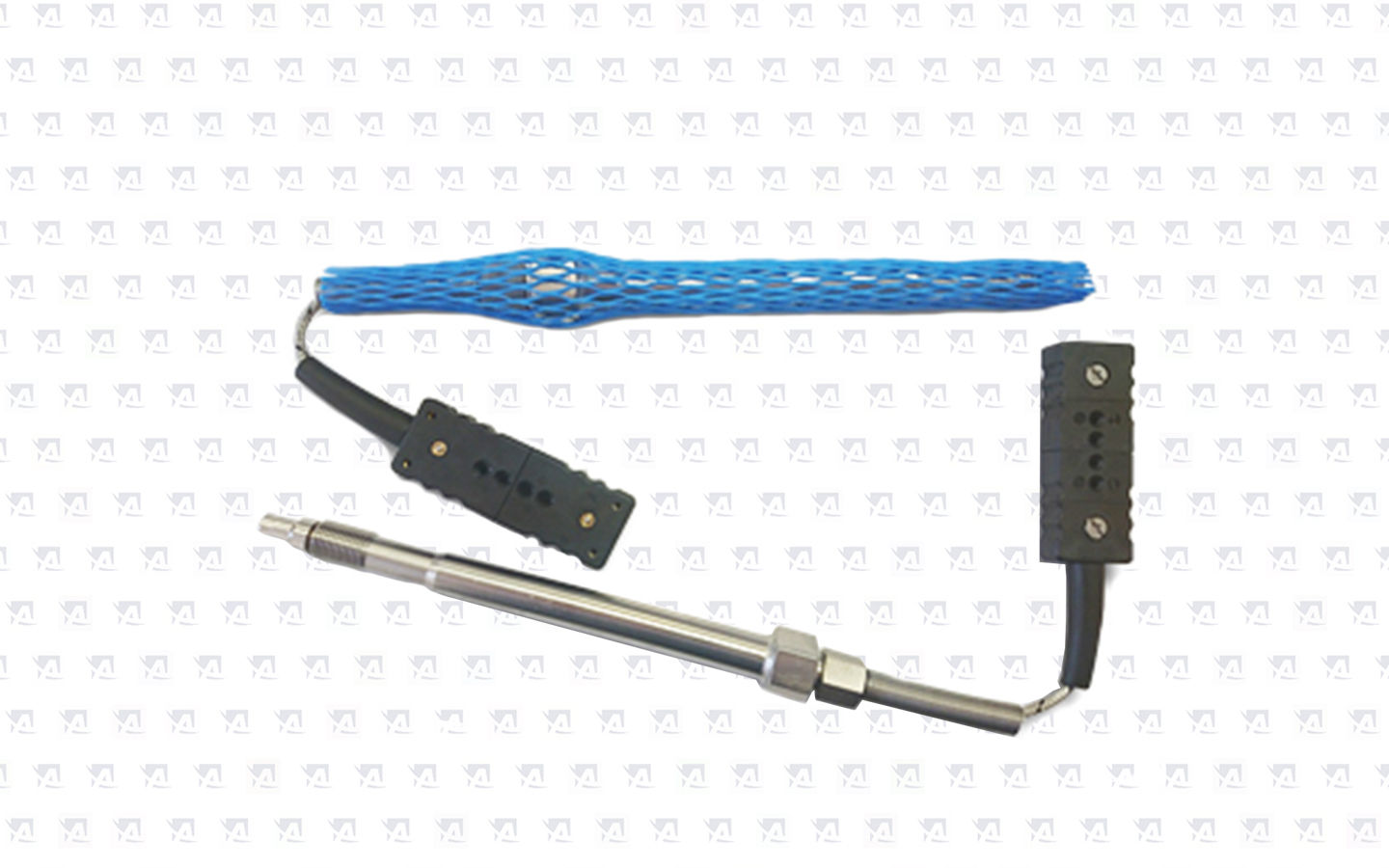

DYMT temperature sensors

DYMT temperature sensors

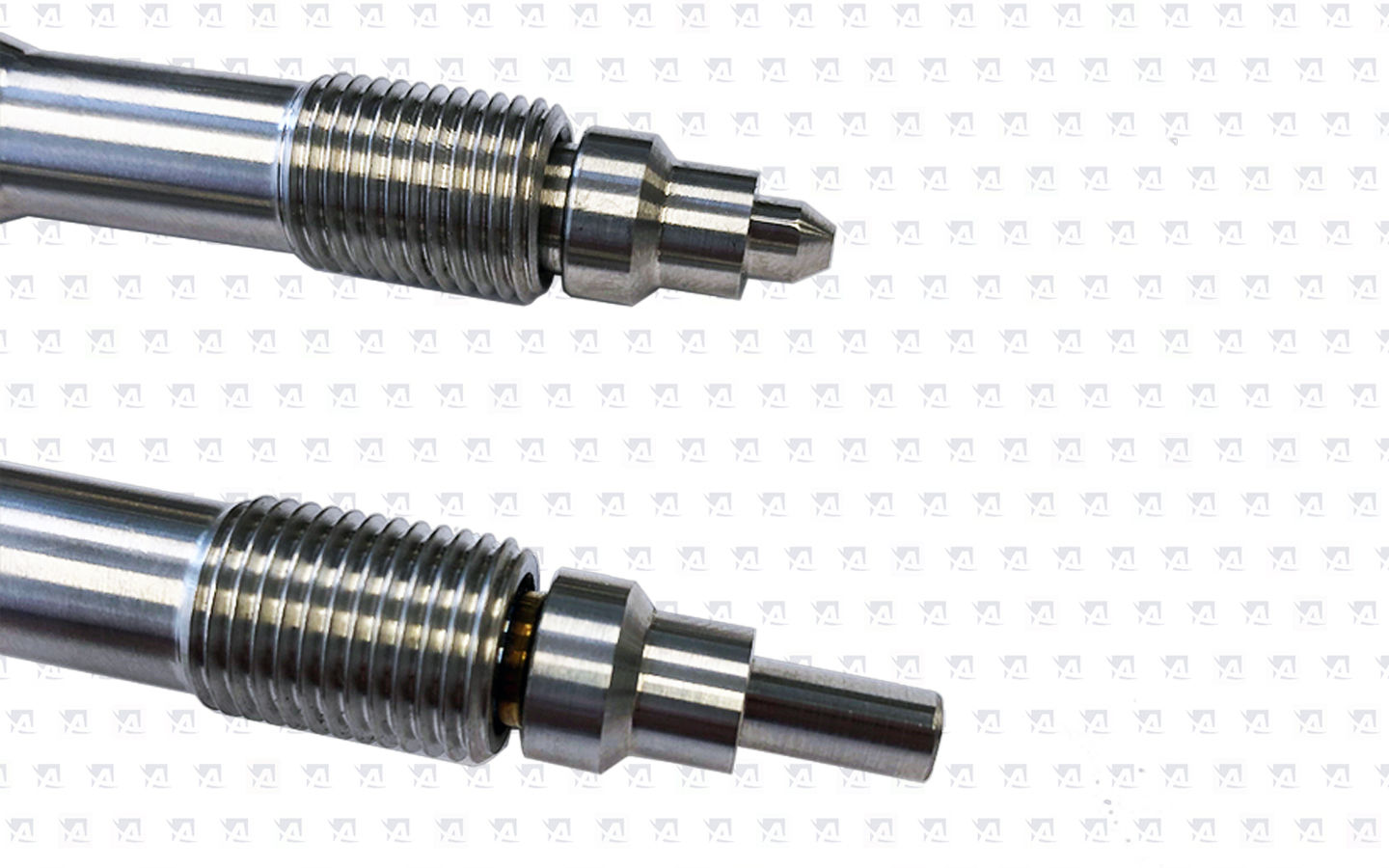

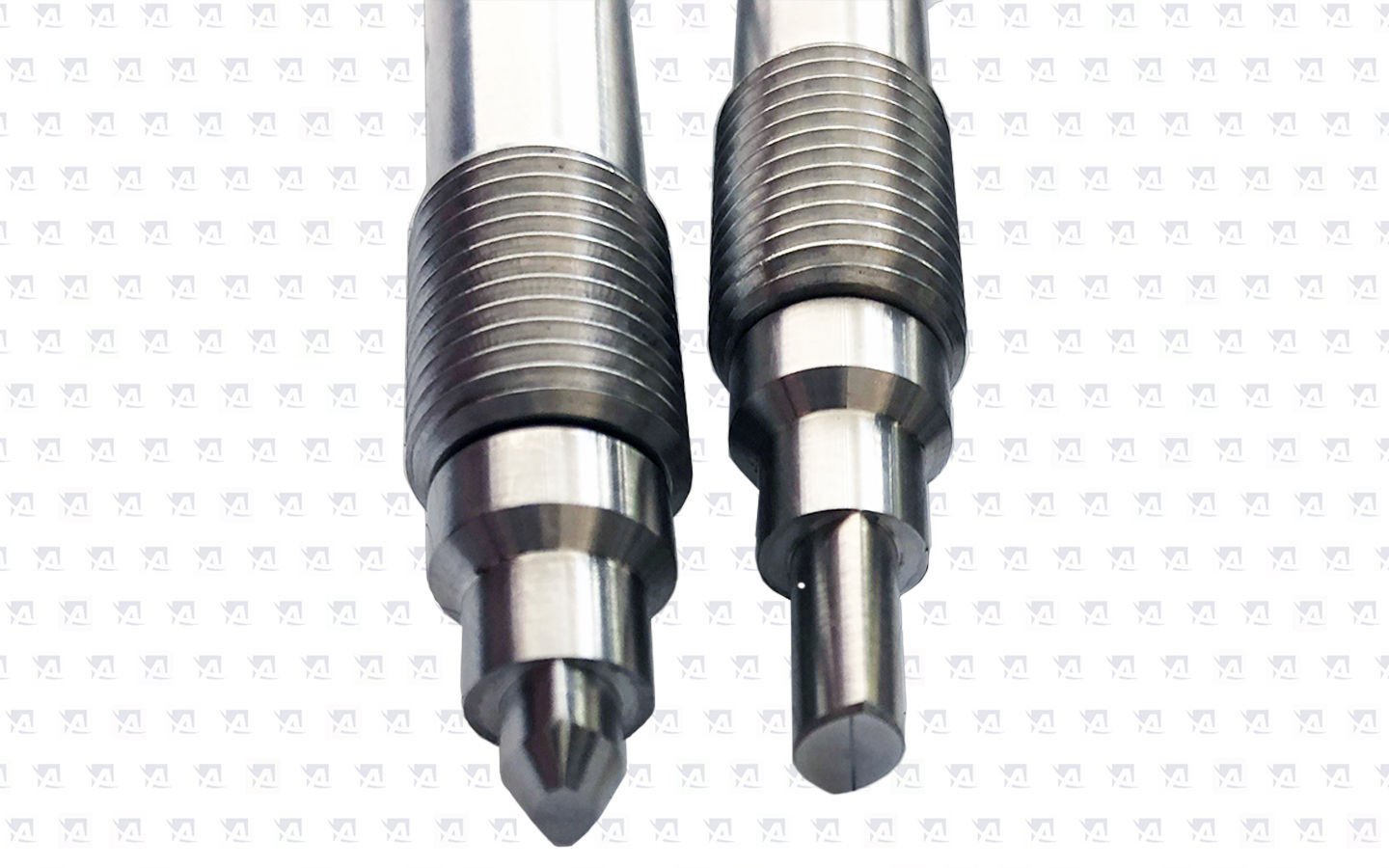

Detail of DYMT elliptical tips

Detail of DYMT elliptical tips

Detail of DYMT elliptical tips

Detail of DYMT elliptical tips

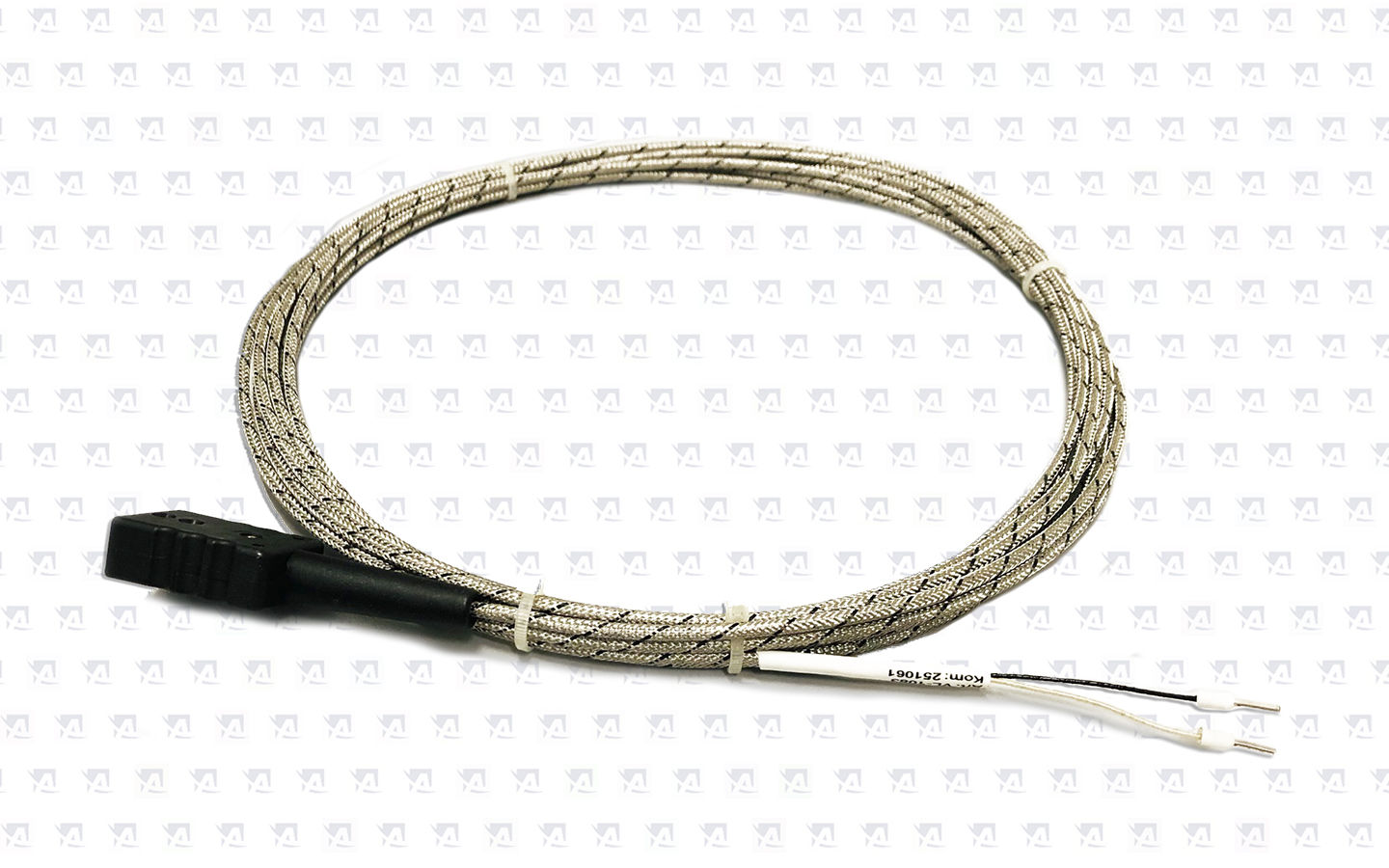

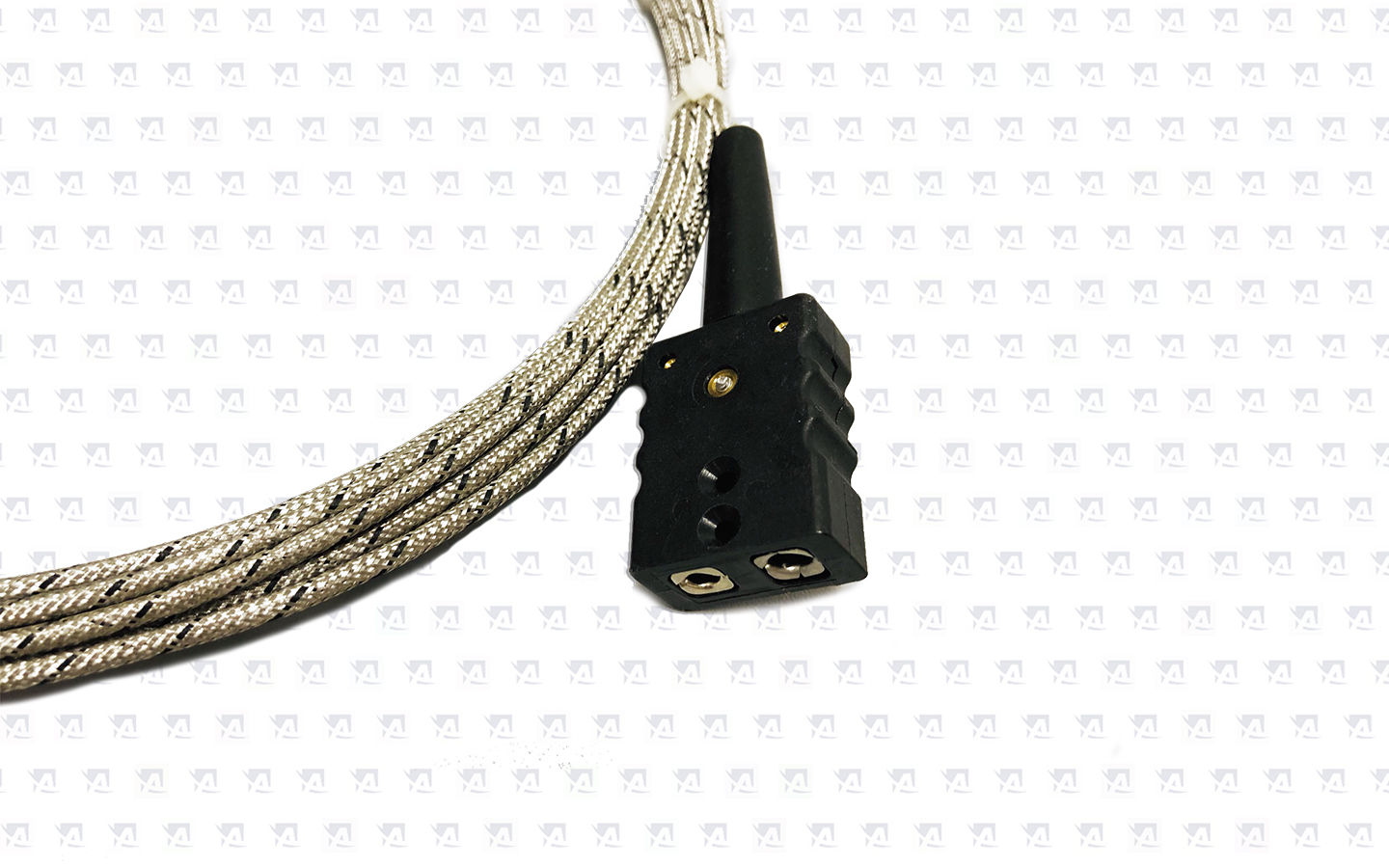

Thermocouple cable with standard 2-pin connector

Thermocouple cable with standard 2-pin connector

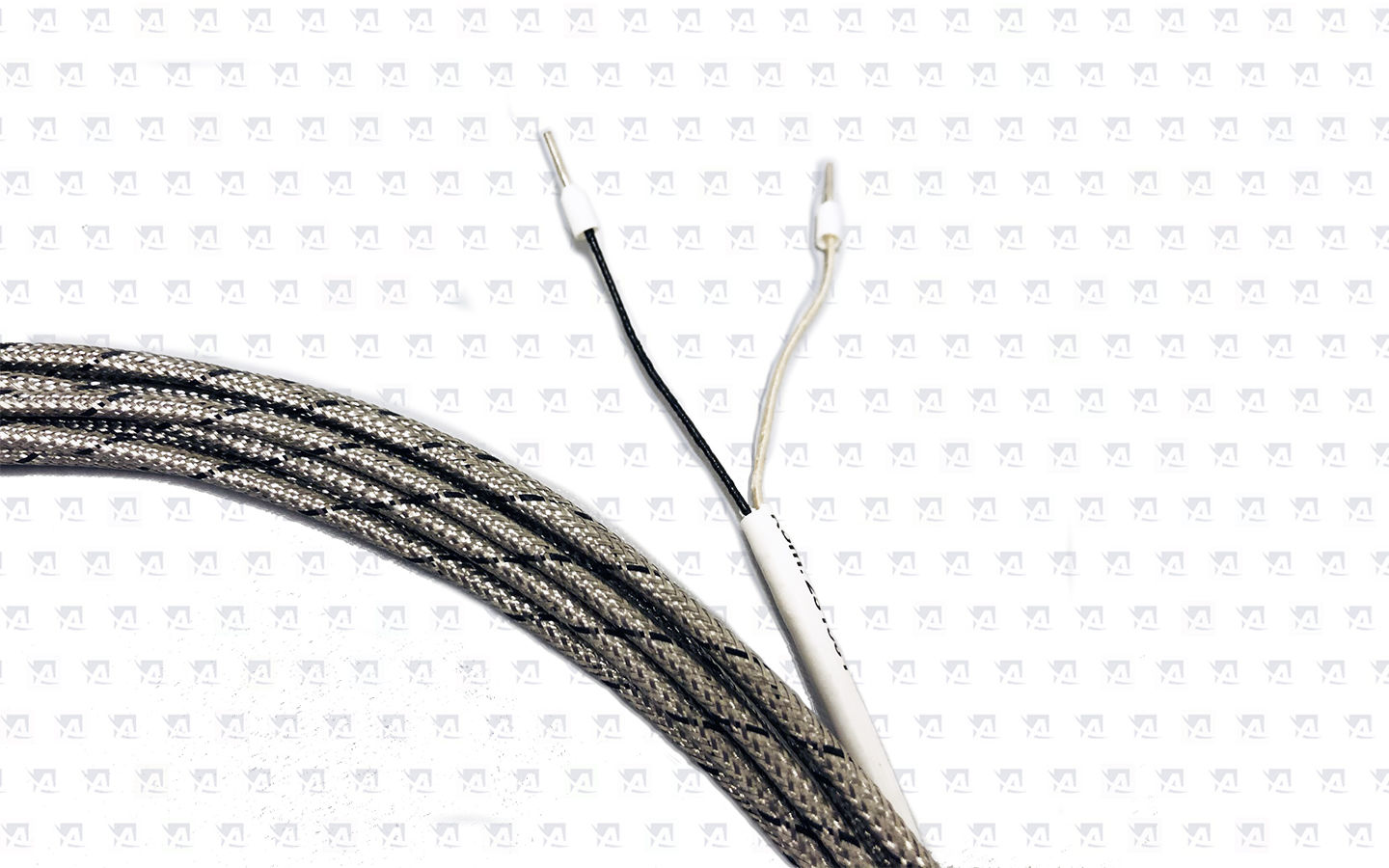

Thermocouple cable

Thermocouple cable

Thermocouple cable

Thermocouple cable

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco Configuration Code:

Your personal data will be processed according to Terms of personal data processing..

Reliable and safe temperature measurement system

Melt Temperature Probe Series DYMT


The Melt Thermocouple Series DYMT is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. The blade style thermocouples feature a unique blade design which reduces friction in the melt stream, the special rotation design of the blade allows low friction installation. The Melt Thermocouple Series DYMT is also available with dual TC or RTD.



Technical Data / Operating Data


Thread: 1/2"-20 UNF, M18 x 1.5 or M14 x 1.5
Stem Length: 152 mm standard, others on request
Blade Length: 2.5 - 30 mm, on request
Material in Contact with Media: 15-5 Mat. No 1.4545



Electrical Characteristics


Thermocouple: J, K, L, other types on request
RTD: wireable as 2-, 3- or 4-wire
Connector: IEC-Connector for Thermocouples, DIN-Connector for RTD
Pipe Connection: Straight or 90° angled
Cable Length: 75 mm, others on request

Maximum mounting torque 40 Nm! Under the following conditions: - Avoid bending during screw into the mounting hole - During screw out of the outer tube, avoid torsion at the inner tube - Before mounting, ensure that the mounting hole is free from plastic residue


Ordering Guide for DYMT Series

DYMT - Dimensions

All dimensions are inches (mm) unless otherwise specified.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.

Temperature Controller 1496 Series

The 1496 series temperature controllers represent an economical solution for precise temperature control of the machine. Thanks to its DIN size and several output configurations, the controller is suitable for twin and single screw extruders, both for screw temperature zones and for adapter zones, together with heating / cooling for individual zones.
