Screenchangers

Hydraulic plate screen changer for filtration systems and polymer production - FSC

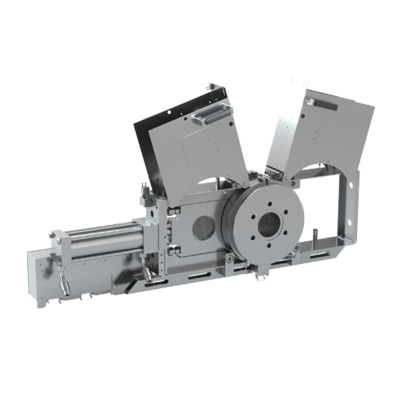

FSC - Hydraulic plate screen changer for filtration systems and polymer production

FSC screen changers from Maag are equipped with a pressure-adaptive sealing system as a standard. Thanks to this sealing system, the required sealing forces are adjusted to the actual melt pressure automatically. The narrow design is especially suited for being used in applications with thermally sensitive materials. Their solid and robust construction, available in all sizes and designs, ensures a reliable and leakfree filtration of molten polymers for many years. The hydraulically operated screen changer reliably guarantees the protection of melt pumps and mold gaps from damage and dirt.

Suitable for Compounding, Recycling, Extrusion, Masterbatch

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative MAAG products. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences.

If you need more information do not hesitate to contact us.

Configuration code

Your personal data will be processed according to Terms of personal data processing..

TECHNICAL DATA

  Throughput rate [kg/h] 90 – 3900
  Operation method kontinuierlich
  Required heating output [kw] 2,9 – 32,8
  Additional designs

Diverter Valve
Candle filters

  Filter surface [cm²] 16 – 1590
  Number of sieve cavities 2
  Screen diameter/length 45 to 300 mm
  Filtration area 16 cm2 to 707 cm2
  Mounting Compact mounting dimensions, all positions possible

APPLICATION FIELDS

  Flat films
  Foam films
  Blown films
  Plates
  Pipes
  Profiles
  Blown mouldings
  Fibres
  Granulation
  Compounding
  Recycling

OPTIONS

  PVC design
