Manual screen changer and plate screen changer for filtration solutions and extrusion processes - HSC

HSC - Manual screen changer and plate screen changer for filtration solutions and extrusion processes

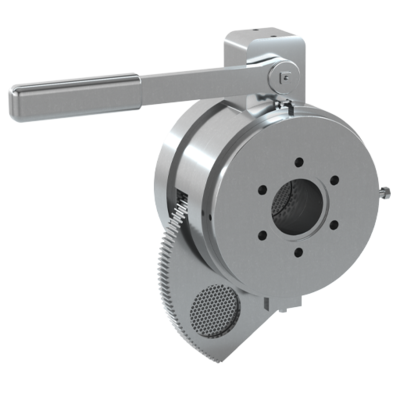

Manual screen changers from Maag have been the first choice of cost-effective filtration systems in extrusion lines for many years. Starting at size 45, the manual screen changers optionally come with transmission gearing. Here, the breaker plate is equipped with patented gearing and a pinion which allows an effortless screen change even in restricted space conditions or high sealing pressures. The manual screen changer guarantees the protection of gear pumps and fine extrusion die gaps from damage and dirt accumulation.

Suitable for Recycling, Extrusion

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative MAAG products. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences.

If you need more information do not hesitate to contact us.

Configuration code

Your personal data will be processed according to Terms of personal data processing..

TECHNICAL DATA

  Throughput rate [kg/h] 20 – 1100
  Operation method diskontinuierlich
  Required heating output [kw] 0,7 – 8,4
  Filter surface [cm²] 3 – 201
  Number of sieve cavities 2
  Screen diameter/length 20 to 160 mm
  Filtration area 3 cm² to 201 cm²
  Mounting Compact mounting dimensions, all positions possible

APPLICATION FIELDS

  Flat films
  Foam films
  Blown films
  Plates
  Pipes
  Profiles
  Blown mouldings
  Fibres
  Granulation
  Compounding
  Recycling

OPTIONS

  Breaker Plate with Diverter Valve function
  PVC-design
  Coated flow channels
  Stainless steel design

ACCESSORIES

  Connection adapters
  Base frames
  Screen plates
  High-pressure breaker plate
