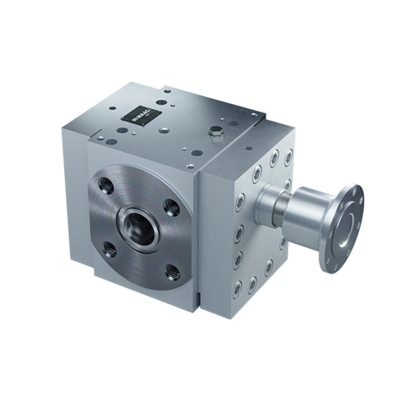

extrex⁶ EP
Extra Pressure gear pump for thermoplastic applications
The extrex6 EP gear pump is an intermediate pressure solution for applications requiring higher pressure, greater load bearing considerations for low lubricity products. With the new x6 class design you have additional benefits compared to the classic gear pump designs.
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative MAAG products. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences.
If you need more information do not hesitate to contact us.
Configuration code
TECHNICAL DATA
Speed [RPM] | max. 325 | |
Torque [Nm] | - | |
Differential pressure [bar] | max. 300 | |
Viscosity [MPa] | Až 3000000 |
|
Temperature [° C] | Až 350 | |
Output [kg / h] | 135 - 10481 |
|
Pump size | 25/25 - 160/160 |
|
Housing | Legovaná ocel |
|
Shaft and gears | Nástrojová ocel |
|
Bearings | Nástrojová ocel | |
Shaft seal | Legovaná ocel |
|
Heating pump | Elektrické s topnými patronamiElektrické a kapalné pro tepelně citlivé termoplasty |
SELECTION OF TYPICAL PUMPED MEDIA
Polyolefins
|
|
Polyesters | |
Polyamides | |
Polycarbonates | |
Styrene polymers | |
Expandable polystyrene | |
ABS / SAN | |
Fluorine polymers | |
TPE | |
Other polymers on request |
OPTIONS
Defined tolerance classes
|
|
Cable heating cassette fully connected to the connector
|
|
Liquid heating with connecting holes | |
Body pressure / temperature sensor holes | |
Selection of materials for each application | |
Cooling function for shaft seals | |
Special types of seals |
ACCESSORIES
Adapter flange
|
|
Sensors
|
|
Trolley / base frame support | |
Power units | |
Control systems | |
Complete solution |
