Model 24B Pressure Transducer
Viatran’s 24B is one of our most versatile pressure transducers for industrial applications. The 24B measures from 0-100 PSI to 0-30,000 PSI with standard linearity of ≤ ±0.25% FSO.
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Viatran product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Viatran Configuration Code:
MODEL 24B PRESSURE TRANSDUCER
0-5 Vdc output, 0-100 to 0-30K psi, Solid Machined Sensor
Viatran’s 24B is one of our most versatile pressure transducers for industrial applications. The 24B measures from 0-100 PSI to 0-30,000 PSI with standard linearity of ≤ ±0.25% FSO.Viatran’s 24B is one of our most versatile pressure transducers for industrial applications. The 24B measures from 0-100 PSI to 0-30,000 PSI with standard linearity of ≤ ±0.25% FSO.
Performance characteristics
Full Scale Pressure Ranges |
0-100 thru 15,000 PSIG (PSIS FOR ≥ 1500 PSI) (7 thru 1000 bar) |
Nonlinearity (Best Fit Straight Line) |
≤±0.25% FSO |
Hysteresis & Repeatability |
≤±0.10% FSO |
Full Scale Output (FSO) |
5 Vdc at 70°F (21°C) ≤±0.10% FSO |
Resolution |
Infinite |
Long Term Stability |
≤±0.3% FSO per 6 months |
Compensated Temperature Range |
-40°F to 250°F (-40°C to 121°C) |
Process Media Temperature Range |
-40°F to 185°F (-40°C to 85°C) |
Ambient Operating Temperature Range |
-40°F to 250°F (-40°C to 121°C) |
Storage Temperature Limits |
-40°F to 185°F (-40°C to 85°C) |
Temperature Effect on Zero |
≤±2.0% FSO per 100°F |
Temperature Effect on Span |
≤±2.0% FSO per 100°F |
Electrical characteristics
Supply Voltage |
8 to 30 Vdc at 3.5 mA nominal, 5 mA max(12 to 30 Vdc for 10 Vdc output option) |
Power Supply Regulation |
≤±0.01% FSO per volt change over the supply voltage range |
Output Signal |
0 - 5 Vdc standard (see options) |
Zero Adjustment
|
±5% FSO min |
Circuit Protection |
Input polarity may be reversed. Output may be short-circuited indefinitelyOver voltage protection to 1000 volts according to EN61000-4-5 |
Insulation Resistance |
<5 nSec to case ground |
Response Time |
<2 mSec to reach 90% of full scale |
RFI / EMI Suppression |
CE EMC compliant per IEC EN 61326. CE marked |
Electrical Connection |
Bendix PT02E-10-6P, mates PT06E-10-6S (SR) |
Pin Outs |
Pin A+ Power
Pin B- Power
Pin C+ Signal
Pin D- Signal
Pin ENo connection
Pin FNo connection
ShellGround
|
Materials of Construction
Wetted Parts |
15-5 PH stainless steel |
Housing |
304L SS |
Weight |
10 oz (283 g) |
Identification |
Pressure sensitive label |
Mechanical characteristics
Pressure Connection |
1/4" - 18 NPT female |
Proof Pressure |
1.5 times range or 20,000 PSI (1379 bar) max |
Burst Pressure |
3 times range or 35,000 PSI (2400 bar) max |
Pressure Cavity Volume |
4.5 ml |
Mounting |
May be supported by process piping |
Options
BF
(K)PTIH-10-6P
BG
DIN 43650
BL
WK6-32S
BN
(K)PTIH-8-4P
BQ
(K)PT02H-10-6P
BR
CF3102E-14S-6P
ZU
DA
Isolated shunt
DC
Extended Compensated Temperature Range (Cold) -40°F to 170°F (-40°C to 77°C)
DG
Improved temp performance to 0.005% FSO per 1°F
DH
Special ranging
DK
Special shunt calibration setting
DM
Modified full scale output
DN
Improved non-linearity
DQ
Cleaning for oxygen service
EA
Special calibration run
EH
Extended Compensated Temperature Range (Hot) +70°F to 185°F (21°C to 85°C)
NH
Customer specified identification
PW
1/8 DIN digital indicator
TW
GOST-R
Y()
Multiple pressure ports available. Consult factory
Direct Cable (175°F max temperature) (79°C)
Note:
Application of some available options may affect standard performance.Consult your Viatran representative for details.

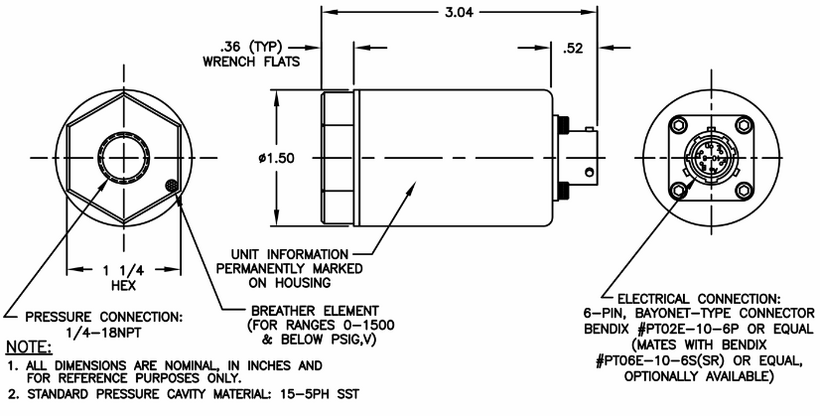

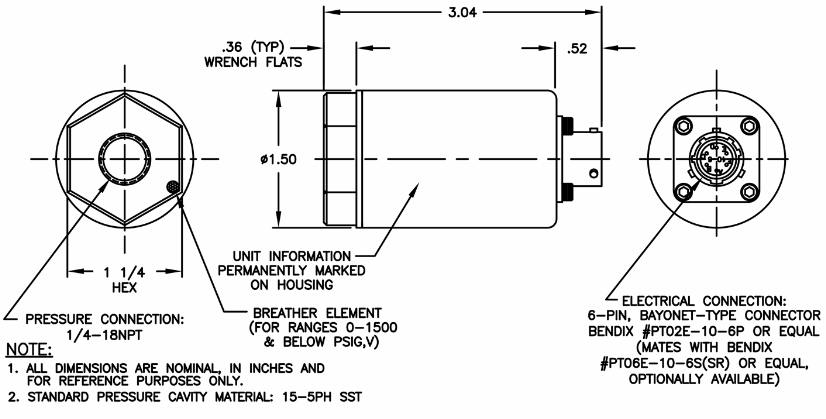

Drawings
