Polymer Test

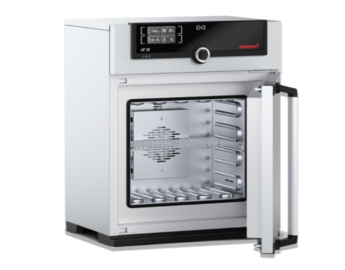

Memmert dryer with fan

Memmert dryer

The universally applicable Memmert laboratory dryer is a classic temperature control device in the field of research, science and materials testing. Technologically improved construction made of high quality and easy to clean stainless steel. It has ventilation and control technology (optional), protection against overheating and precisely tuned heating technology.

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Configuration code


  • Inner and outer casing of the cabinet made of structured stainless steel, rear cover made of galvanized steel
  • Heating circuits integrated in the four inner walls
  • Easy door opening with vertical handle
  • Glass door option (optional)
  • PID microprocessor control units
  • Three-point calibration according to selectable temperature values
  • SetpointWAIT function - start of the countdown of the set time only when the set temperature is reached
  • Certification VDE, GS CE



Temperatures +20 to 300 ° C
Minimum adjustable temperature models with natural air circulation 5 ° C above room temperature
models with forced air circulation 10 ° C above room temperature

Display resolution

0.1 ° C to 100 ° C, 0.5 ° C above 100 ° C when setting the temperature
0.1 ° C when displaying the current temperature

Timer

1 min to 99 days 23 hrs

Fan speed setting

0 to 100% in 10% increments (forced circulation models only)

Model

30 55 75 110
Volume 32l 53l 74l 108l
Internal dimensions
(š x h x v) [mm]

400 x 250 x 320

400 x 330 x 400

400 x 330 x 560

560 x 400 x 480

Number of positions 3 4 6 5
Floors 1 1 2 2
Power consumption 1,6 kW 2,0 kW 2,5 kW 2,8 kW
External dimensions(š x h x v) [mm] 585 x 434 x704 585 x 514 x 787 585 x 514 x 947 745 x 584 x 867
Weight 44 kg 55 kg 65 kg 74 kg

Capillary Melt Flow Indexer LMI 5500

LMI 5500 is a new generation of Dynisco plastomers. This plastometer has a number of new functions compared to its predecessor, but its ease of use and accurate evaluation of measured data has been retained.

Meets standards:
ASTM D1238 and D3364, ISO 1133-1,2, BS 2782, DIN 53735, JIS K7210.

Melt Flow Indexer LMI 4000 Series

The plastometer provides results in the form of MFR, MVR, Melt Density, IV, Shear Viscosity and Shear Rate.


Meets standards:
ASTM D1238 and D3364, ISO 1133, BS 2782, DIN 53735, JIS K7210.



Melt Flow Indexer LMI 5000

Simple and intuitive operation. The results are displayed after the measurement on the device display, the possibility to send to a USB device, Printer, or software. All optional melt flow indexer extensions can be retrofitted.

The melt flow indexer provides results in the form of MFR, MVR, Melt Density, IV, Shear Viscosity and Shear Rate.

Meets standards:
ASTM D1238 and D3364, ISO 1133, BS 2782, DIN 53735, JIS K7210.

Capillary rheometer LCR 7000

The new LCR 7000 Capillary Rheometer range offers a number of new features and meets the requirements of 24-hour operation while maintaining the highest possible accuracy, repeatability and sensitivity. The LCR series rheometers are versatile and easy to use, but offer the most complex methods for polymer characterization, data analysis and reporting capabilities. The LCR series can be used with a standard load cell and a pressure transducer mounted in the rheometer chamber.


Meets standards:
DIN ISO-11433, DIN-53014, DIN-54811, ASTM-D3835
