Kapilarny wskaźnik szybkości płynięcia LMFI55-2NENNCN

Wskaźnik szybkości płynięcia LMFI55-2NENNCN

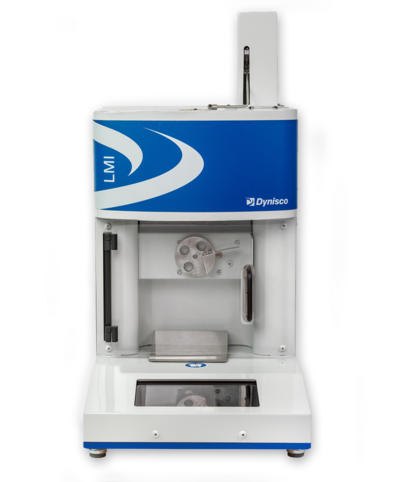

This LMFI5500 series Melt Flow Indexer allows the measurement of most rheological parameters of thermoplastics including IV for PET. The LMFI 5500 series is one of the most accurate equipment of the type in the world. The intuitive controls make it easy to use, it has an expert mode for experienced operators that significantly speeds up the measurement process, and sophisticated features and technologies ensure the highest possible measurement accuracy. Gravity correction and dual zone heating not only meet but exceed the requirements of the latest ISO1133-2 valid standard. This model is perfect for quality control in a laboratory, institutes or universities where accuracy really matters. Try the LMFI 5500 and get a reliable and accurate instrument that will allow you to improve the quality of your products.

It will surprise you with its user-friendly environment and easy maintenance, while keeping maximum precision. In addition, if you later decide to expand your equipment, our service technicians will simply install the necessary modules on your site. With the LMFI 5500 you are absolutely guarantee of accurate and reliable results. Training and consultation are included in the price. However, if you would still miss something, you have online technical assistance and the option of accredited calibration or pre-paid service.

Capillary Melt Flow Indexer LMI 5500

Capillary Melt Flow Indexer LMI 5500

Capillary Melt Flow Indexer LMI 5500

Capillary Melt Flow Indexer LMI 5500

Capillary Melt Flow Indexer LMI 5500

Capillary Melt Flow Indexer LMI 5500

Capillary Melt Flow Indexer LMI 5500

Capillary Melt Flow Indexer LMI 5500

Jak zamówić


Skonfiguruj własny produkt, zgodnie ze swoimi wymaganiami i potrzebami. Jeśli nie jesteś pewien konfiguracji, podaj niezbędne informacje w notatkach o istniejącym produkcie, nawet konkurencji. Z przyjemnością pomożemy Ci znaleźć alternatywny produkt Dynisco. Jeśli Twoja prośba jest pilna, daj nam znać, a dołożymy wszelkich starań, aby jak najszybciej rozwiązać tę sytuację. Jeśli posiadamy te informacje, jesteśmy w stanie zaproponować model z niewielkimi różnicami, a następnego dnia możesz mieć towar u siebie.

Jeśli potrzebujesz więcej informacji, nie wahaj się z nami skontaktować.

Kod konfiguracji Dynisco:

Twoje dane osobowe będą przetwarzane na podstawie Zasady przetwarzania danych osobowych..

The Dynisco LMFI 5500 series capillary Melt Flow Indexer have an optional configuration and can be ordered as a retrofit at any time.

Provided results

Melt flow index: MFR - Melt Flow Rate [g/10min]
Melt flow index: MVR - Melt Volume Rate [ccm/10min]
Melt density: MD - Melt Density [g/ccm]
Intrinsic viscosity (PET): IV - Instristic viscosity [dl/g]
Shear Viscosity: Shear Viscosity [Pa.s]
Shear rate: Shear Rate [1/s]



Performance parameters

Meets standards: ISO1133-1, ISO1133-2, ASTM D1238 & D3364, BS2782, DIN 53735, JIS K7210
Operating temperature: Max. 400°C
Temperature control accuracy: ±0.10°C
Timer accuracy: 0.001 s
Accuracy of digital encoder: ±0.025mm
Display:  7" touch screen; 130° viewing angle ; 800 x 480 resolution
Weights: Aluminum, Stainless or Plated Steel 0.325 to 31.6 Kg

 - 4x USB Port
- Connectivity for PC
- Connectivity for printing
- Storage on USB Flash Drive
- Built-in WIFI and Ethernet

Gravity correction:  YES
Expert Mode:  YES
Optional colour scheme:  YES
Dynisco Cloud:  YES
Dynisco Service Care:  YES
Adjustable PID control:  YES


Other parameters

Overall Dimensions, Base Model: 33W x 53D x 51H cm
Weight, Base Model: 21.3 Kg
Shipping Weight, Base Model with Weights: 81.8 Kg
System Voltage:  100-120Vac 50/60Hz or 220-240Vac 50/60Hz, 500VA, + 5% , 1 single phase
Power: 500W max., 100W typical at set point

Orifice Remover Tool

This tool is used to remove the capillary from the melt flow indexer barrek before the cleaning process. The piston to remove the capillary has to be inserted from the bottom side of the barrel and then the capillary is pushed upwards out of the instrument. For instruments that have an automatic cut-off system, a tool code HEX-030 must be used.

Orifice Remover Tool - AutoCut

This tool is used to remove the capillary from the barrel of the  melt flow indexer with AutoCut before the cleaning process. The piston is inserted from the botttom of the barrel to remove the capillary, and then the capillary is pushed upwards out of the instrument.

Charging Tool


This tool is used to fill and pack polymer samples into the barrel of the melt flow indexer and can be used with both types of powder or pellets or other types of polymers.

Cleaning Tool


This tool is used to clean the chamber of melt flow indexer films and residue. One or two cotton patches are placed on the tool and the walls of the melt flow indexer barrel are cleaned by moving up and down. The capillary must be removed during this cleaning process, otherwise there is a risk of damage to the capillary.

Beaker, 10mL


Glass beaker for measuring the sample. Can be used for powder mixtures and granulates.

Pin Vise


The swivel head of the pin vise (drill body) offers comfortable operation. Thanks to the double-ended pliers, different drill bit sizes can be stored. For better control, the pin vise body is made of grooved aluminium. Under the swivel part of the handle, there is an additional pincer, which is suitable for larger drill bits. The flared end of the pin vise body is used for hanging in the accessory rack

Bronze Scoring Brush


Copper brush for cleaning residue in the melt flow indexers barrel. Its thread is in inches and is compatible only with the original handle supplied with the instrument or can be reordered according to part number:0051-47. Or use the replacement:B0555CZ

Long brush barrel


The copper brush with extended adapter is used for manual cleaning of thick residues and burns in the barrel of a melt flow indexer or rheometer. Due to the softness of the material, you do not have to worry about damaging the instrument barrel. Thanks to the extended length, it lasts longer and removes more dirt per cleaning than standard brushes. It is mainly ideal for materials such as PET/PET/PC and additives that cause burns due to residual moisture, for example, and is very difficult to clean with cotton patches .

Standard capillary 2,095 mm / 8 mm


Standard capillary for Dynisco plastometer with an inner diameter of 0.95 mm and a length of 8 mm. The capillary is identical on both sides and is coated with a layer of Wolram Carbide, which gives the capillaries greater hardness and longer life. The capillary is used for all standard polymeric materials up to a flow index range of 0.1 [g / 10min] to 80 [g / 10min]. For higher indices, we recommend using a so-called half-capillary with half dimensions.

Half capillary 1 mm / 4 mm


The half capillary is used for polymeric materials with very low viscosity. These materials, which achieve flow indices higher than 80 [g / 10min], will slow down and their testing will be no problem. If you are going to use a half capillary, you need to adjust the capillary plastometer settings and record this change in settings.

Go/No-Go Roller Calibre for Capillary


Cylindrical certified calibre for checking the capillary to the Dynisco melt flow indexer. The green end of the caliper must pass through the inner diameter of the capillary but the red end of the caliber must not pass through the diameter of the capillary. If the red end of the roller gauge passes through the capillary, it means that the capillary's inner diameter does not meet the required specifications and must be replaced.

Knife for manual cutting


Knife for manual cutting of the sample from the capillary melt flow indexer and for subsequent cleaning of the capillary. It is made of high quality wooden handle and mild steel, which guarantees flexible blade bending and ensures comfortable cutting of the sample.

Rack for melt flow indexer accessories


The LMI accessory rack is used to store hot or used tools that are hung in the rack. After cooling, the individual elements can be cleaned. The rack helps to keep the workbench tidy and minimise the risk of injury.

Measuring piston for Dynisco Melt Flow Indexers


Certified measuring piston for Dynisco capillary plastometer with a declared weight of 100g. The piston contains 3 marked positions (lines) that show the position of the start of sampling and the end of sampling in the range of 30 mm according to ISO 1133 and a distance of 1 inch for ASTM D1238.

Capillary brush


The stainless steel capillary brush with a diameter of 2.2 mm is the ideal tool for materials that are difficult to clean with heat. Thanks to its solid construction, it is very easy and comfortable to use despite its miniature size. The brush confidently cleans all residual polymer deposits inside the capillary and thus ensures perfect measurement results.



The composite funnel is used for convenient filling of powders into the barrel. Its inner diameter is identical to the diameter of the filling piston, so it is possible to push the piston through it and thus ensure a comfortable passage of polymer materials without spillage.

Cleaning cotton patches


Cleaning wheels for laboratory instruments have high cotton quality and low dust resistance. As a result, you will always have the instrument quickly and conveniently cleaned of all polymer deposits inside the barrel. Thanks to the 100% cotton, the polymer does not smear on the barrel wall, but stays on the cotton roller, which does not tear and leaves no lint.

Sartorius Quintix digital scales


It belongs to the group of scales with touch control. The biggest advantage of the Quintix series is easy operation via a color touch screen. Serious applications are clearly displayed with icons, as is usual today for "smart devices". Another plus of this series is excellent data communication. Each Quintix scale is equipped with a mini USB data output with Plug & Play technology.

Digital Scales Kern PCB

Standard laboratory scales with clear display, simple operation and five operating modes. The advantage of this series is the PRE-TARE function (when activated, the stored weight is automatically deducted from the current measured weight).

High Flow Plug


The High Flow Plug is used as a seal against leakage of a filled barrel of a polymer that has a very low viscosity.

Cleaning kit for melt flow indexers barrel


Cordless angle drill for easy and quick cleaning of the melt flow indexer barrel. In combination with the cleaning mandrel with replaceable tip, this set is the best helper, which also has a positive effect on the accuracy and the results provided. It also includes an extension mandrel for attaching the brush.

Bosch Professional Angle Drill


Cordless angle drill for easy and quick cleaning of the melt flow indexer barrel. In combination with the cleaning mandrel with replaceable tip, this set is the best helper, which also has a positive effect on the accuracy and the results provided.

Cleaning rod (8.5in)


The 8.5in (22cm) cleaning rod is used in combination with the cleaning tip and the cotton cleaning wheels. With this combination, you can clean the chamber quickly and easily using the cordless drill, with a positive effect on the accuracy of the instrument.

Cleaning tip


The barrel cleaning tip is used in combination with cotton cleaning patches and an extension cleaning rod. The tips are replaceable and made of aluminium to prevent damage to the melt flow indexer barrel. Nevertheless, this cleaning tip is only used with cotton patches.

Inspection mirror

The inspection mirror is used for inspection when cleaning the device, thanks to the telescopic handle you can easily and without risk get everywhere where you would otherwise have to lean or lean towards places with high temperature and thus avoid the risk of burns.

Software Lava Suite

The new LaVa Suite software is now available for the LMI 5000 Series capillary plastometers. It offers complete and easy management when collecting, storing and working with digital data provided by the capillary plastometer. Lava Suite ™ software enables additional generated measurement results, filtering using identifiers and comparison of individual measurements on a larger scale, including time horizons.

Edge Device - Cloud

Integrate and aggregate data from existing Dynisco products such as our LMI5000 & LMI4004 melt flow indexers, our LCR7000 capillary rheometer, and instrumentation like our UPR900 process indicator via the Dynisco Edge Device. With the Edge Device you have a single board computer that helps you better understand and manage:

Memmert dryer with fan

The universally applicable Memmert laboratory dryer is a classic temperature control device in the field of research, science and materials testing. Technologically improved construction made of high quality and easy to clean stainless steel. It has ventilation and control technology (optional), protection against overheating and precisely tuned heating technology.

Granulator laboratoryjny MiniGran

MiniGran to granulator laboratoryjny przeznaczony do granulacji mniejszych elementów z tworzyw sztucznych. Dzięki swoim kompaktowym rozmiarom, granulator ten można umieścić niemal wszędzie i dlatego jest bardzo odpowiedni do zastosowań laboratoryjnych. Granulator nadaje się do wszystkich rodzajów tworzyw sztucznych, dzięki niskiej prędkości obrotowej wirnika przetwarza tworzywa sztuczne na wysokiej jakości recyklaty o niskiej zawartości pyłu.

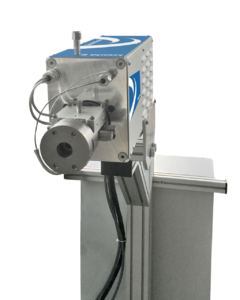

Zaprojektowany specjalnie dla przemysłu polimerów termoplastycznych, ViscoIndicator zapewnia ciągły pomiar wskaźnika przepływu stopu, lepkości pozornej lub lepkości wewnętrznej bezpośrednio na wytłaczarce.

ViscoIndicator powiela warunki testowe laboratoryjnego przyrządu do wskaźnika przepływu stopu (MFR) lub reometru kapilarnego.


Specjalnie zaprojektowany dla przemysłu polimerów termoplastycznych. ViscoSensor zapewnia ciągły pomiar wskaźnika płynięcia lub lepkości pozornej lub lepkości wewnętrznej (IV) bezpośrednio na linii produkcyjnej.

Spełnia normy: Wskaźnik szybkości płynięcia online ASTM D1238, ISO 1133 lub JIS K 7210

CMR IV - Rheometer

Specjalnie zaprojektowany dla przemysłu żywic termoplastycznych, Seria Dynisco CMR może być skonfigurowana do pomiaru natężenia przepływu stopu, natężenia przepływu stopu przy wysokim/niskim obciążeniu, pozornego natężenia przepływu stopu. szybkości płynięcia, szybkości płynięcia przy wysokim/niskim obciążeniu, lepkości pozornej lub innych testów zdefiniowanych przez klienta. lepkości lub do wykonywania innych testów zdefiniowanych przez klienta.

FCR-R - Rheometer

Seria reometrów Dynisco FCR-R, zaprojektowana specjalnie dla przemysłu produkcji włókien syntetycznych, może być skonfigurowana do pomiaru zakresu pozornej lepkości ścinania, podwójnego natężenia przepływu stopu, jednoczesnego natężenia przepływu stopu i lepkości rozszerzonej przy użyciu równań Cogswella.
