Local and remote rezeroing capability

Our pressure sensors offer efficient, accurate, and durable solutions for reliable and safe pressure measurement. These sensors are used in a variety of industrial areas, where they monitor and measure the pressure of molten materials, ensuring optimal operation of production processes. Due to their resistance to high temperatures and pressures, which are typical for these applications, they represent a suitable choice for diverse uses. When selecting a sensor, it is important to consider the specific requirements of your application, such as temperature range, pressure range, and materials with which the sensor will interact. The correct choice of sensor guarantees reliable and accurate results and a long service life of the device without any problems. Installing the sensor into the mounting hole of the production line is simple.

However, if you have doubts about the proper installation, do not hesitate to contact our technicians. We are ready to provide support and offer the ideal solution for your application.

Dynisco’s model EPR3 high - temperature melt pressure transducer is offered as an alternative to its PT420 and PT460 series. The push - rod design is suitable for applications where the use of a filled system may not be desirable, such as the extrusion of food and medical products and the manufacture of photographic film. Model EPR3 is available in pressure ranges from 0 - 1,500 through 0 - 10,000 psi.

EPR3 Push Rod  - With rigid stem

Rigid Stem pressure sensors are easily installed into the mounting hole of the production line, ensuring a simple and robust design that is suitable for applications where the sensor is not exposed to radiant heat from the line and the electronics are not subjected to extreme temperatures. We do not recommend installing these sensors in a vertical position above the line (12 o'clock position), as radiant heat can negatively affect the sensor's electronics lifespan. In such cases, we recommend using a sensor design with a flexible capillary, which allows the electronics to be diverted away from the radiant heat, ensuring a long sensor life. The main advantages of this type of sensor include resistance to impacts and vibrations, enabling them to withstand mechanical stress, which increases their lifespan and reduces the need for maintenance. They also feature high accuracy, ensured by quality materials and advanced measurement technology, which is crucial for efficient process control.

Performance Characteristics



Ranges (psi):	0 - 10 000 PSI
Accuracy:	±0.5% FSO
Repeatability:	±0.2% FSO
Mounting Torque:	100 inch - lbs. recommended, 250 inch - lbs. maximum
Maximum Pressure:	150% full scale
Material In Contact With Pressure Media:	17 - 4 PH stainless steel, Dymax® coated
Weight:	13.25 oz



Electrical Characteristics



Configuration:	Four active arm bonded Wheatstone bridge strain gage
Bridge Resistance:	Input: 345 Ohms minimum; Output: 350 Ohms ±10%
Excitation:	10 Vdc recommended, 12 Vdc maximum
Internal Shunt Calibration (R-Cal):	80% FSO ±1.0%
Insulation Resistance:	1,000 megohms at 50 VDC

Temperature Characteristics



Transducer Diaphragm:
Maximum Diaphragm Temperature:	750°F (400°C)
Zero Shift Due To Temperature Change:	±1.0% full scale/100°F (±2.0% full scale/100°C)
Sensitivity Shift Due To Temperature Change:	±1.0% full scale/100°F (±2.0% full scale/100°C)
Electronics Housing:
Maximum Temperature:	250°F (121°C)
Zero Shift Due To Temperature Change:	±1.0% full scale/100°F (±2.0% full scale/100°C)
Sensitivity Shift Due To Temperature Change:	±1.0% full scale/100°F (±2.0% full scale/100°C)

Ordering Guide for EPR3

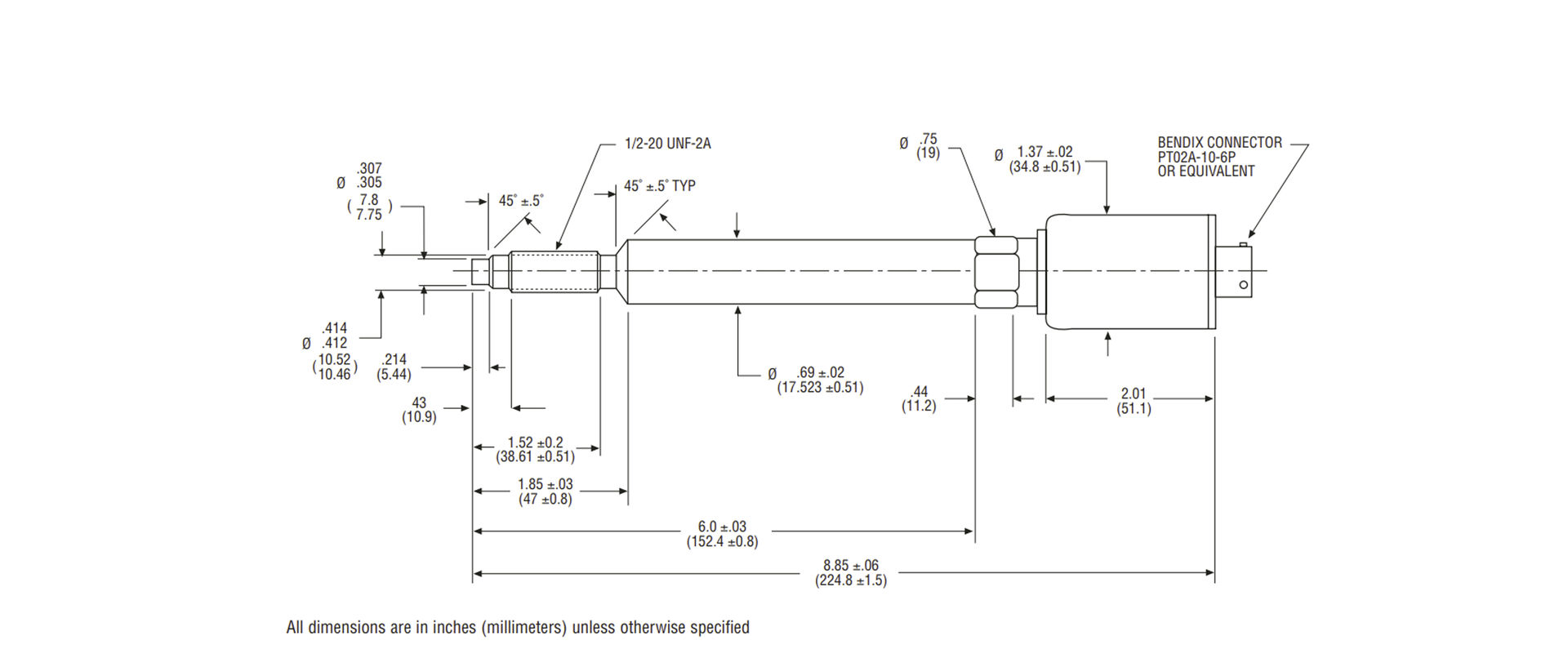

EPR3 - Dimensions

All dimensions are inches (mm) unless otherwise specified.

---
