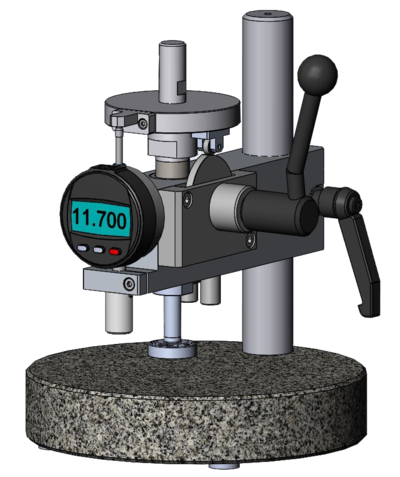

Thickness Gauge HTG-C

Thickness Gauge HTG-C

The Hildebrand thickness gauge is a cost efficient and easy to use instrument for measuring the thickness of different materials.

The modular design with interchangeable foots with related weights enables the use for several standards. We can also offer specific thickness gauges modified to fit your special requirements.

The constant force enables repeatable readings.

We use only corrosion-resistant materials. Therefore you can use the Hildebrand thickness gauges in environments with high humidity.

Features:

Laboratory grade granite base: Ø200 mm x 40 mm
Column diameter: 30 mm (stainless steel)
Sturdy extention arm (aluminium)
Manual lever for up and down movement of weight and foot
Ball bearings enables low friction
Individual serial number on the weight/foot
You can measure material thickness up to 12 mm. Above 12 mm you require a slip gauge (accessories) and the Preset-Function of the electronic gauge (e.g. 10 mm slip block: Material thickness 10 up to 22 mm).
Resolution: 0,001 mm
Weight: approx. 8 kg
Delivered with operating instructions and manual lifter

Model

Order.-No.

Standard

Aplication

Information

Stand Ø

 (mm)

Weigth

(g)

Pressure

(kPa)

HTG-6

219 255

DIN EN ISO 2589

Leather

Picture | Drawing | Catalog page

10,0

393,0

49,1

HTG-7

219 256

ASTM D 1777

Option 3

Films, Glass cloths, Glass tapes

Picture | Drawing | Catalog page

6,3 546,0

172,0

HTG-8

219 257

ASTM D 5199

Geosynthetics

Picture | Drawing | Catalog page

56,4 509,5 2,0

HTG-9

219 258

DIN EN 534

Paper and Cardboard

Picture | Drawing | Catalog page

16,0 2050,0 100,0

HTG-10

219 259

DIN ISO 3034

Cardboard

Picture | Drawing | Catalog page

35,7 2041,0 20,0

HTG-17

219 266

ASTM F 2251

Flexible packaging material

Picture | Drawing | Catalog page

15,875 1033,0 50,3
