DYNISCO

Providing Innovative Solutions

With more than 6 decades of commitment to helping customers, Dynisco provides the tools and services for the polymer industry allowing customers a “window into the process”.

Today’s customers require accurate information that will allow them to validate and if necessary adjust their process ensuring the products they make meet or exceed their specifications.  The information Dynisco provides allows our ​customers to keep their process consistent regardless of their global locations.

Dynisco’s diverse portfolio of sensing and polymer test equipment delivers some of the most accurate information available in the market for the measurement of polymer rheology, pressure, and temperature.

Dynisco provides our customers the ability to correlate the data derived from pilot to laboratory environments with online production, 24 hours a day.  This data allows for immediate response and adjustment to critical parameters ensuring any variations are promptly corrected to guarantee quality while maximizing their output.




Dynisco History

Known worldwide for leading-edge pressure and temperature measurement and control products for the plastics extrusion industry, Dynisco has been developing innovative, high-quality solutions for plastics extrusion processing for 60 years built on the expertise of an engineering staff that averages 15-20 years experience.  Dynisco sensors, controls, and analytical instruments have proven to offer better control, reduced downtime, minimum scrap, and unmatched reliability and working life.  Our dedication and ability to collaborate with you to help you measure, analyze and outfit extrusion control systems that fit your exact needs are unmatched.  From breakthrough technology in the industry’s most complete line of sensors to renowned quality and performance in indicators, controls, and analytical instruments.

Dynisco Sensors Designed specifically for the rugged environment of the plastic industry, Dynisco has developed some of the most innovative measurement solutions for plastic extrusion, molding and process control applications.  Manufacturing a wide range of robust mV/V, mA, VDC and HART-compatible melt pressure sensors, through engineering excellence built on expertise and experience.

Dynisco Analytical Instruments Process quality begins with the material being used. Dynisco's analytical instruments allow the processor to verify material specifications and optimize process conditions. These instruments include melt flow

[Dynisco Heilbronn Germany Facility]

indexers, capillary rheometers, and small laboratory mixing extrusion systems. Dynisco also offers the most comprehensive and accurate line of online rheometers available in the market today.

Dynisco offers a full range of global service and technical support for our complete line. Dozens of highly skilled, technical support personnel are stationed internationally to provide:

  • Expert consultation
  • Custom design solutions
  • On-site equipment diagnostics and trouble-shooting
  • Transducer repair and maintenance ∙ Installation services
  • Operator training for equipment ∙
  • System repairs, replacement parts, preventive maintenance and more

Customers around the world have come to depend on Dynisco for product innovation and advanced system solutions that have a significant impact on their manufacturing process efficiencies.

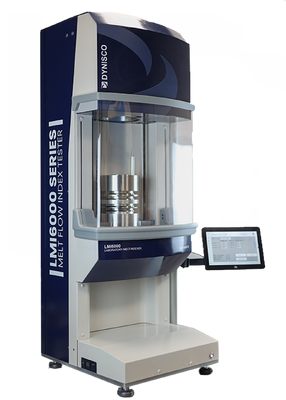

Melt Flow Indexer LMI 6000 Series

Introducing the LMI6000 series. The new generation of comfort and performance. The automated electromechanical lifting mechanism simplifies weight lifting. A larger, adjustable touch display allows for easy operation. Modernized hardware architecture ensures higher performance. Software automation enables one-button test initiation. The LMI6000 revolutionizes your work environment, combining comfort, efficiency, and reliability.

Electric Weight Lifting

Digital Encoder

Wi-Fi

4x USB

Ethernet Port

Results History

Dynisco Cloud

CE Accredited Wifi Cloud ISO ASTM

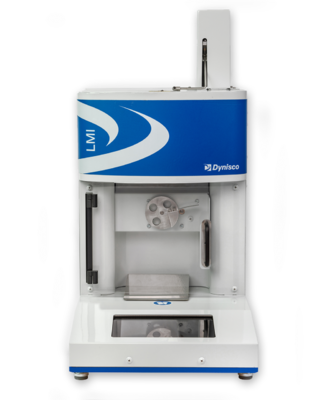

Melt Flow Indexer LMFI55-2NENNCN

This LMFI5500 series Melt Flow Indexer allows the measurement of most rheological parameters of thermoplastics including IV for PET. The LMFI 5500 series is one of the most accurate equipment of the type in the world. The intuitive controls make it easy to use, it has an expert mode for experienced operators that significantly speeds up the measurement process, and sophisticated features and technologies ensure the highest possible measurement accuracy. Gravity correction and dual zone heating not only meet but exceed the requirements of the latest ISO1133-2 valid standard.

This model is perfect for quality control in a laboratory, institutes or universities where accuracy really matters. Try the LMFI 5500 and get a reliable and accurate instrument that will allow you to improve the quality of your products.

Digital encoder

AutoCut System

Wifi

4x USB

Ethernet port

Results history

Dynisco Cloud

CE Accredited Wifi Cloud ISO ASTM

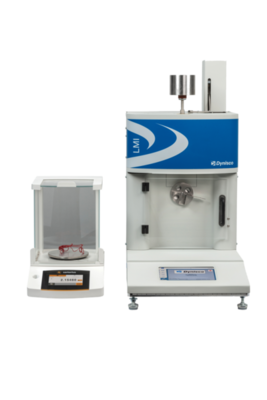

Melt Flow Indexer LMI 5000

Not Available

The LMI is a cultivation of feedback from customers incorporating a series of key features and options: Color Touch-Screen Display incorporating a user friendly menu structure, USB communications, pneumatic weight lift system with stackable weights, a force packer, higher accuracy digital encoder, software and NEW! auto cutter option.

The melt flow indexer provides results in the form of MFR, MVR, Melt Density, IV, Shear Viscosity and Shear Rate.

Meets standards:
ASTM D1238 and D3364, ISO 1133, BS 2782, DIN 53735, JIS K7210.

Melt Flow Rate - MFR

Melt Volume Rate - MVR

Intrinsic Viscosity - IV

Melt Density

Shear Viscosity

Shear Rate

USB, Printer, Software

Dynisco Cloud

CE ISO ASTM

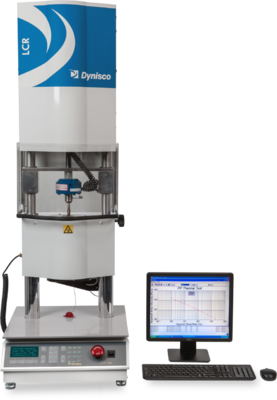

Capillary rheometer LCR 7000

The new LCR 7000 Capillary Rheometer range offers a number of new features and meets the requirements of 24-hour operation while maintaining the highest possible accuracy, repeatability and sensitivity. The LCR series rheometers are versatile and easy to use, but offer the most complex methods for polymer characterization, data analysis and reporting capabilities. The LCR series can be used with a standard load cell and a pressure transducer mounted in the rheometer chamber.


Meets standards:
DIN ISO-11433, DIN-53014, DIN-54811, ASTM-D3835



Digital calibration

Higher measuring force range

Bagley correction

Rabinowitsch's correction

Arrehnius temperature

Temperature and time dependence

Critical shear stress

Correlation of intrinsic viscosity (IV)

45 shear stress data

Unique algorithms

Range up to 500°C


CE EAC RoHS ISO9001 ISO 17025 ISO ASTM

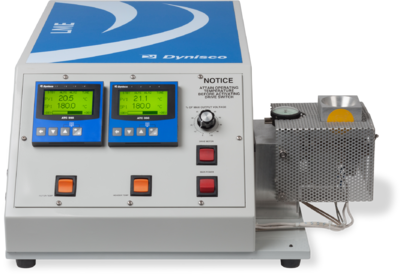

LME - Laboratory Mixing Extruder

The Dynisco Polymer Test LME Laboratory Mixing Extruder is a unique laboratory tool developed to evaluate the processability of a variety of plastics and rubbers prior to production. From very fine powders to coarse materials, the LME will meet many extruding needs. The LME possesses a movable header and dial gage that allows for constant mixer adjustability. While in operation, the rotational shearing (mixing) is controlled by adjusting the distance between the end of the rotor and the inside header.

R & D tool

Gew grams of material

Three-part system

Optional Take Up

Optional Chopper

Standard rod header with replaceable orifice

Four optional headers available

Two separate temperature controls

Short residence time

Instrument mixing

Compounding and extrusion

Unique, screwless design

Up to 400°C

Variable speed control

Water-cooled feed hopper

CE EAC RoHS ISO9001

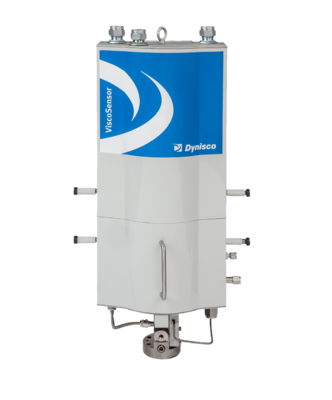

ViscoSensor

The ViscoSensor provides continuous measurements of the melt flow rate or apparent viscosity directly on the manufacturing process. The ViscoSensor system consists of two parts: a Viscosensor Rheologic Sensing Unit (RSU), connected directly to the process, and a Rheologic Control Unit that controls the ViscoSensor test parameters, provides outputs of computed results, and provides communications to an external distributed control system when required.

Connection via M18 hole or flange

An effective solution for monitoring online values

The measured polymer is returned to the processing

ASTM D1238, ISO 1133, or JIS K 7210

On-line shear viscosity and intrinsic viscosity (IV)

Easy calibration

2 Vertex pressure sensor for the highest accuracy

Dynisco Cloud

CE EAC ISO9001 RoHS

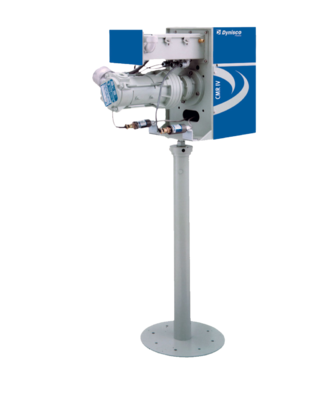

CMR IV - Rheometer

Specifically designed for the thermoplastics resin industry, the Dynisco CMR series can be configured to measure melt flow rate, high/low load melt flow rate, apparent viscosities, or to perform other customer defined tests.The CMR system consists of two parts: a rheometer head connected directly to the process which samples, conditions, and measures the melt flow of the resin, and an RCU (Rheometer Control Unit) that controls the CMR test parameters (temperature, pressure, rate), and provides outputs of computed results, and communications to an external distributed control system when required.

Online measurement

Data export via mA signal or RS232

Customer solutions

The system is also designed for places with a risk of explosion

Vertex® sensors used for high accuracy

Range of dosing pumps for specific applications

Easy calibration

Alarm system

Robust industrial design

Dynisco Cloud

CE EAC EX ATEX
ISO9001 RoHS

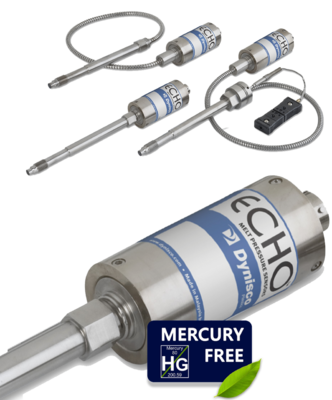

ECHO (NaK) Series

Mercury-free. Trusted for Quality, Reliability and Accurate Performance at an Affordable Price

Dynisco's Echo™ Series of melt pressure sensors offer quality performance and value for plastic processing utilizing standard configurations and pressure ranges. Echo sensors are designed to meet customer requirements by providing a combination of economic value and performance for general extrusion applications while providing a ±0.2% repeatability when measuring process pressures. Use Echo Series sensors when the application requires a quality measurement for optimized control, but not the costs of all the extra features.

2 year warranty

Accuracy better than ±0.5%

TiAIN diaphragm coating is standard

mV/V, 0-10VDC, or mA outputs available

Integral temperature sensor option

Output configurations

0 - 1000 Bar

Alternative fill model available

CE ISO9001 BSI RoHS2 EAC

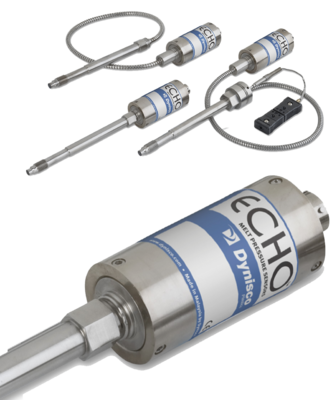

ECHO Series

Trusted for Quality, Reliability and Accurate Performance at an Affordable Price

Dynisco's Echo™ Series of melt pressure sensors offer quality performance and value for plastic processing utilizing standard configurations and pressure ranges. Echo sensors are designed to meet customer requirements by providing a combination of economic value and performance for general extrusion applications while providing a ±0.2% repeatability when measuring process pressures. Use Echo Series sensors when the application requires a quality measurement for optimized control, but not the costs of all the extra features.

2 year warranty

Accuracy better than ±0.5%

TiAIN diaphragm coating is standard

mV/V, 0-10VDC, or mA outputs available

Integral temperature sensor option

Output configurations

0 - 1000 Bar

Alternative fill model available

CE ISO9001 BSI RoHS2 EAC

1490 Process Panel Indicator

The 1490 is a Universal Input Indicator with single or dual configurable alarms, optional linear retransmission of Process Variable, Transmitter power supply option as well as optional Modbus communications.

Universal Input

2 Alarm Outputs

Retransmission

Min/max Value Hold

Modbus Communications

Transmitter Power supply

CE UL RoHS ISO9001

ATC990 Process Panel Controller

The ATC990 with a graphical/text LCD display is a universal input process controller with advanced functionality including Trend views as well as Digital Inputs, USB and data logging options. It provides a cost-effective way to control a single process parameter, such as for a plastics extruder. Designed to improve user efficiency many features are integrated to reduce commissioning time, simplify operation and minimize maintenance downtime. Reliably auto-tune and alarm on strain gauge, DC voltage, temperature or current inputs.

Auto-tuning control

LCD Display, LED backlight

Graphical trend view

Setup Wizard

Single loop control

USB data logging

Modbus support

BlueControl software

CE UL

Temperature Controller 1498 Series

The 1498 series temperature controllers represent an economical solution for precise temperature control of the machine. Thanks to its DIN size and several output configurations, the controller is suitable for twin and single screw extruders, both for screw temperature zones and for adapter zones, together with heating / cooling for individual zones.

Easy configuration

Easy operation

Temperature control

Heating regulation

Cooling control

Indication

Universal entrance

Repeated processes

Size 1/16 DIN

Modbus RS485

CE c RUS US UL upravit CRU US ISO
