Sensors and transducers

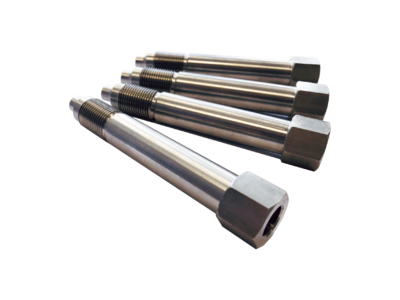

Adapter for Dynisco pressure sensors
Reduction for sensors from 1 / 2-20 UNF thread to M10x1.5 or M18x1.5 thread Another variant is the reduction from m10x1.5 to M18x, 15. These adapters are the fastest and most efficient way to turn an available (warehouse) sensor into a full-fledged replacement for a crisis situation.


Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.

The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.

Separate Bendix connectors. In the variant of the 6-pin connector.

These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.

Separate Bendix connectors. In the 8-pin connector variant.

Adapter for Dynisco pressure sensors
Reduction for sensors from 1 / 2-20 UNF thread to M10x1.5 or M18x1.5 thread Another variant is the reduction from m10x1.5 to M18x, 15. These adapters are the fastest and most efficient way to turn an available (stock) sensor into a full-fledged replacement for a crisis situation.

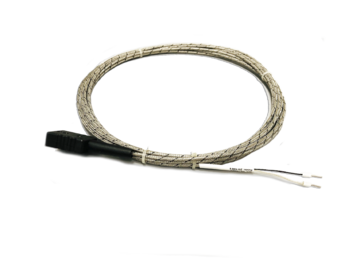

Standard temperature cabling to temperature sensors with J-type connector.

Model VPC-999084 simplifies the on-line troubleshooting of Dynisco strain gauge transducers, signal conditioners, and indicators. Its out-put can be varied in 20% steps or via a variable trim pot.
