Blendrex®
Polymer processing, polymer systems, and polymer applications for extrusion in the polymer industry
MAAG specializes in the design and application of blendrex® heat exchangers used to preheat polystyrene melt prior to devolatilization and to cool polyester prior to spinning or pelletizing by polymer processing. blendrex® heat exchangers are problem solvers for many types of difficult heating and cooling polymer applications.
Significantly improve heat transfer rates of polymers and other viscous products. Three to seven times the rate obtainable compared to an “open tube” (no blendrex® elements) design
Provide a shorter product residence time inside the unit
blendrex® tube is a “plug flow” device
Tubes eliminate localized “hot spots”, and provides uniform temperature profile across the tube section
Contain alternating helical twist elements to obtain the high performance capabilities
Double Mechanical Seal
Seal with buffer fluid for chemical pumps and chemical transfer pumps in industrial applications
The Double Mechanical Seal is a MAAG brand for industrial application and chemical pumps. It has a robust design with buffer fluid. Therefore, it is suitable for corrosive and abrasive applications. The sealing rings are available in carbon and SSiC (sintered silicon carbide ceramic) for chemical transfer pumps.
Single Mechanical Seal
Chemical pumps and chemical transfer pumps for abrasive fluids in industrial applications
This seal on the chemical transfer pump is applicable for high temperatures. A different material combination is available for aggressive and corrosive media. The sealing ring in SSiC can be used for abrasive fluids in industrial applications.
For corrosive fluids: Good fit
For abrasive fluids: Good fit (with SSiC)
TA-Luft certified: No
Double Mechanical Seal – balanced
Balanced seal for chemical pumps and chemical transfer pumps in industrial applications
The double mechanical seal with balanced sealing ring can be used for high inlet pressures. It needs to be used in combination with balanced shaft (double extended shaft, two seals) for chemical transfer pumps, chemical pumps, and other industrial applications.
Single Mechanical Seal – balanced
Balanced seal for chemical pumps and chemical transfer pumps
The single mechanical seal with balanced sealing ring can be used for high inlet pressures and needs to be used in combination with a balanced shaft (double extended shaft, two seals) for chemical pumps, chemical transfer pumps and industrial applications.
For corrosive fluids: Good fit
For abrasive fluids: Not suitable
TA-Luft certified: No

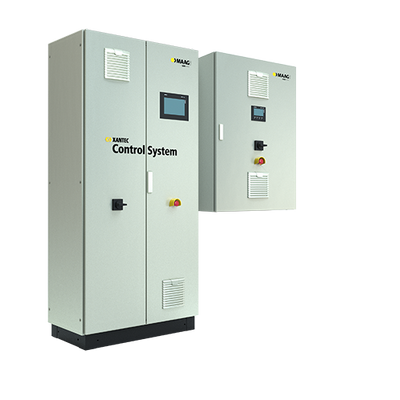

Maax 100S / 400S / 600S
Extrusion gear pump and melt pump system for the polymer extrusion industry
The maax® automation system simplifies operation, control, adjustment, and monitoring of the operating parameters. This guarantees optimum protection and operation of the extrusion gear pump system, melt pump system, and screen changer. Process and operational reliability of the entire system is increased. The maax® 100S automation system is the ideal solution for integrating melt pumps and screen changers into the extrusion line. maax® 400S is for upgrading coextrusion lines. The maax® 600S automation system is the ideal solution for equipping complete and complex extrusion and compounding plants in the polymer extrusion industry.
Simple and clear operation of the line-start and stop proceures
Increased productivity, by saving recipies in parameter lists
Rapid and precise control of extruder and pump speed, depending on application
Integrated temperature control of system components
Quick error detection by plain text messages
Scalable visualisation of various operating parameters in a trend display
Additional for maax® 100S/400S/600S: configurable System and Software configuration

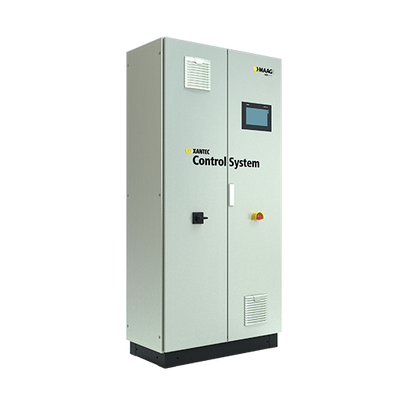

Maax 3S
Automation system for retrofitting in extrusion lines
The automation system maax® 3S simplifies the operation, control, regulation, and monitoring of the operating parameters. Production data are displayed transparently and operation is simple and intuitive. Process and production safety of the line are increased. The maax® 3S automation system is particularly suitable for the retrofitting of gear pumps or screen changers in extrusion lines.
Simple and clear operation of the start-up and shutdown routines
Modular expansion to include screen changer controllers
Quick and precise control of the extruder or pump speeds
Independent start-up and production control of the pump speed
Integrated temperature control of the line components
Fast troubleshooting thanks to plain text messages
Maxx BF
Automatic self cleaning backflush screen changer for filtration systems
Maax® BF is MAAG’s well-proven control system for the fully automatic backflush screen changers. It allows the processor of highly contaminated polymer melts simple handling of the backflush screen changer and fully automatic screen cleaning for multiple use of the built-in screens. The automation system is particularly well suited for retrofitting extrusion lines with automatic self cleaning screen changers with backflush function. Operation, control, regulation, and monitoring of operating parameters are simplified. Process and operation reliability of the filtration systems of the entire system are increased.
Simple and clear operation of filter and system functions
Increased productivity through storage of recipes in parameter lists
Integrated temperature control of the system components
Rapid error detection via clear text messages
Scalable visualization of different operation parameters in a trend display
Increased productivity
Mag drive
Chemical pumps and chemical transfer pumps for industrial applications
Magnetic drives are hermetically sealed, thereby guaranteeing that environmentally hazardous, poisonous, and malodorous substances are pumped safely by chemical transfer pumps. The product chamber in the gear pump is completely separated from the environment by a containment shell. The torque is transferred from motor shaft to pump shaft without contact by means of heavy-duty permanent magnets. This design makes the magnetic couplings extremely safe and virtually maintenance-free for the industrial application.
High suction pressures (standard to 25 bar, in special designs up to 200 bar)
Virtually maintenance-free
Optimized safety and leak sealing
Hermetically-sealed design
Long service life
Low maintenance costs

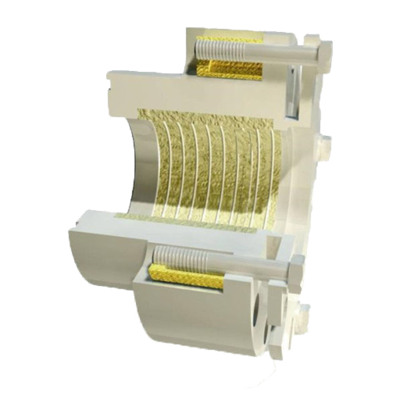

Vispac
Seal for polymer gear pumps and polymer pump systems and applications
High reliability and functionality are crucial for a seal in the polymer application discharging process for guaranteeing optimized product quality and line availability. The vispac® shaft seal is known for its robustness and reliability and especially for its easy handling. This low-maintenance seal is a proven combination of the viscoseal system and sealed packing glands for polymer pump systems.
Extremely large range of applications
Reliability and safety
Low wear and low maintenance
Simple and reliable adjustment of the seal control pressure
Magnetic Coupling
Sealed design with our double containment shell for chemical pumps as a industrial application
MAAG offers Magnetic Couplings with our double containment shell for chemical pumps. The magnetic couplings provide a hermetically sealed design for chemical transfer pumps and is virtually maintenance free. The couplings come in special designs for industrial applications with suction pressures up to 200 bar.

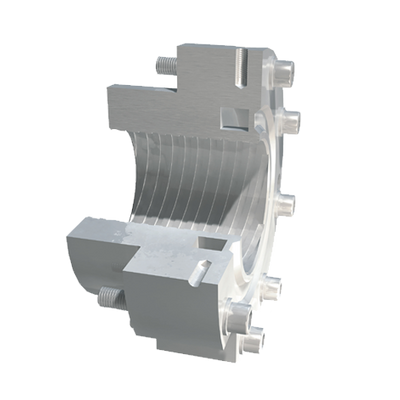

Viscoseal
Seal for highly viscous fluids, extrusion gear pump systems, melt pumps, and polymer extrusion
The viscoseals are available for highly viscous fluids which are used for extrusion gear pump systems. The seal is contactless and dynamic. It has a simple design and has only one sealing part. A cooled model is available for the polymer extrusion industry is available and it is virtually maintenance free.
For corrosive fluids: Suitable
For abrasive fluids: Good fit
TA-Luft certified: No
