Melt Flow Indexer LMI 5000

Melt Flow Indexer LMI 5000

The LMI is a cultivation of feedback from customers incorporating a series of key features and options: Color Touch-Screen Display incorporating a user friendly menu structure, USB communications, pneumatic weight lift system with stackable weights, a force packer, higher accuracy digital encoder, software and NEW! auto cutter option. The LMI is capable of delivering a wide range of data that includes not only melt index values, but also shear stress, shear rate, apparent viscosity, intrinsic viscosity and melt density, as well as testing conditions. The addition and improvements of key attributes help alleviate some of the burden of running a melt index test from the technician and improves repeatability of the data.

The melt flow indexer provides results in the form of MFR, MVR, Melt Density, IV, Shear Viscosity and Shear Rate.

Meets standards:
ASTM D1238 and D3364, ISO 1133, BS 2782, DIN 53735, JIS K7210.

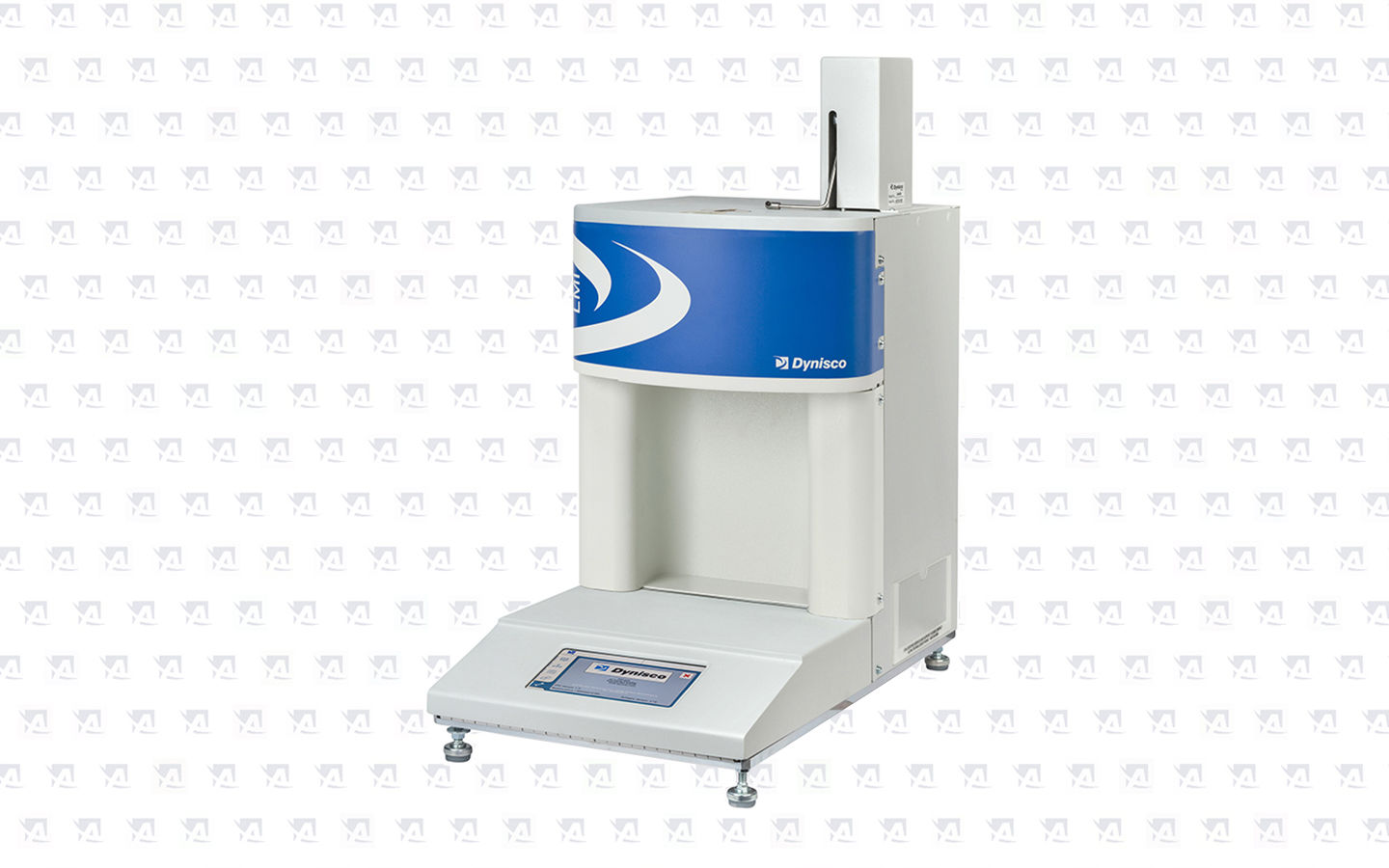

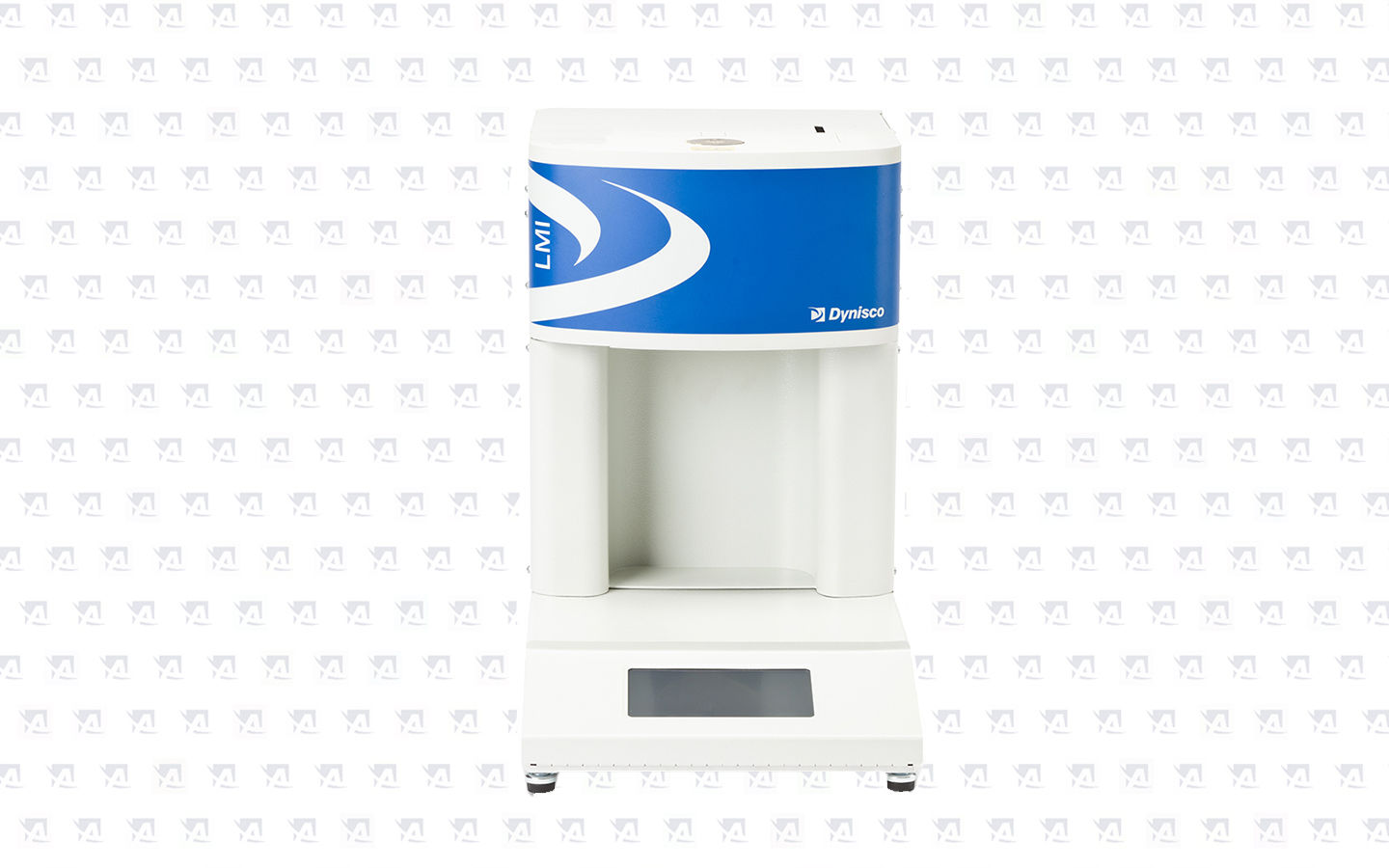

Melt Flow Indexer Dynisco LMI 5000 - Basic

Melt Flow Indexer Dynisco LMI 5000 - Basic

Melt Flow Indexer Dynisco LMI 5000 - Digital encoder

Melt Flow Indexer Dynisco LMI 5000 - Digital encoder

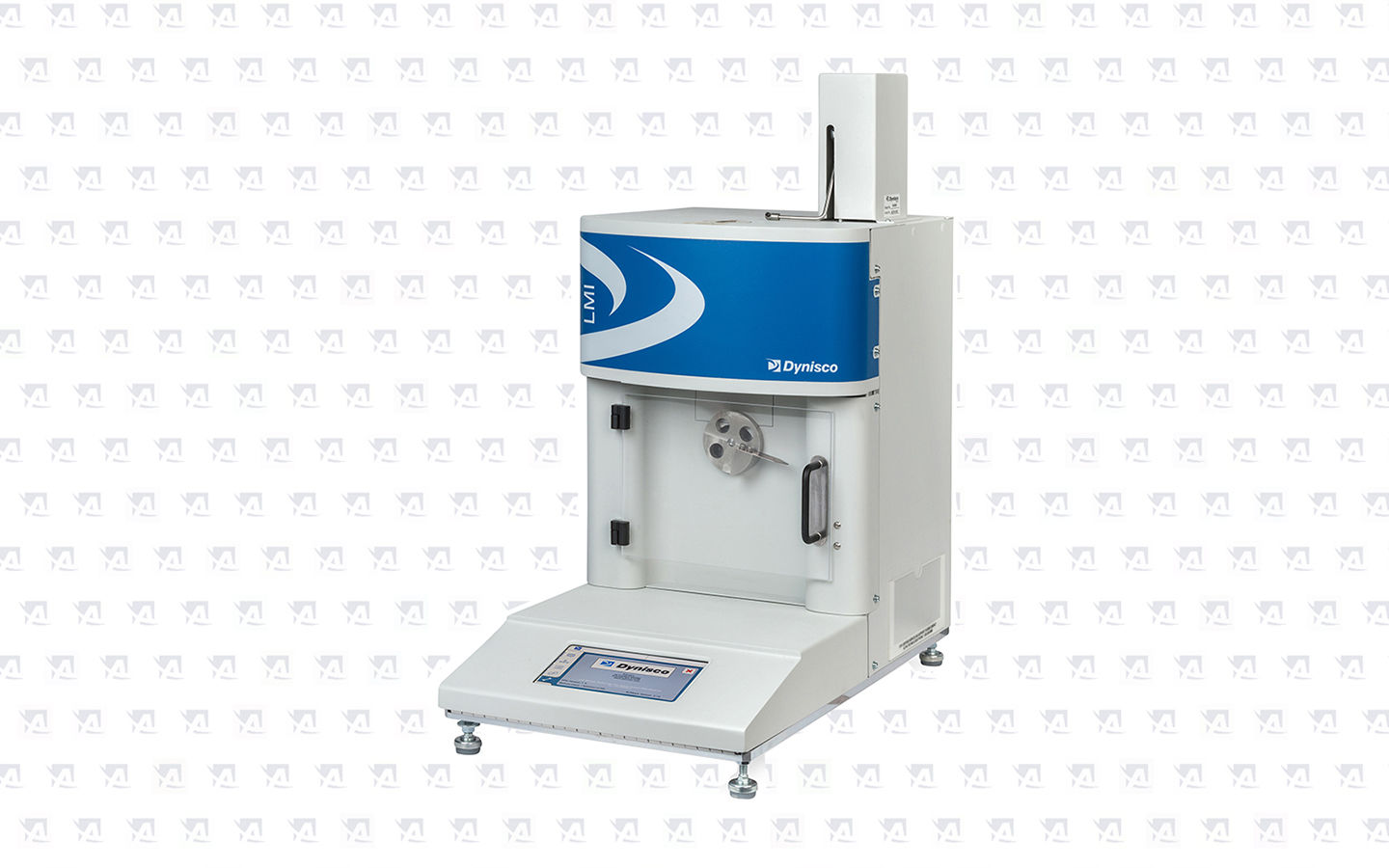

Melt Flow Indexer Dynisco LMI 5000 - Digital encoder + Auto Cut

Melt Flow Indexer Dynisco LMI 5000 - Digital encoder + Auto Cut

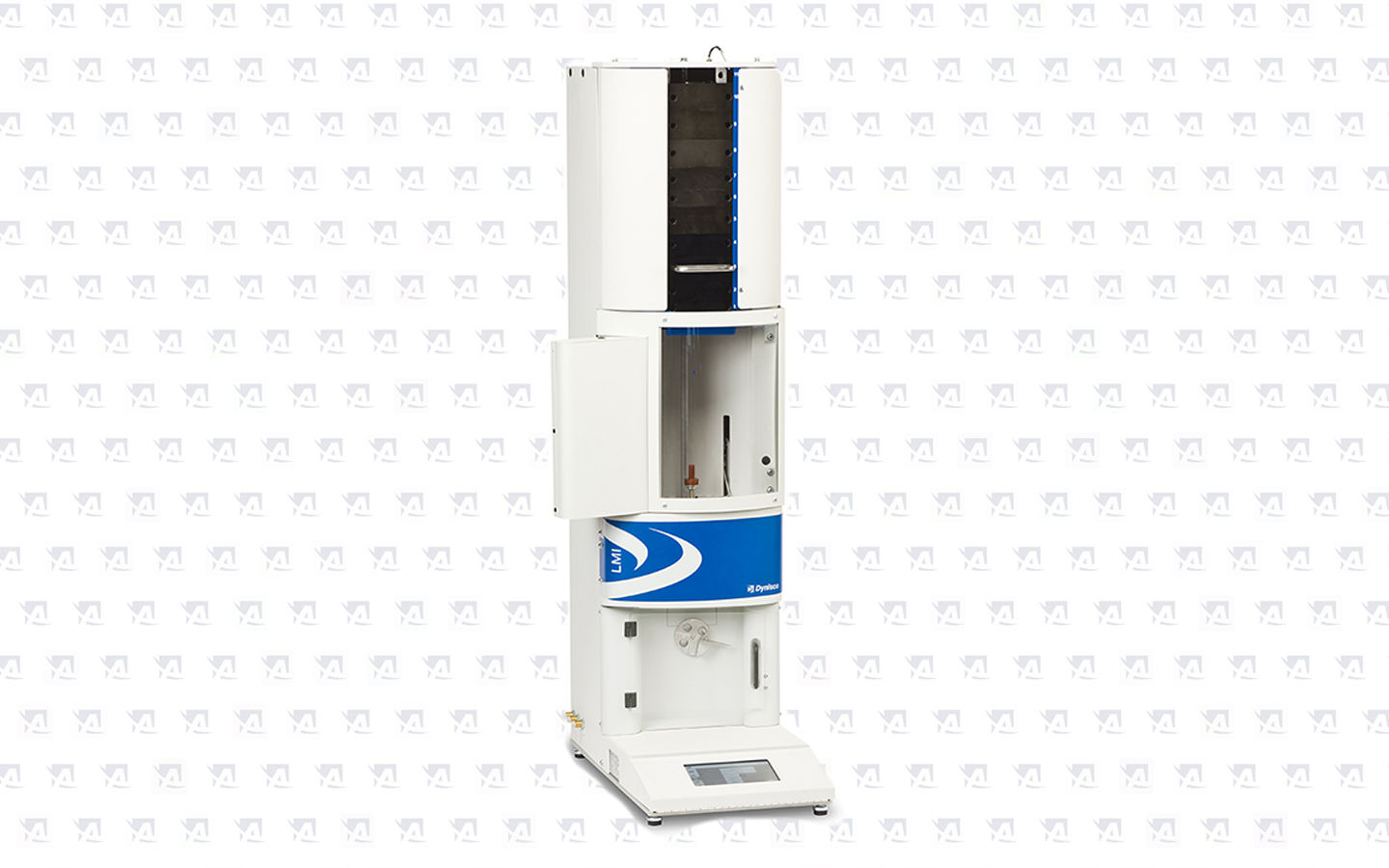

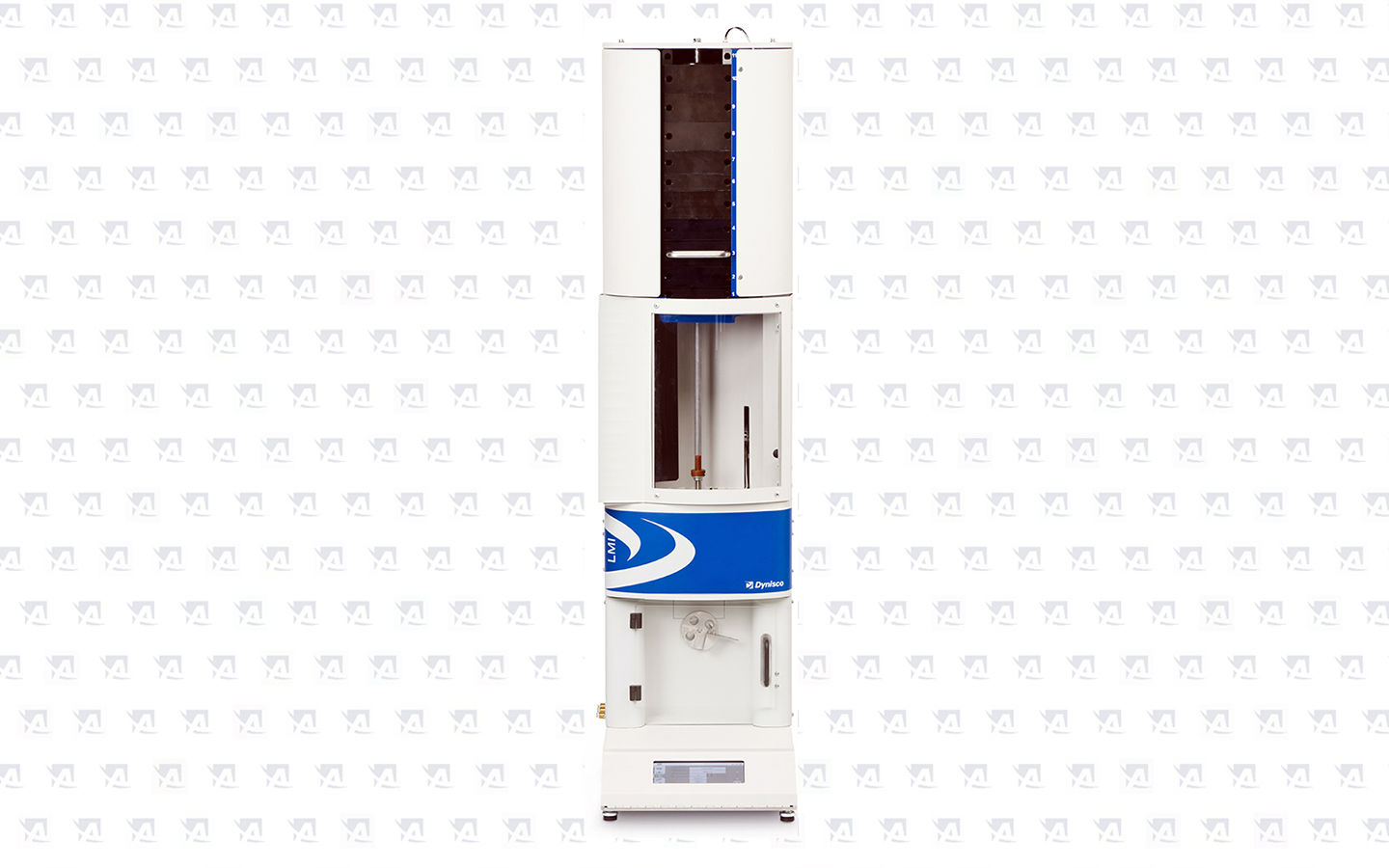

Melt Flow Indexer Dynisco LMI 5000 - Lift system, Auto Cut + Digital encoder

Melt Flow Indexer Dynisco LMI 5000 - Lift system, Auto Cut + Digital encoder

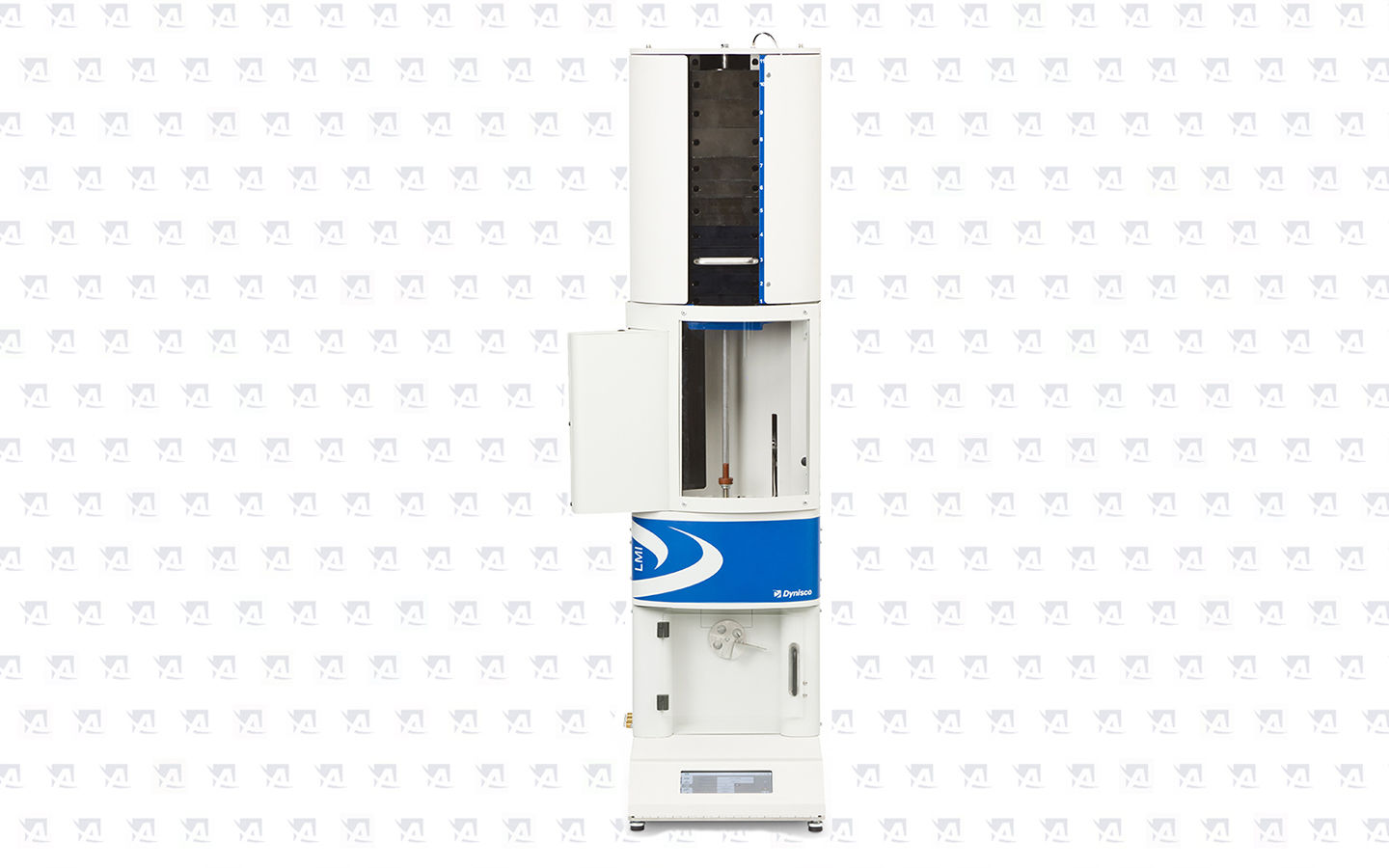

Melt Flow Indexer Dynisco LMI 5000 - Lift system, Auto Cut + Digital encoder + Force Packer

Melt Flow Indexer Dynisco LMI 5000 - Lift system, Auto Cut + Digital encoder + Force Packer

Melt Flow Indexer Dynisco LMI 5000 - Lift system, Auto Cut + Digital encoder + Force Packer

Melt Flow Indexer Dynisco LMI 5000 - Lift system, Auto Cut + Digital encoder + Force Packer

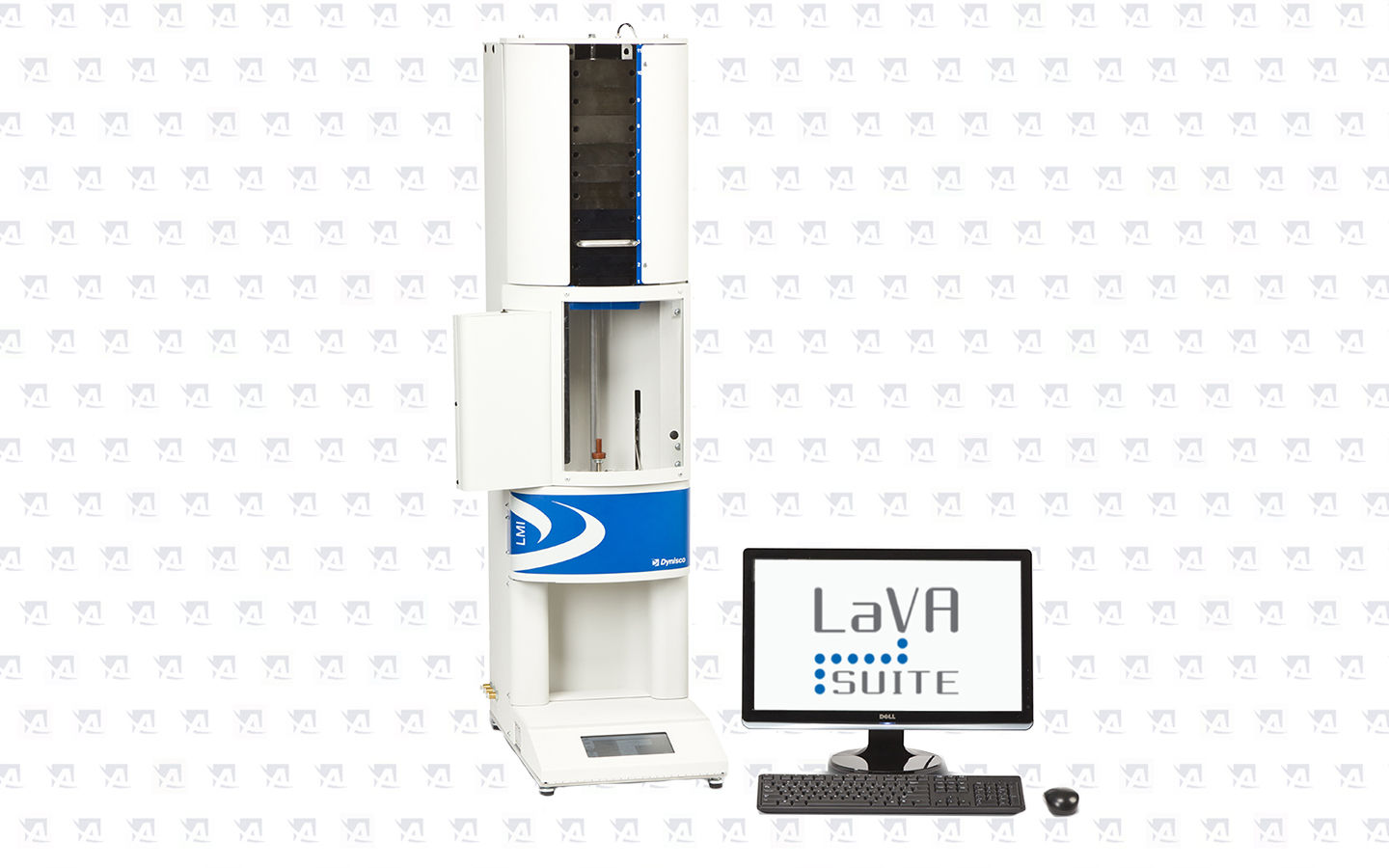

Melt Flow Indexer Dynisco LMI 5000 - Lift system, Auto Cut + Digital encoder + Force Packer + PC with LaVa suite software

Melt Flow Indexer Dynisco LMI 5000 - Lift system, Auto Cut + Digital encoder + Force Packer + PC with LaVa suite software

Acessories

Acessories

Inquiry system

Configure your own device, according to your requirements and needs. If you are not sure about the configuration, make the necessary information about the processed materials in the notes. Thanks to this information, we are able to create several offers depending on the equipment and after consultation you can choose according to your needs. If you need a comparison for tenders, we will be happy to help you find an alternative product from the Dynisco portfolio.

If you need more information do not hesitate to contact us.

Dynisco Configuration Code:

Your personal data will be processed according to Terms of personal data processing..

Digital Encoder

The Digital encoder provides a high precision measurement of piston displacement during Method A/B and B tests.Automatic Sample Cutter

Automatic Sample Cutter

Cuts samples automatically at defined cut times of Method A and Method A/B Testing. Will also cut sample at end of pre-heat melt time of a test, regardless of method. Leads to more consistent

Force Packer

The Force Packer is designed to apply a constant force to compress the sample once the opera-tor has loaded the polymer sample. This constant force promotes a level of confidence by removing variability between operators.

LaVA Suite Software

The redesigned software is capable of producing customized series of data including informa-tion about testing conditions, melt index values, shear stress, shear rate, viscosity, and apparent melt density. Through the use of this software option, these values are recorded and may be reported through various out-puts and formats.

Weight Lift System

The weight lift system allows for effortless weight application. By storing all of the weights in a stack above the LMI, selecting the weight load is as simple as moving the selector pin from one slot to the next eliminating the need for lifting weights manually. The lift system also offers a mid-position stop and hold feature for highly viscous materials.

Languages

Supports 12 languages: English, Chinese, Dutch, German, Polish, Japanese, Portuguese, Spanish, Italian, Czech, French, Russian.



Provided results

Melt flow index: MFR - Melt Flow Rate [g/10min]
Melt flow index: MVR - Melt Volume Rate [ccm/10min]
Melt density: MD - Melt Density [g/ccm]
Intrinsic viscosity (PET): IV - Instristic viscosity [dl/g]
Shear Viscosity: Shear Viscosity [Pa.s]
Shear rate: Shear Rate [1/s]





Performance parameters

Compliant Standards: ASTM D1238 & D3364, ISO 1133, BS2782, DIN 53735, JIS K7210
Operating temperature: Ambient to 500 °C
Temperature control accuracy: ±0.1 °C
Timer accuracy: 0.001 second
Accuracy of digital encoder: ±0.025mm over 25.4 mm
Display:

• 7” TFT Touch Screen

• 130° Viewing Angle

• 800 x 480 Screen resolution

• WVGA Resistive Screen Type

Weights: Aluminum, Stainless and Plated Steel 0.325 to 31.6 Kg
Communication:

USB x 2, PC Connectivity, Scale Interface, Printing and Flash Storage



Other parameters

Overall Dimensions, Base Model 13W x 25D x 20H in. (33W x 64D x 51H cm)
Overall Dimensions, Base Modelwith Lift System 13W x 25D x 51H in. (33W x 64D x 132H cm)
Weight, Base Model 47 lbs. (21.3 Kg)
Weight, Base Model with Lift
System
100 lbs. (45.4 Kg)
Shipping Weight, Base Model with Weights 180 lbs . ( 81.8 Kg)
Shipping Weight, Base Model
with Lift System
360 lbs. (163.6 Kg)

Electrical Specification

System Voltage 100-120Vac 50/60Hz or220-240Vac 50/60Hz, 500VA, + 5% , 1φ
Power 500W max., 100W typical at set point



Digital Scales Kern PCB

Standard laboratory scales with clear display, simple operation and five operating modes. The advantage of this series is the PRE-TARE function (when activated, the stored weight is automatically deducted from the current measured weight).

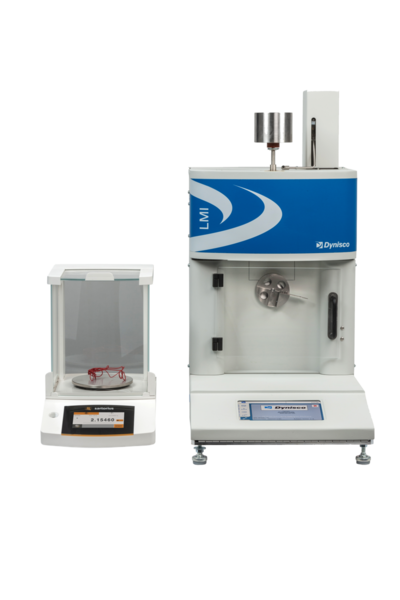

Sartorius Quintix digital scales

1192001

It belongs to the group of scales with touch control. The biggest advantage of the Quintix series is easy operation via a color touch screen. Serious applications are clearly displayed with icons, as is usual today for "smart devices". Another plus of this series is excellent data communication. Each Quintix scale is equipped with a mini USB data output with Plug & Play technology.

Software Lava Suite

The new LaVa Suite software is now available for the LMI 5000 Series capillary plastometers. It offers complete and easy management when collecting, storing and working with digital data provided by the capillary plastometer. Lava Suite ™ software enables additional generated measurement results, filtering using identifiers and comparison of individual measurements on a larger scale, including time horizons.

Edge Device - Cloud

Integrate and aggregate data from existing Dynisco products such as our LMI5000 & LMI4004 melt flow indexers, our LCR7000 capillary rheometer, and instrumentation like our UPR900 process indicator via the Dynisco Edge Device. With the Edge Device you have a single board computer that helps you better understand and manage:

Measuring piston for Melt Flow Indexers

7051-72

Certified measuring piston for Dynisco capillary plastometer with a declared weight of 100g. The piston contains 3 marked positions (lines) that show the position of the start of sampling and the end of sampling in the range of 30 mm according to ISO 1133 and a distance of 1 inch for ASTM D1238.

Cleaning cotton patches

GP0103

Cleaning wheels for laboratory instruments have high cotton quality and low dust resistance. As a result, you will always have the instrument quickly and conveniently cleaned of all polymer deposits inside the barrel. Thanks to the 100% cotton, the polymer does not smear on the barrel wall, but stays on the cotton roller, which does not tear and leaves no lint.

Knife for manual cutting

0051-53

Knife for manual cutting of the sample from the capillary melt flow indexer and for subsequent cleaning of the capillary. It is made of high quality wooden handle and mild steel, which guarantees flexible blade bending and ensures comfortable cutting of the sample.


Standard capillary 2,095 mm / 8 mm

0051-46

Standard capillary for Dynisco plastometer with an inner diameter of 0.95 mm and a length of 8 mm. The capillary is identical on both sides and is coated with a layer of Wolram Carbide, which gives the capillaries greater hardness and longer life. The capillary is used for all standard polymeric materials up to a flow index range of 0.1 [g / 10min] to 80 [g / 10min]. For higher indices, we recommend using a so-called half-capillary with half dimensions.

Half capillary 2,095 mm / 8 mm

0051-46S

The half capillary is used for polymeric materials with very low viscosity. These materials, which achieve flow indices higher than 80 [g / 10min], will slow down and their testing will be no problem. If you are going to use a half capillary, you need to adjust the capillary plastometer settings and record this change in settings.

Capillary brush

GP0310

The stainless steel capillary brush with a diameter of 2.2 mm is the ideal tool for materials that are difficult to clean with heat. Thanks to its solid construction, it is very easy and comfortable to use despite its miniature size. The brush confidently cleans all residual polymer deposits inside the capillary and thus ensures perfect measurement results.


Memmert dryer

The universally applicable Memmert laboratory dryer is a classic temperature control device in the field of research, science and materials testing. Technologically improved construction made of high quality and easy to clean stainless steel. It has ventilation and control technology (optional), protection against overheating and precisely tuned heating technology.

Inspection mirror

The inspection mirror is used for inspection when cleaning the device, thanks to the telescopic handle you can easily and without risk get everywhere where you would otherwise have to lean or lean towards places with high temperature and thus avoid the risk of burns.

Go/No-Go Roller Calibre for Capillary

0051-55

Cylindrical certified calibre for checking the capillary to the Dynisco melt flow indexer. The green end of the caliper must pass through the inner diameter of the capillary but the red end of the caliber must not pass through the diameter of the capillary. If the red end of the roller gauge passes through the capillary, it means that the capillary's inner diameter does not meet the required specifications and must be replaced.


Funnel

0051-80

The composite funnel is used for convenient filling of powders into the barrel. Its inner diameter is identical to the diameter of the filling piston, so it is possible to push the piston through it and thus ensure a comfortable passage of polymer materials without spillage.

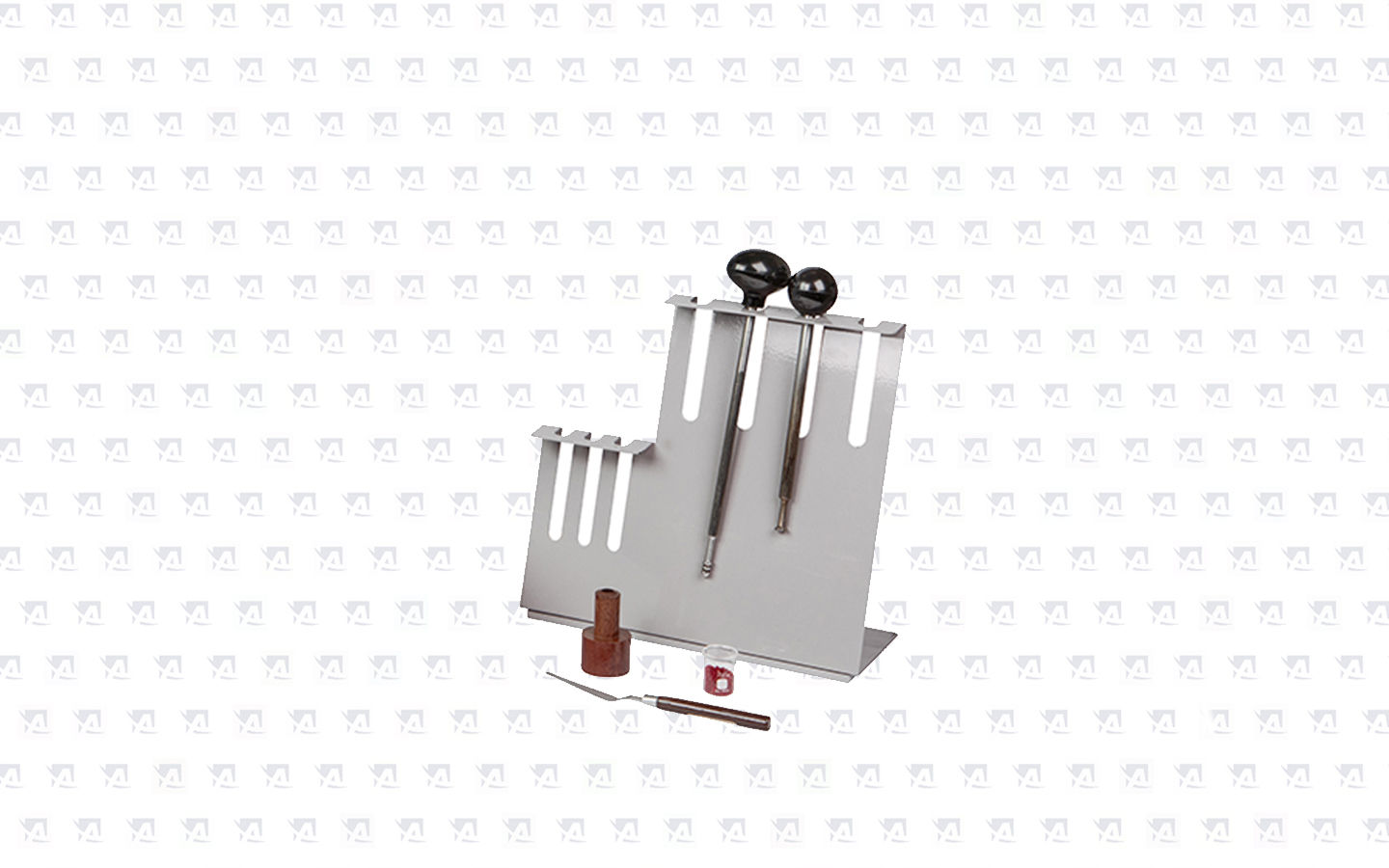

Rack for melt flow indexer accessories

6052-16

The LMI accessory rack is used to store hot or used tools that are hung in the rack. After cooling, the individual elements can be cleaned. The rack helps to keep the workbench tidy and minimise the risk of injury.


High Flow Plug

B0555

The High Flow Plug is used as a seal against leakage of a filled barrel of a polymer that has a very low viscosity.

Cleaning kit for melt flow indexers barrel

B8052-97K

Cordless angle drill for easy and quick cleaning of the melt flow indexer barrel. In combination with the cleaning mandrel with replaceable tip, this set is the best helper, which also has a positive effect on the accuracy and the results provided. It also includes an extension mandrel for attaching the brush.


Bosch Professional Angle Drill

B8052-97

Cordless angle drill for easy and quick cleaning of the melt flow indexer barrel. In combination with the cleaning mandrel with replaceable tip, this set is the best helper, which also has a positive effect on the accuracy and the results provided.


Cleaning rod (8.5in)

B8052-99A

The 8.5in (22cm) cleaning rod is used in combination with the cleaning tip and the cotton cleaning wheels. With this combination, you can clean the chamber quickly and easily using the cordless drill, with a positive effect on the accuracy of the instrument.


Cleaning tip

B8052-98

The barrel cleaning tip is used in combination with cotton cleaning patches and an extension cleaning rod. The tips are replaceable and made of aluminium to prevent damage to the melt flow indexer barrel. Nevertheless, this cleaning tip is only used with cotton patches.
