PolyClean 26 "cleaning fluid bath

PolyClean 26"

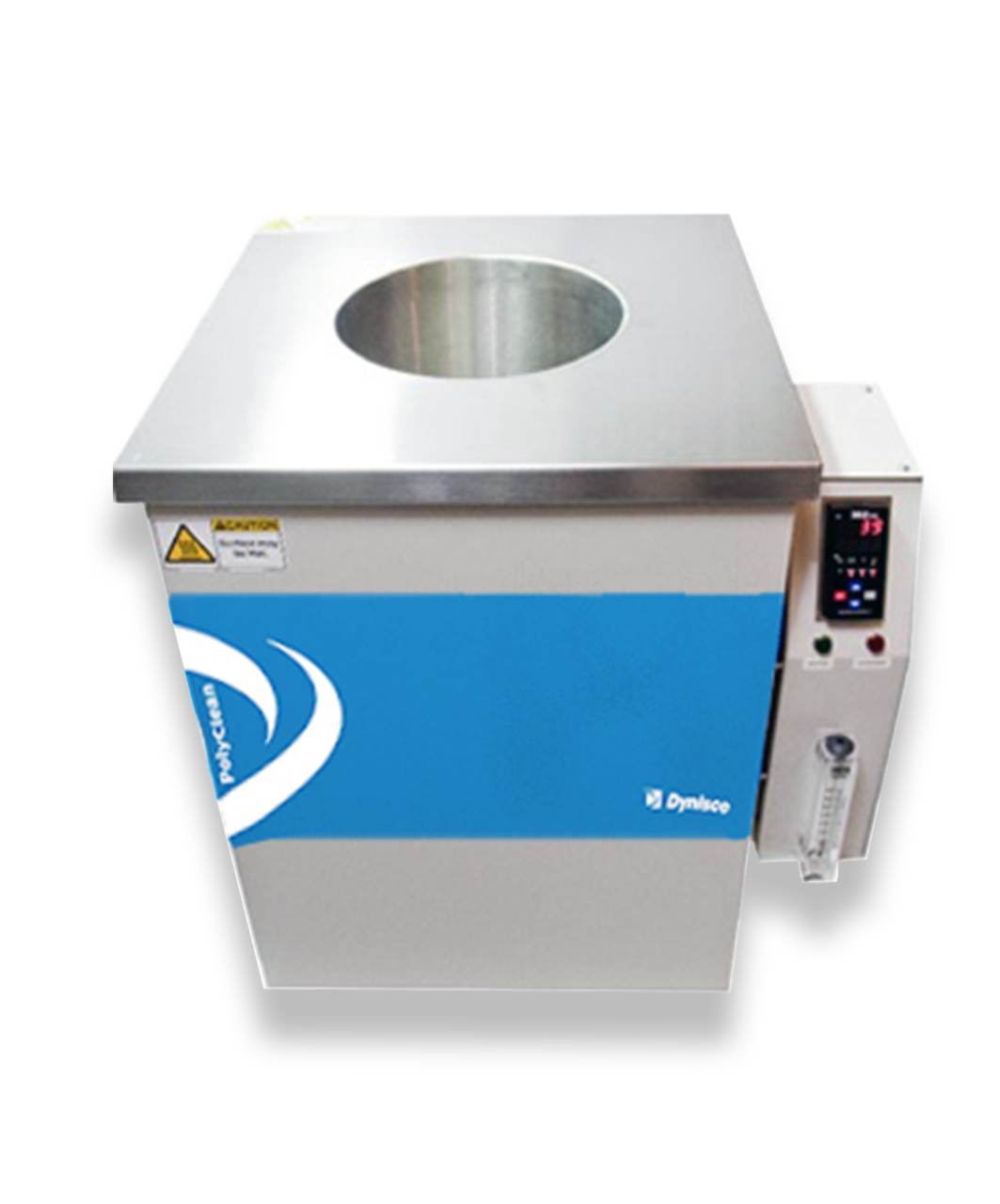

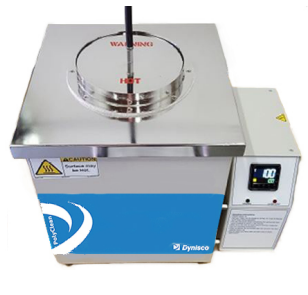

DescriptionThe Dynisco PolyClean 26L Fluidized Temperature Bath can be used to clean extrusion tooling and all other types of hardware, shape set medical devices, calibration, testing various sensors and systems, heat treatment of metals as well as heating of reactors, coils, flasks and containers. Fluidized Temperature Baths typically provide faster processing times than ovens and furnaces and are much more thermally stable and uniform. Fast heat up of immersed parts and objects is another major advantage. Fluidized baths are safer to operate than molten salt baths while immersed objects come out clean and dry with no material to remove. The PolyClean uses a PID temperature controller that has four control zones for improved thermal results. Independent over temperature protection will disable heat if the temperature exceeds 615 °C or in the event of a system failure.

Inquiry System

Configure your own device, according to your requirements and needs. If you are not sure about the configuration, make the necessary information about the processed materials in the notes. Thanks to this information, we are able to create several offers depending on the equipment and after the consultation, you can choose according to your needs. If you need a comparison for tenders, we will be happy to help you find an alternative product from Dynisco products.

If you need more information do not hesitate to contact us.

Configuration code


PERFORMANCE CHARACTERISTICS:


Temperature range:
50°C to 605°C

Dimensions, L x W x D
104 cm x 60 cm x 66 cm
  Temperature stability at 500°C ±1.5 ºC

Calibrated accuracy at 500°C
±10.0ºC
Uniformity of radial temperature at 500°C 3.0
Medium heating time to 600°C 180 minute
Power consumption 6.2 Kw (240v, one phase)
Working average 24 cm
Working depth 71 cm
Worksurface in the basket (diameter x depth) 22,5 cm x 65 cm
Maximal load capacity 23 kg
Required air pressure 40 PSI
Maximum air consumption 3.5 SCFM
Total weight of the unit 72 kg
Operating weight with alumina 163 kg
Cleaning capacity 22 kg
Cooling of the device at 200°C 210 minute

CLEANING MEDIUM:


Standard cleaning medium:
Aluminum oxide



Spacer cross into the basket

The spacer cross into the PolyClean basket serves as a transfer and allows you to insert more parts and components for cleaning in one cycle. It is made of stainless steel and the robust design allows the use of up to 4 crosses (folds on top of each other). This allows you to use the entire length / depth of the basket.

Adapters for cleaning pressure sensors

Adapter for pressure sensors to the PolyClean system. It is used for cleaning pressure sensors. Adapter design protects the sensor from the radiant heat of the system. The side holes in the adapter serve to easily pour the alumina back into the polyClean system. The adapter includes locking rings for sensors, thanks to which it is possible to select the depth of immersion of the sensor tip.

Certification Approval



EU Declaration of Conformity

ISO 9001:2015

EAC - The Eurasian Conformity mark

RoHS Compliance Fact Sheet
