MDA 435 - Melt pressure sensor with flexible and exposed capillary

MDA 435

The MDA 435 models are robust and reliable sensors. These models are equipped with a flexible and exposed capillary for easy installation and use in extremely cramped conditions or deviation of the sensor measuring head from the radiant heat of the machine.

The entire MDA range provides an industry standard with a 3.33 mV/V output signal designed to work with most pressure indicators and regulators. This sensor model is equipped with an eight-pin Bendix connector and a 1/2 "-20 UNF 2A or M18x1.5 mounting thread.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

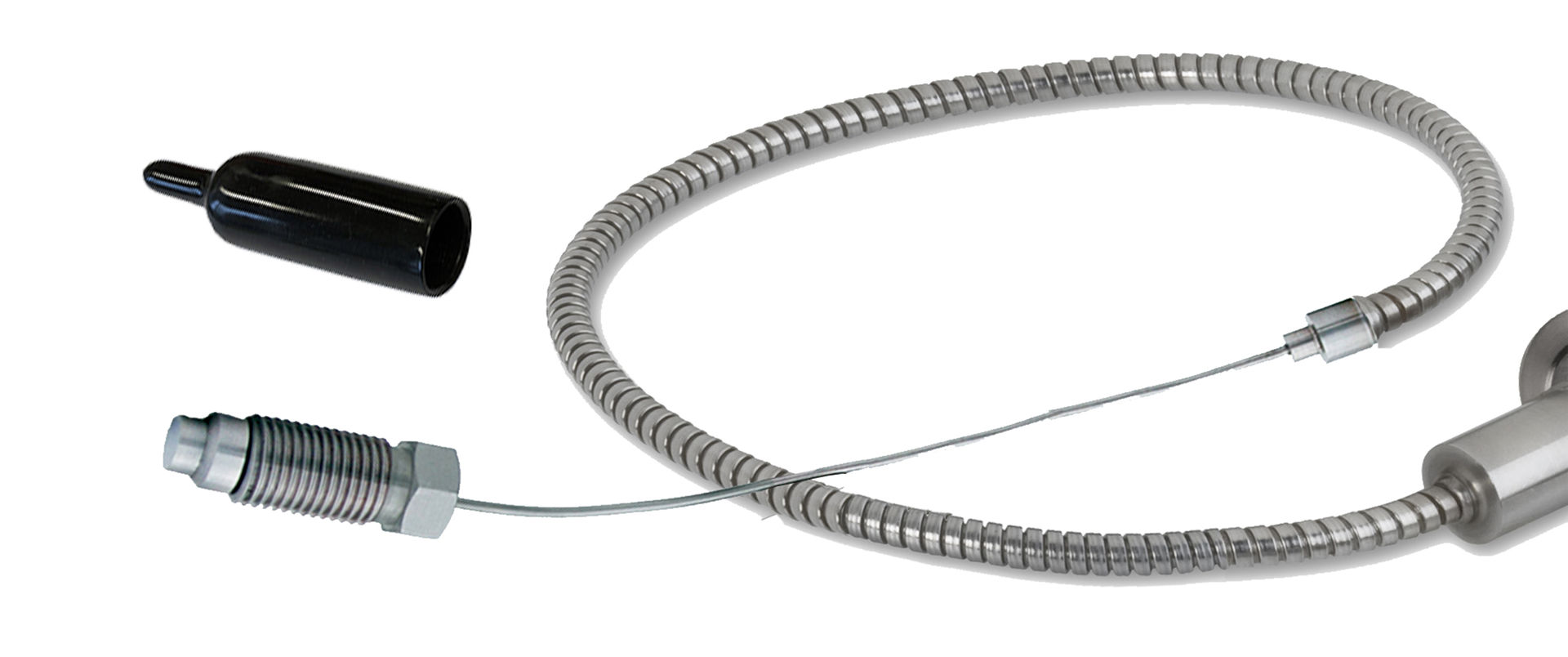

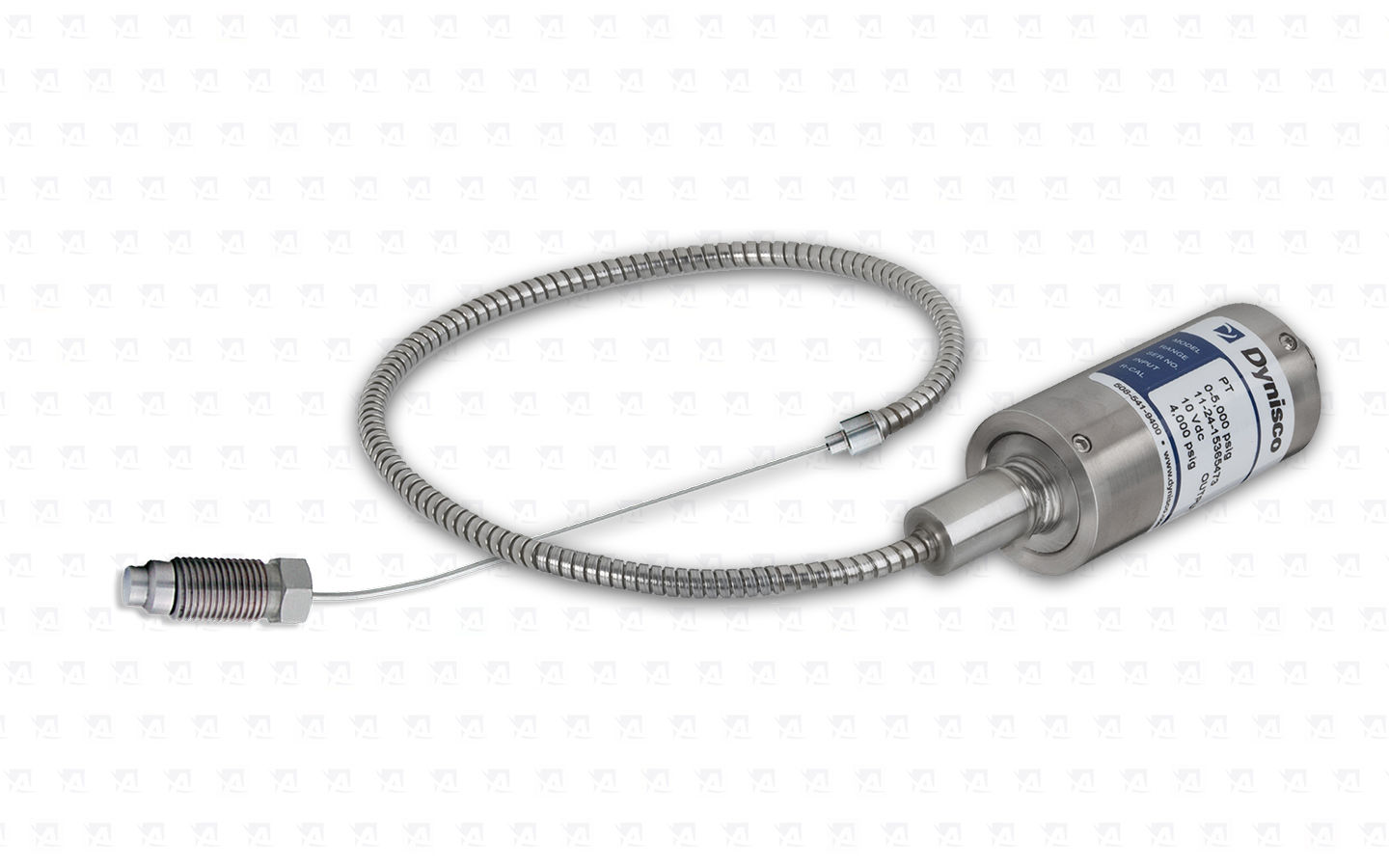

MDA 435 - Melt pressure sensor in design with exposed capillary

MDA 435 - Melt pressure sensor in design with exposed capillary

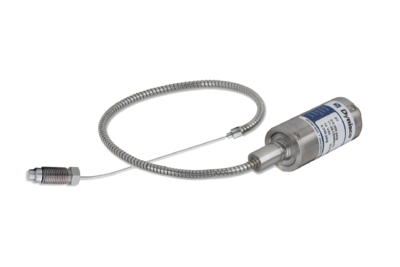

MDA 435 - Melt pressure sensor in design with exposed capillary

MDA 435 - Melt pressure sensor in design with exposed capillary

Sensor terminal and compatible cable connector

Sensor terminal and compatible cable connector

PERFORMANCE CHARACTERISTICS



Pressure range:
0 - 35 bar to 0 - 2 000 bar
Accuracy:
± 0.5% of range (including linearity, repeatability and hysteresis)
Overload capacity:
2x pressure range for range 1000 and 1400 bar max. 1750 bar and max. 2400 bar for range 2000 bar
  Repeatability: ±0.1% f.s.v
  Material in Contact with Media: 1/2 "-20 UNF-2A or M18 x 1.5...
  Sensor connection: 1/2 "-20 UNF-2A or M18 x 1.5
  Mounting torque: 25 Nm - 55 Nm
  Burst Pressure: 6x pressure range max. 3000 bar
  Sensor construction: MDA 435 - Sensor with flexible and exposed capillary

TEMPERATURE CHARACTERISTICS



Max. membrane temperature:
400°C
Zero shift (due to temperature):
 <0.2 bar / 10°C
-------------------------------------------
------------------------------------------------------------------
  Max. sensor body temperature: 120°C
  Zero shift (due to temperature): ±0.2% f.s.v./10°C
  Shift sensitivity (due to temperature): ±0.1% f.s.v./10°C (up to 50 bar ±0.2% f.s.v./10°C)

ELECTRICAL CHARACTERISTICS




Supply Voltage:
10 Vdc - 12 Vdc
Output signal:
3.33 mV/V
Zero setting:
±5% f.s.v
Connector: 8 PIN konektor Bendix
Leakage Resistance: 1000 MΩ při 50Vdc
Strain Resistance: 350Ω
Internal Shunt Calibration: 80 % cel. rozsahu ± 0.50% celkového rozsahu

SENSOR DIMENSIONS:

CONNECTOR WIRING DIAGRAM:





Certification Approval



EU Declaration of Conformity for Flush Mount mV/V  Output

ISO 9001:2015

EAC - The Eurasian Conformity mark

GOST Approval

RoHS Compliance Fact Sheet
