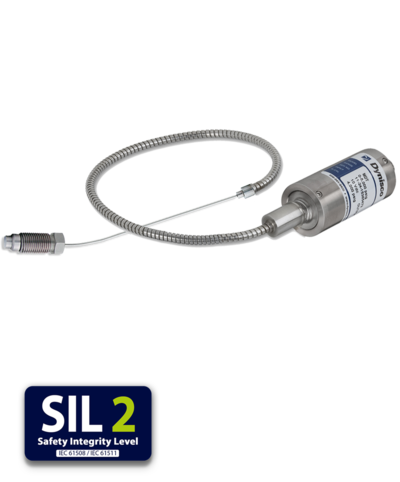

MDT 435
The MDT series signal amplifiers convert the process pressure into an amplified signal for long-distance transmission without interference. All models are available in 4-20 mA, 0-5 VDC and 0-10 VDC, 2-, 3- and 4-wire variants. Many of the features found in the standard Dynisco MDA series have been incorporated into the enhanced MDT series, including the proven strain gauge sensor design for stable operation, including the flexible capillary design. Including the possibility of internal digital calibration R-Cal.
All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

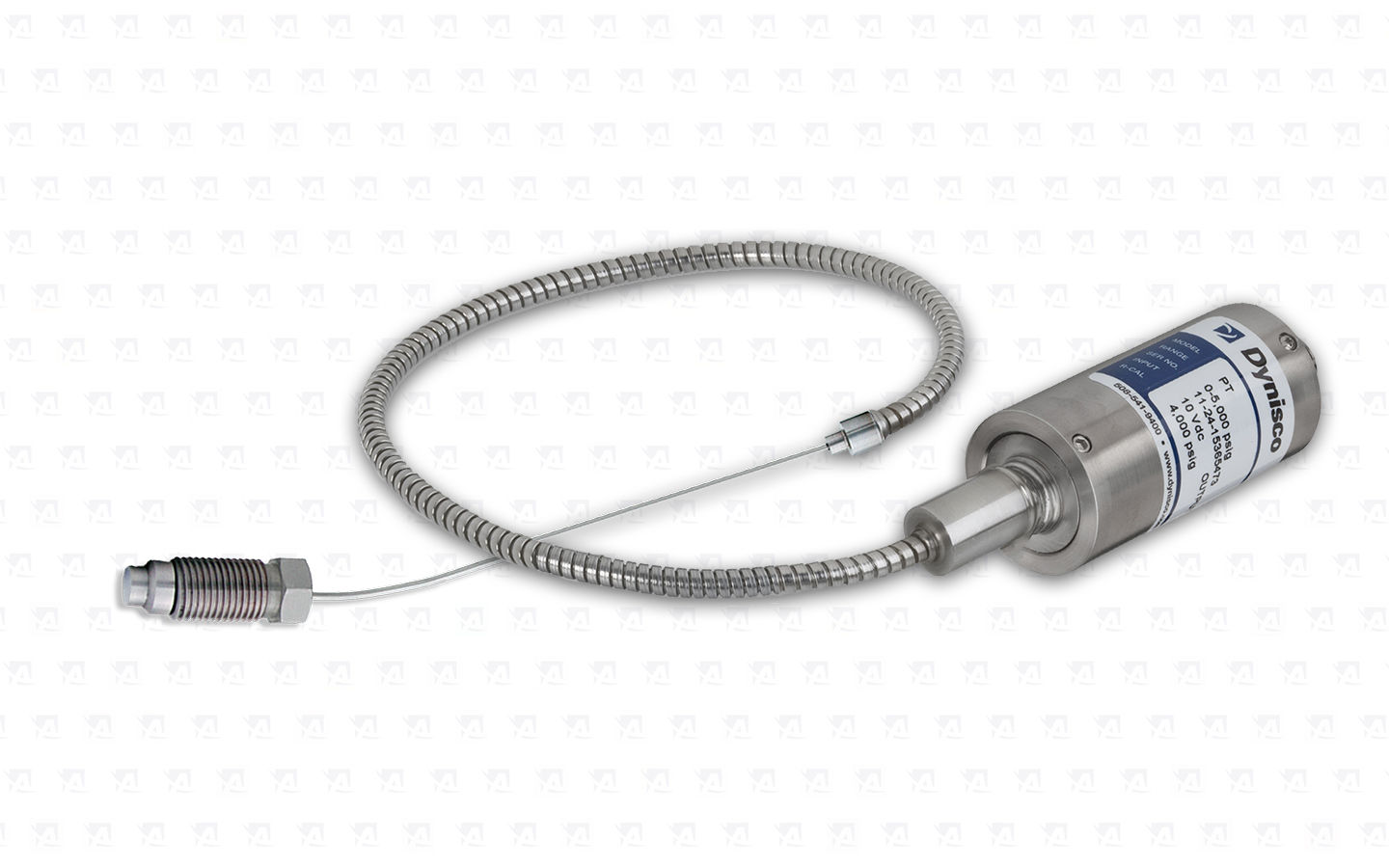

Melt pressure sensor in design with exposed capillary

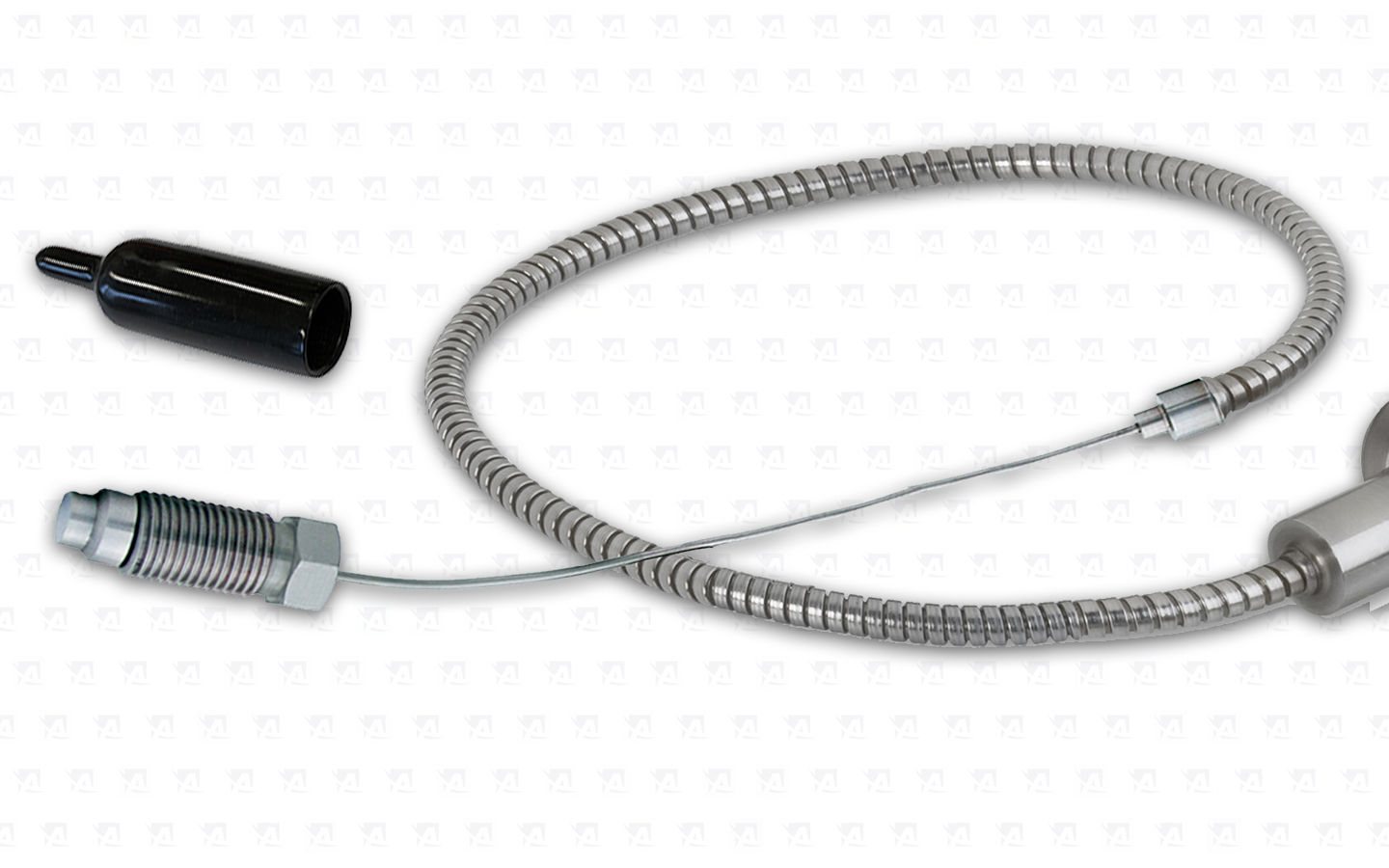

Melt pressure sensor in design with exposed capillary

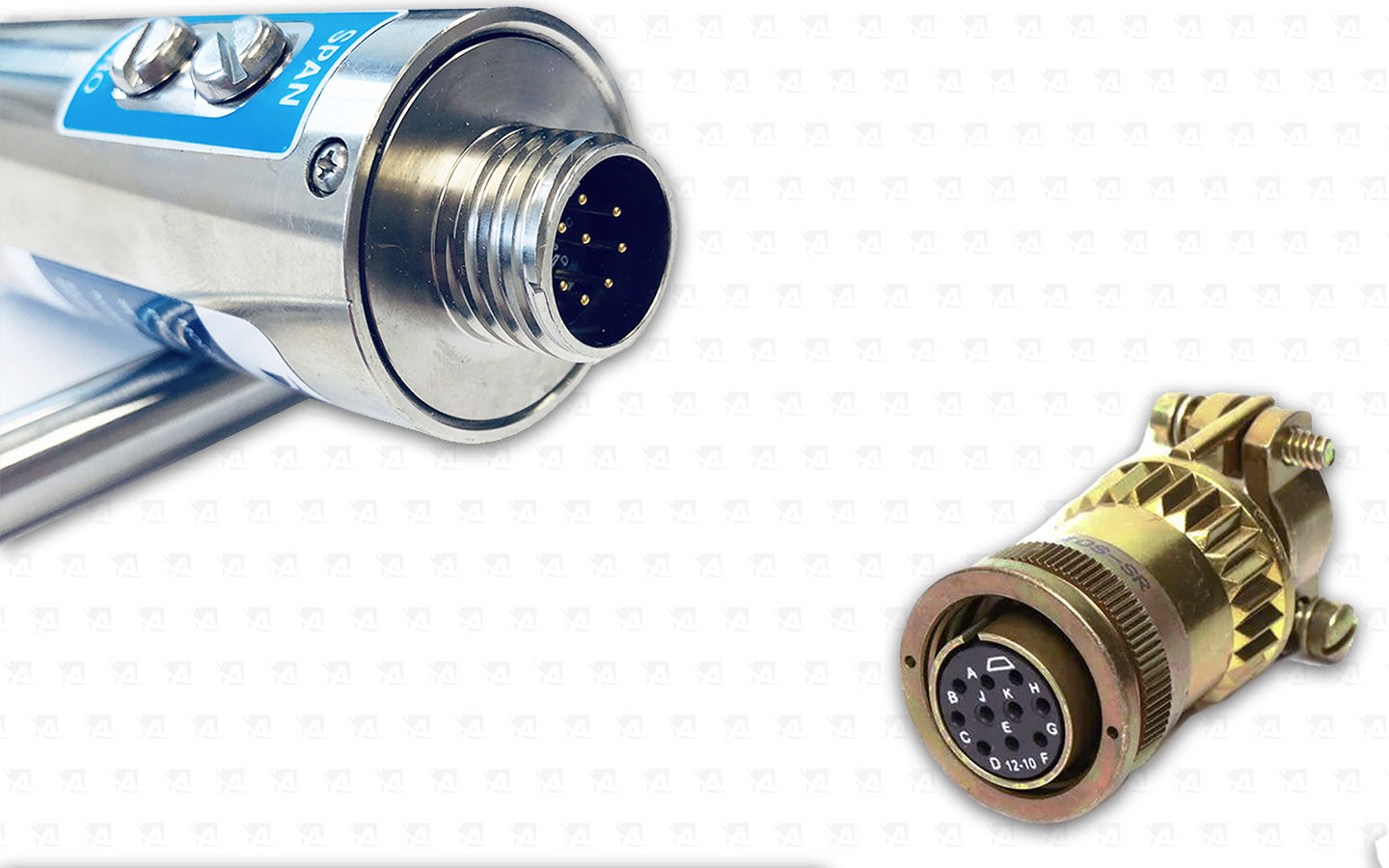

Sensor terminal and compatible cable connector

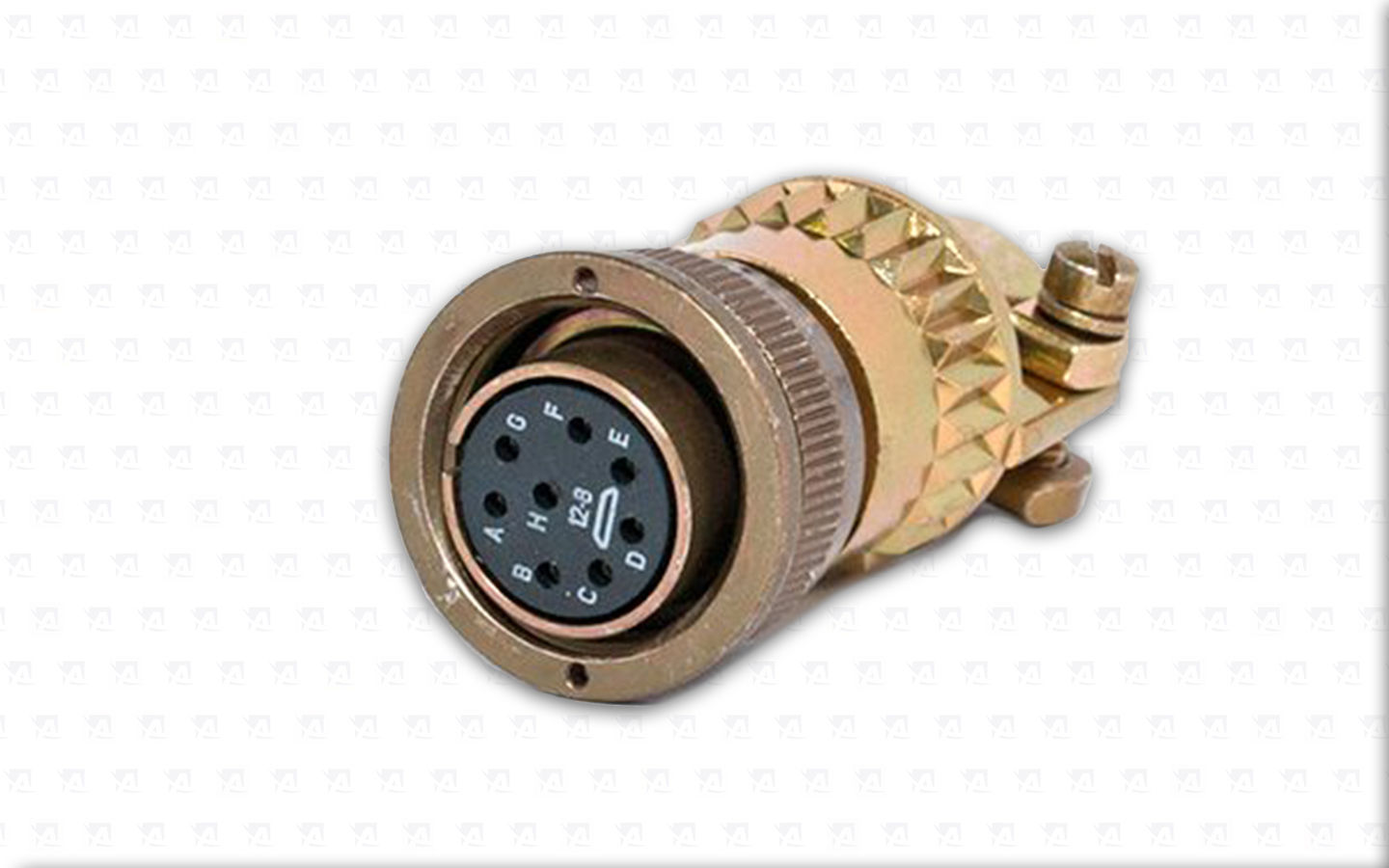

Detail - screw cable connector Amphenol 8-PIN
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco configuration code:
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
from 0 - 17 bar to 0 - 2 000 bar
|
|
Accuracy:
|
± 0.50% FSO, (Including linearity, repeatability and hysteresis)
|
|
Overload capacity:
|
2x f.s.v for 1000 bar
for a range of 1400 maximum 1750 bar
for the 2000 range maximum 2400 bar
|
|
Repeatability: |
0.2 % f.s.v |
|
Material in Contact with Media: |
15-5 PH coating of Dynmax® |
|
Sensor connection: |
1/2 "-20 UNF-2A or M18 x 1.5 |
|
Mounting torque: |
25 Nm - 55 Nm |
|
Burst Pressure: |
with Burst pressure 6 x f.s.v. max 3000 bar |
|
Sensor construction: |
MDT 435 - Sensor with flexible and exposed capillary
|
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
400°C
|
|
Zero shift (due to temperature):
|
0.4 bar / 10°C
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
Max. sensor body temperature: |
85°C |
|
Zero shift (due to temperature): |
0.2 % f.s.v / 10°C |
|
Shift sensitivity (due to temperature): |
0.4 % f.s.v / 10°C |
ELECTRICAL CHARACTERISTICS
|
MDT4X0 F
|
Two-wire configuration output signal with [mA]
|
|
Output signal:
|
4 - 20 mA
|
|
Supply Voltage:
|
10 Vdc - 36 Vdc
|
|
Nastavení nuly: |
-2 % / + 5% f.s.v |
|
Insulation resistance: |
1.2KΩ při 36V DC, |
|
|
|
|
MDT4X0 K / L / M / N |
Three-wire configuration output signal in [V] |
|
Output signal: |
K=(0-5Vdc) L=(0-10Vdc) M=(1-6Vdc) N=(1-11 Vdc) |
|
Supply Voltage: |
15Vdc - 32 Vdc |
|
Insulation resistance: |
>5KΩ >5KΩ >10KΩ >10KΩ |
|
|
|
|
MDT4X0 G / H |
Four-wire configuration output signal in [V] |
|
Output signal: |
G=(0-5Vdc) H=(0-10Vdc) |
|
Supply Voltage: |
Two-wire ± 10Vdc to ± 16 Vdc
Single wire ± 19Vdc to ± 32 Vdc
|
|
Insulation resistance: |
>5KΩ / >10KΩ |
SENSOR DIMENSIONS:
Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)
Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.
Indicator 1490 is a universal device with one or two configurable alarms, optional linear process variable retransmission, optional pressure sensor power supply, and optional Modbus communication.
The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.
The ATC 990 series controller is a time-tested product that has received a new design and new functions. Compared to classic features such as pressure, temperature and alarm setting options, these new models are enhanced with the ability to monitor and record parameters to a USB drive, the undeniable advantage is the large display and interactive environment when setting up the controller.
The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
