PT 4194 (Oil) 4-20mA
PT4194 sensors provide an industry standard 4-20 mA amplified signal designed to work with DCS and PLC. It is a sensor with ± 0.5% accuracy ideal for the food or pharmaceutical industry requiring easy installation, repeatability and reliability. It is filled with mineral oil that meets the requirements of FDA 21 CFR 178.3620, 21 CFR 172.878 and 21 CFR 573.680.
The PT4194 is equipped with a new automatic zero calibration function. Auto-Zero gives the user the ability to install the sensor right out of the box and perform a calibration at the touch of a button. Combined constructions with thermal thermocouple or RTD are also available. The PT4194 comes with a 1 / 2-20 UNF mounting thread for simple and easy installation for standard mounting holes.

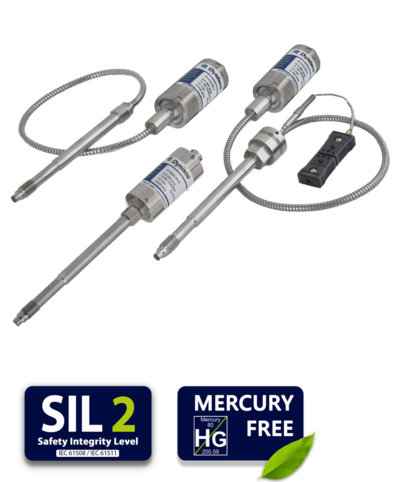

Melt pressure sensor in a design with a fixed stem
Melt pressure sensor in a design with a flexible capillary
Melt pressure sensor in combined design with temperature sensor
Melt pressure sensors series
Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.
Sensor terminal and compatible cable connector
Adjusting screws - used to adjust the zero and upper range of the sensor
Detail - Bayonet cable connector Amphenol 6-PIN
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco Configuration Code:
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
0 - 10 000 psi
|
|
Accuracy:
|
0.5% FSO, (Including linearity, repeatability and hysteresis) |
|
Overload capacity:
|
2 x FSO (full range sensor)
|
|
Repeatability: |
± 0.2% FSO (full sensor range) |
|
Sensor diaphragm: |
DyMax ™ coating, 15-5 PH SST |
|
Sensor connection: |
1/2"-20 UNF-2A |
|
Mounting torque: |
500 inch/lbs. maximum |
|
Sensor construction: |
Sensor with rigid stem
Sensor with rigid stem and flexible stem
Combined sensor with rigid stem, flexible stem and built-in temperature sensor |
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
275°C
|
|
Zero shift (due to temperature):
|
65 psi/100°C
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
Max. sensor body temperature: |
85°C |
|
Zero shift (due to temperature) |
± 0.1% FS/°C max |
|
Displacement sensitivity (due to temperature) |
± 0.04% FS/°C max |
ELECTRICAL CHARACTERISTICS
|
Power supply:
|
14 - 36 Vdc
|
|
Output signal:
|
4 - 20 mA
|
|
Zero setting:
|
± 10% FSO
|
|
Connector: |
6 Bendix PIN connector |
|
Insulation resistance: |
1000 megohms @ 50 Vdc |
|
Resistance calibration (R-Cal): |
80% of duty. range ± 0.50% of the total range |

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)
Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.
Indicator 1490 is a universal device with one or two configurable alarms, optional linear process variable retransmission, optional pressure sensor power supply, and optional Modbus communication.
The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.
The ATC 990 series controller is a time-tested product that has received a new design and new functions. Compared to classic features such as pressure, temperature and alarm setting options, these new models are enhanced with the ability to monitor and record parameters to a USB drive, the undeniable advantage is the large display and interactive environment when setting up the controller.
The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
Certification & Approval
 |
|
 |
|
 |
EAC - The Eurasian Conformity mark
|
 |
GOST Approval
|
 |
|
 |
Safety Integrity Level - SIL2
|
|
|
|
|
|
|
