Strand pelletizer for strand pelletizing and dry cut pelletizing for the production of thermopalstic pellets – SGS 100/200/300-E6

SGS 200-L / SGS 300-L / SGS 400-L

The strand pelletizers of the SGS series are used for the production of thermoplastic pellets for strand pelletizing and dry cut pelletizing. In order to withstand everyday production conditions, the technology of a pelletizer must be extremely robust, which is exactly how the technology is in a Scheer pelletizer. A Scheer pelletizer offers a unique combination of longevity, economy, performance, and quality thanks to its compact design, deposit-free cutting chamber, double shell design, and perfect fine tuning of the cutting tools.

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative MAAG products. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences.

If you need more information do not hesitate to contact us.

MAAG Configuration code

Model peletizeru: Model peletizeru:
Your personal data will be processed according to Terms of personal data processing..

​​TECHNICAL DATA

Pellrtizer Type: SGS 200-L  SGS 300-L SGS 400-L
Working width: mm 200 300 400
Strand speed1 : m/min 30-120 30-120 30-120
max. No. of Strands2 : ca. 40 60 80
Power: kW 11 15 18,5
Type of Drive: měnič
PRODUCT Spec. Gravity (g/cm3 ) Throughput kg/h Pellet Dimensions (mm), Ø 3 x 3 longss
PP, PE 0,90 1715 2575 3435
PA 11, P 12 1,0 1905 2860 3815
PMMA, GPPS, SAN, ASA  1,05 2000 3005 4005
HIPS, ABS 1,05 2000 3005 4005
PA6 n.e (dia 2,5 x 2,5 mm long) 1,10 1515-52 Strands 2270-78 Strands 3030-104 Strands
PUR 1,10 2095 3145 4195
PA6.6 1,15 1970 2960 3725
PET, PBT, PC 1,20 2060 3090 3890
PET, PBT, PC, PA6.6, PA6 +15 - 50 & GF 1,30 1980 2790 3470

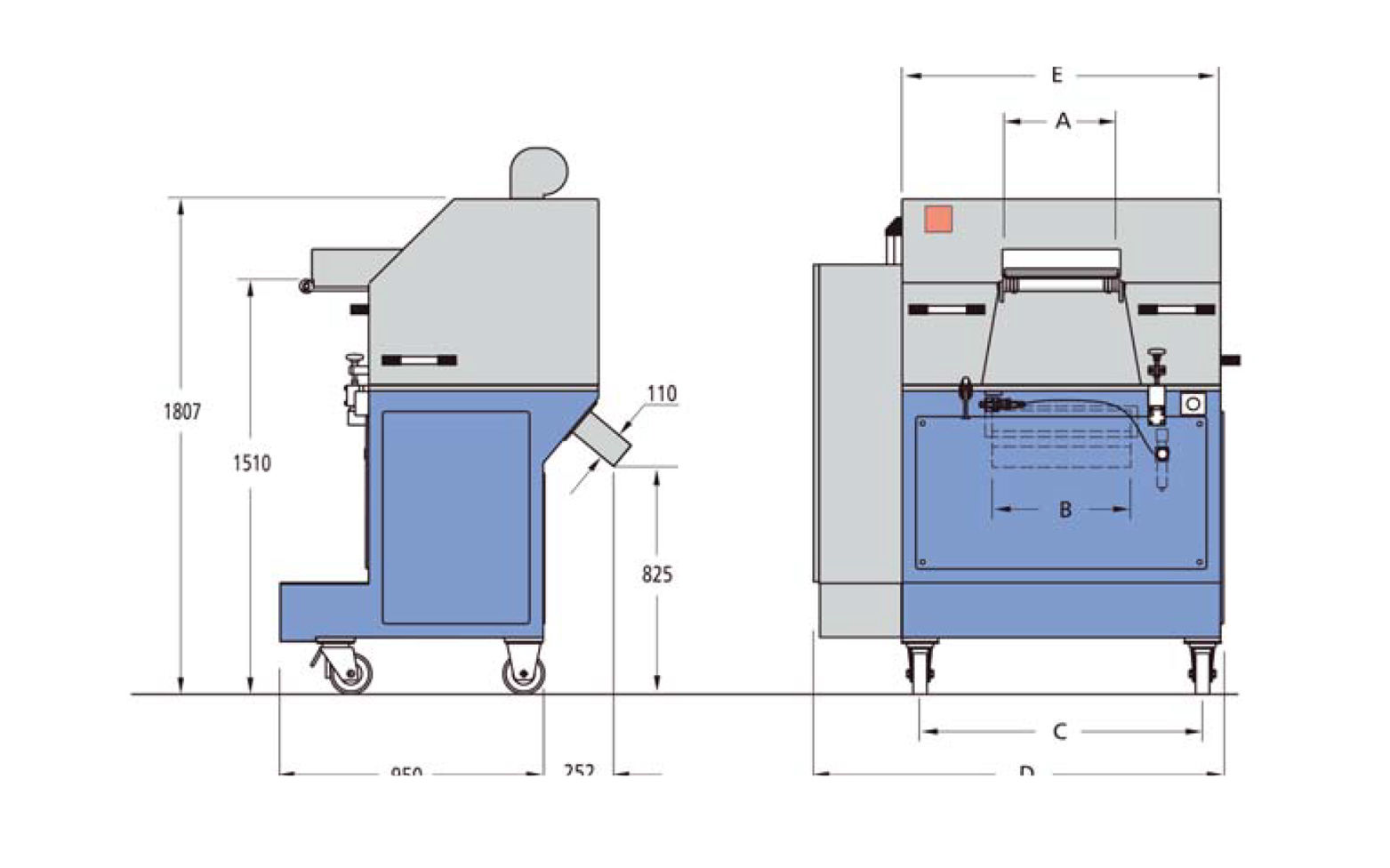

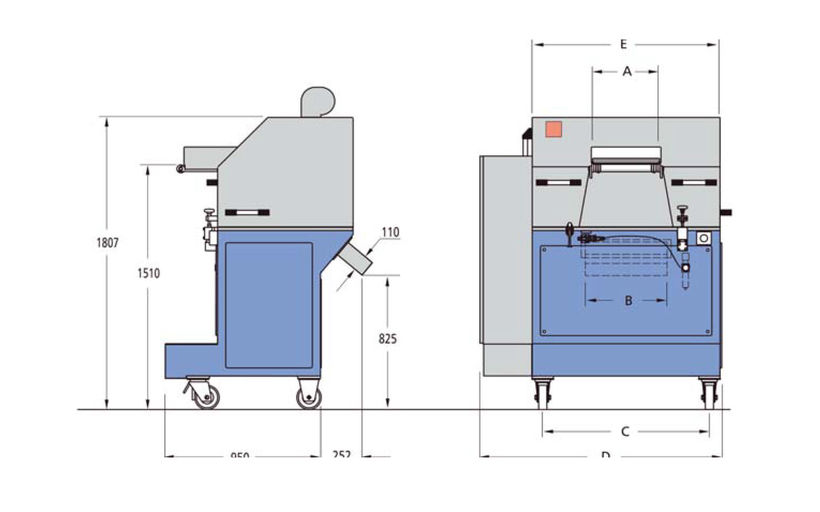

Dimensions
A mm 190 290 390
B mm 206 422 450
C mm 840 940 1040
D mm 1260 1360 1460
E mm 950 1050 1150
