830 | 850 | 860

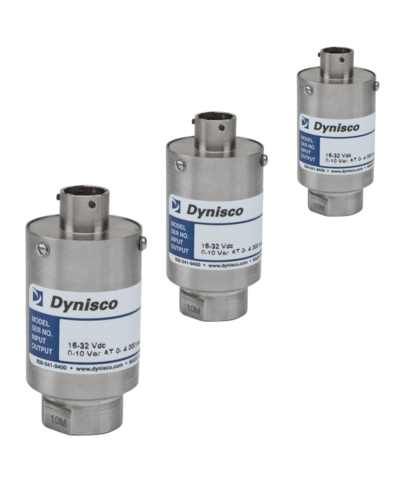

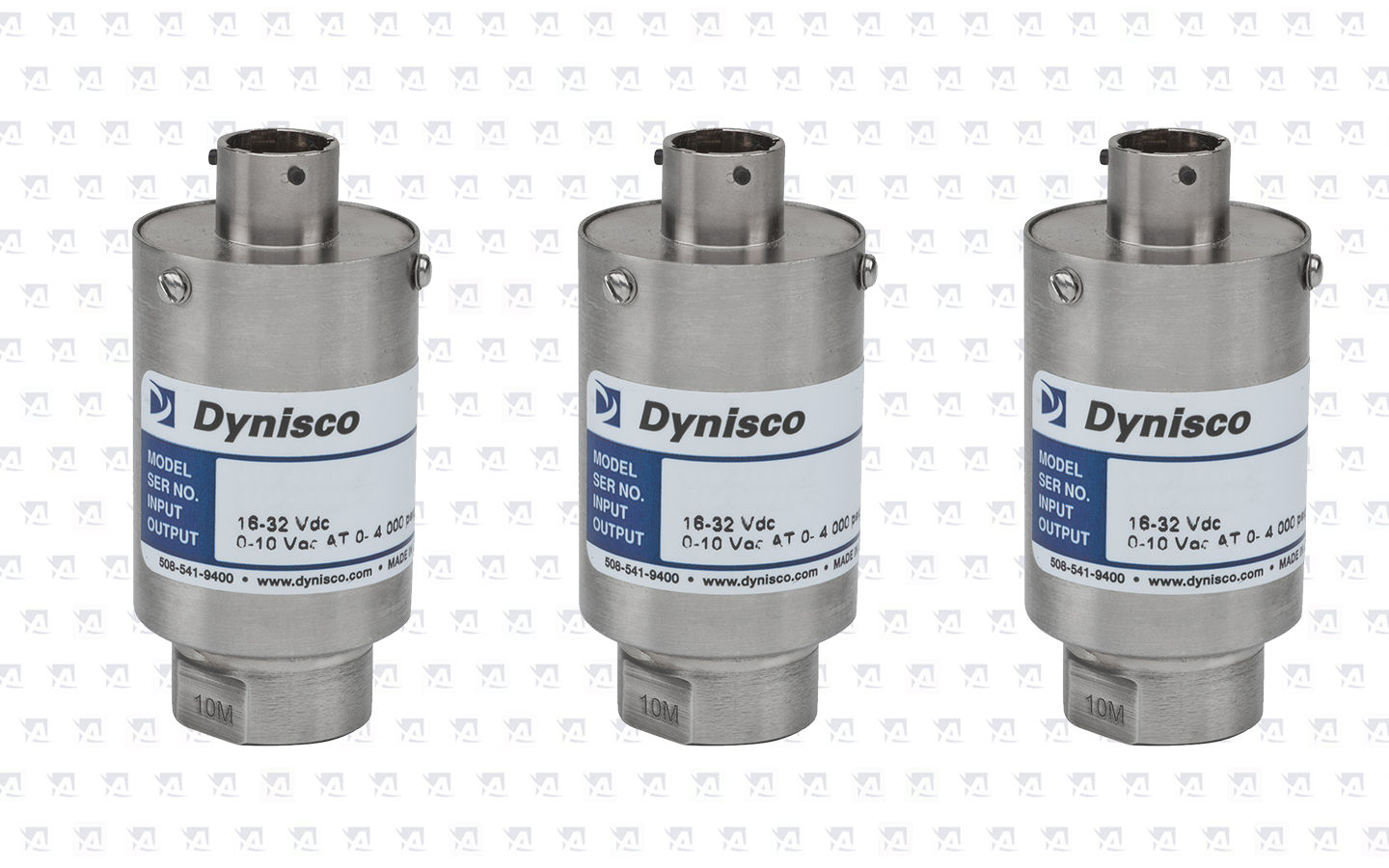

Models 830, 850 and 860 are sensors for general use, offering flexible design and accuracy of pressure measurement ± 0.50% of full range. The optional configuration allows users to specify pressure ranges, mounting connections and output signals that meet specific application requirements. The compact sensor ensures reliable operation in a wide range of industrial applications.
PT 830 | 850 | 860 - Industrial - pressure sensor - Dynisco
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco Configuration Code:
High Accuracy, Simple Installation, Repeatability And Reliability
Interchangeable configuration allows users to specify the pressure range, pressure port and output level that meet specific application requirements. A bonded strain gauge sensor provides reliable operation in a wide range of industrial applications.
The 830/850/860 Series includes models G830, S830, A830, G850, S850, A850, G860, S860, and A860.
⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.
830 | 850 | 860 Series
Dynisco models 830, 850, and 860 general purpose transducers offer flexible design and a pressure measurement accuracy of ±0.50% full scale output. Interchangeable configuration allows users to specify the pressure range, pressure port and output level that meet specific application requirements. A bonded strain gage sensor provides reliable operation in a wide range of industrial applications.
Performance Characteristics
| Pressure Range: | 0 - 30 000 PSI |
|---|---|
| Accuracy: | ±0.5% FSO including linearity, hysteresis, and repeatability |
Electrical Characteristics
| Full Scale Output: | 830: 3 mV/V ±2.0% 850/860: 5 Vdc/10 Vdc |
|---|---|
| Input/Output Resistance: | 830: 425 ±75 Ohms/375 ±25 Ohms |
| Zero Balance: | 120°C |
| Zero And Span Adjustment: | 850/860: ±5% FSO |
| Excitation: | 830: 10 Vdc recommended, 15 Vdc maximum 850: ±12 to ±16 Vdc, 24 to 32 Vdc 860: ±14 to ±16 Vdc, 24 to 32 Vdc |
| Insulation Resistance: | 830: 1,000 megohms @ 50 Vdc 850/860: 100 megohms @ 50 Vdc |
| Internal Shunt Calibration: | 30/850/860: 80% ±0.5% FSO (typical) 80% ±1% FSO (maximum) |
| Input Current: | 850/860: 45 mA (maximum) @ 2K load |
Temperature Characteristics
| Operating Range: | 830: -65° to +250°F (-54°C to +120°C) 850/860: -20° to +185°F (-29°C to +85°C) |
|---|---|
| Compensated Range | 830/850/860: 0° to 150°F (-18°C to +66°C) |
| Temperature Effect On Zero: | 830/850/860: ±0.01% full scale/°F (±0.018% full scale/°C) typical; ±0.02% full scale /°F (±0.036% full scale/°C) maximum |
| Temperature Effect On Span: | 830: ±0.01% full scale/°F (±0.018% full scale/°C); 850/860: ±0.02% full scale /°F (±0.036% full scale/°C) |
Mechanical Characteristics
| Safe Overpressure: | 1.5 x rated pressure |
|---|---|
| Burst Pressure: | 100 to 250 psi: 10 x rated pressure 500 to 3,000 psi: 5 x rated pressure 5,000 to 10,000 psi: 3 x rated pressure 15,000 to 30,000 psi: 2.5 x rated pressure |
| Wetted Material: | 17 - 4 PH, 15 - 5 PH stainless stee |
| Cover Material: | 303, 304 stainless steel |
| Weight: | 850/860: Approximately 17 ounces; 830: 13 ounces |

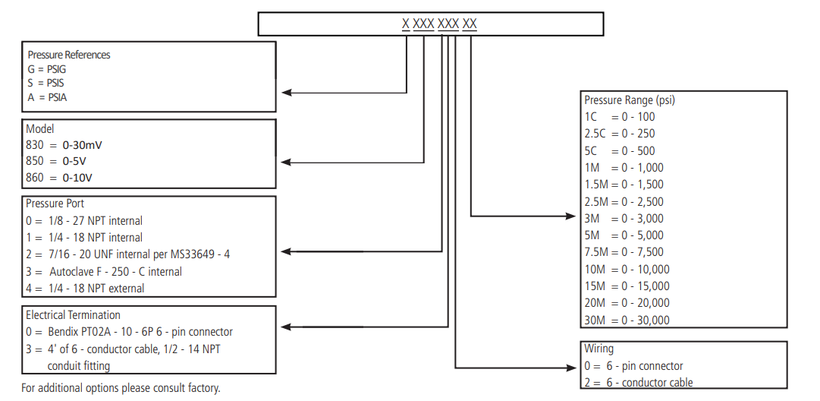

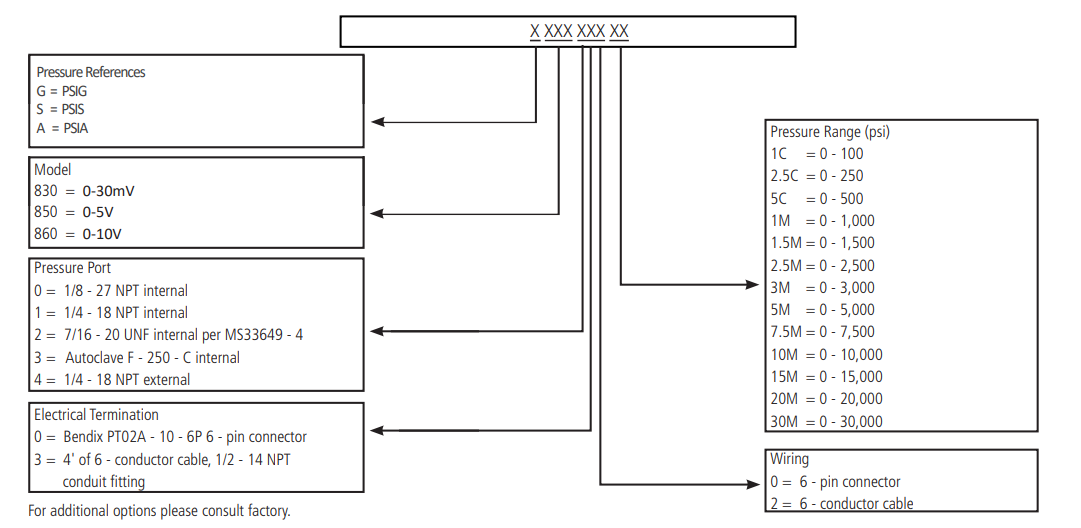

Ordering Guide for 830 | 850 | 860 Series

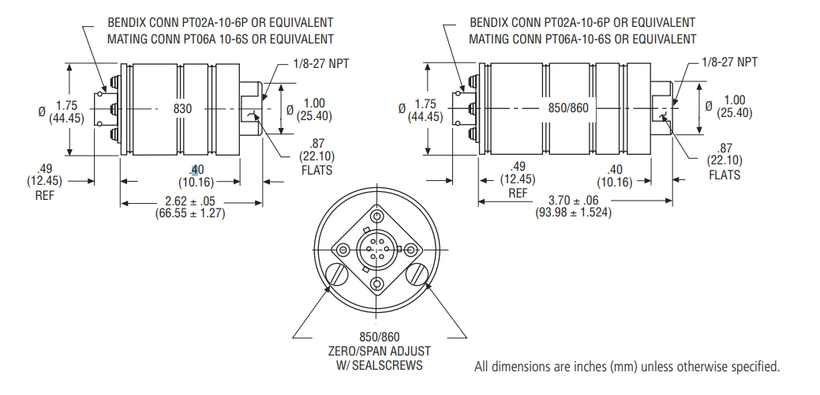

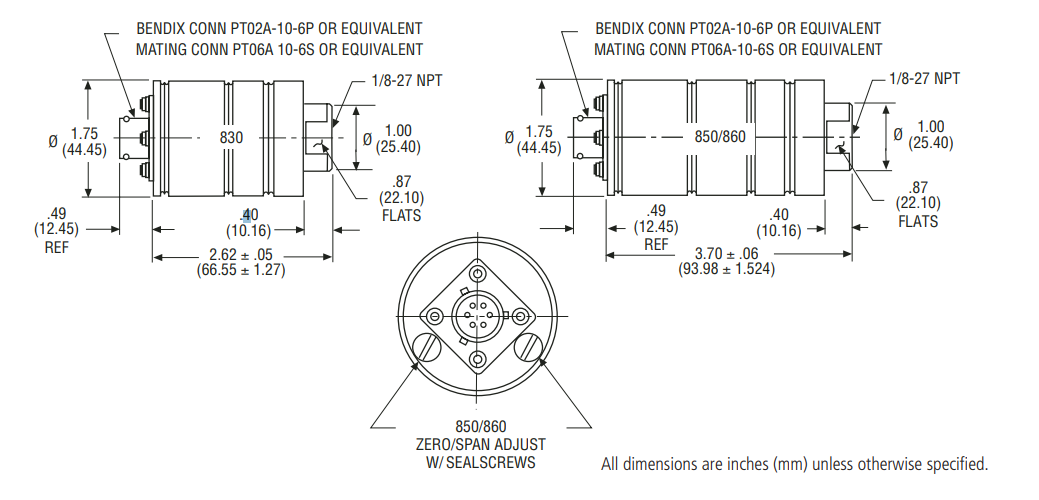

830 | 850 | 860 Series - Dimensions
All dimensions are inches (mm) unless otherwise specified.
