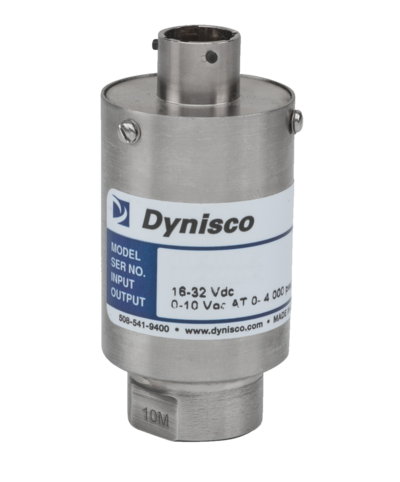

832 Model
Dynisco's 832 is a universal sensor for most applications. The sensor offers highly accurate pressure measurement in the range of 0 to 10,000 PSI. Excellent temperature compensation is ensured by high performance in operating environments up to 120 ° C. Its high accuracy and robust design make it ideal for a variety of applications, such as test stands for the automotive and automotive industries up to test equipment for polymer systems.
832 Pressure sensor
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco Configuration Code:
High Accuracy, Simple Installation, Repeatability And Reliability
832 Pressure Sensor
Excellent temperature compensation provides superior performance at operating ranges of up to 250 degrees Fahrenheit. Its high accuracy and versatile, rugged design make it ideal for applications as diverse as automotive test stands and polymer test equipment.
⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.
832 Pressure Sensor Series
Dynisco's 832 General Purpose Sensor offers highly accurate pressure measurement at ranges up to 10,000 PSI. Excellent temperature compensation provides superiour performance at operating ranges of up to 250 degrees farenheit. Its high accuracy and versatile, rugged design make it ideal for applications as diverse as automotive test stands and polymer test equipment.
Performance Characteristics
| Pressure Range: | 0 - 10 000 PSI |
|---|---|
| Accuracy: | ±0.15% FSO including linearity, hysteresis, and repeatability |
Electrical Characteristics
| Full Scale Output: | 3 mV/V ±0.25% |
|---|---|
| Input/Output Resistance: | 350 Ohms ±5 Ohms |
| Zero Balance: | ±1% FSO |
| Insulation Resistance: | 1,000 megohms @ 50 Vdc |
| Internal Shunt Calibration: | 80% ±0.5% FSO |
| Excitation: | 10 Vdc recommended, 15 Vdc maximum |
Temperature Characteristics
| Operating Range: | -65°F to +250°F (-54°C to +120°C) |
|---|---|
| Compensated Range | 0°F to 150°F (-18°C to +66°C) |
| Temperature Effect On Zero: | ±0.003% full scale/°F (±0.005% full scale/°C) |
| Temperature Effect On Span: | ±0.003% full scale/°F (±0.005% full scale/°C) |
Mechanical Characteristics
| Safe Overpressure: | 1.5 x rated pressure |
|---|---|
| Burst Pressure: | 100 - 250 psi: 10 x rated pressure 500 - 3,000 psi: 5 x rated pressure 5,000 - 10,000 psi: 3 x rated pressure |
| Wetted Material: | 17 - 4 PH, 15 - 5 PH stainless stee |
| Cover Material: | 303, 304 stainless steel |
| Weight: | Approximately 13 ounces |

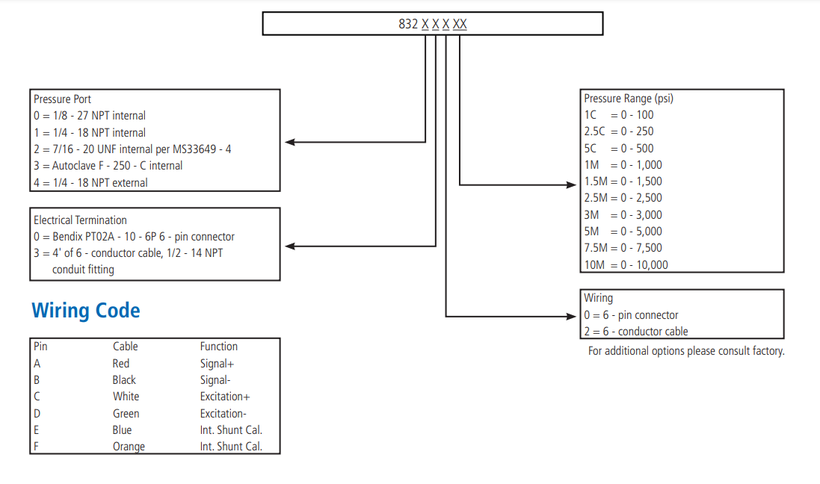

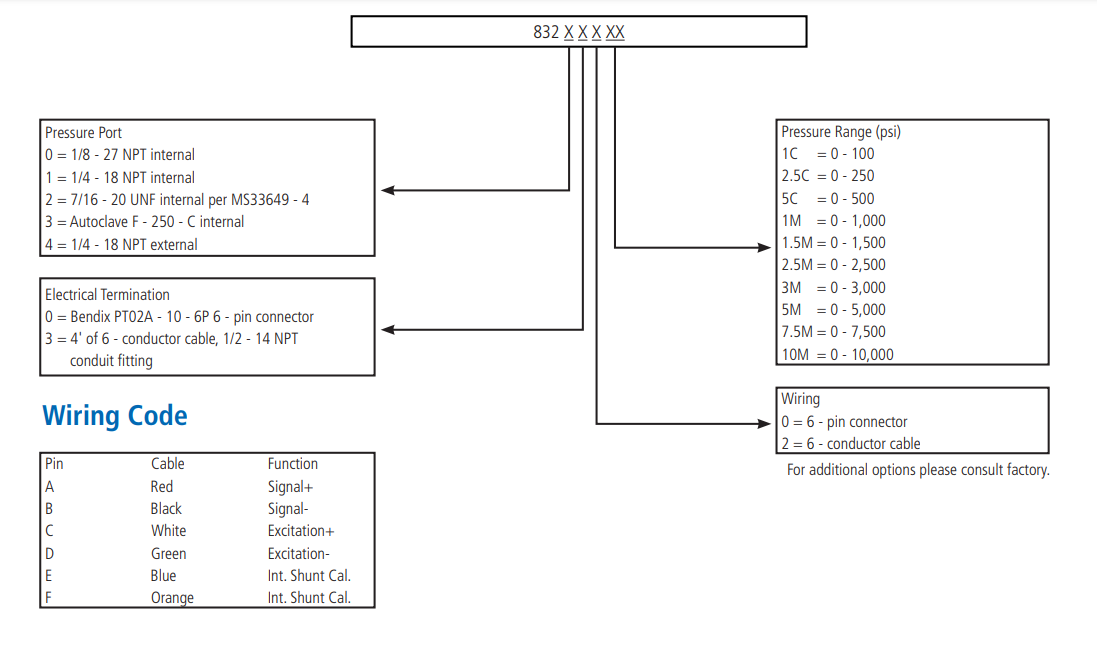

Ordering Guide for 832 Pressure Sensor Series

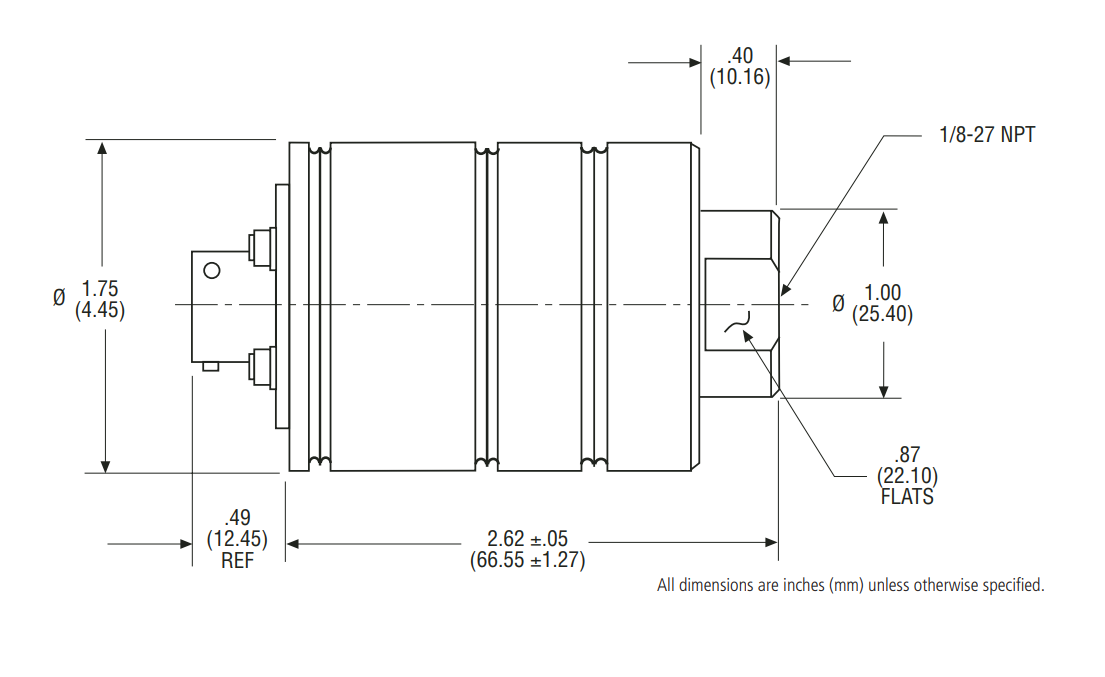

832 Pressure Sensor Series - Dimensions
All dimensions are inches (mm) unless otherwise specified.
