Pressure-increasing polymer metering pump for polymer compounding and processing in the polyolefin industry – polyrex⁶ PR

Polyrex⁶ PR

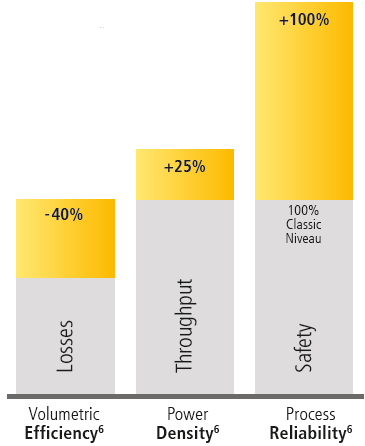

Processes in the manufacture of polyolefins require high-pressure gear pumps which build up pressure for the units after the compounder. The new performance driven geometry of polyrex® x⁶ class results in high throughput rates at high flow rates and low shear stress. polyrex⁶ can convey low viscosity polymers where earlier pump generations failed. Thanks to increased pump performance, the specific conveying capacity is 50% higher compared to same housing size pumps of older generations. For debottlenecking existing plants, MAAG offers alternative housing designs with matching interfaces to older pump generations.

Suitable for Masterbatch, Compounding

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative MAAG products. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences.

If you need more information do not hesitate to contact us.

MAAG Configuration code

Your personal data will be processed according to Terms of personal data processing..

A range of typical pumping media (EN)

  • Low density polyethylene (LDPE)
  • Linear low density polyethylene (LLDPE)
  • High density polyethylene (HDPE)
  • Polypropylene (PP)
  • Ethylene propylene dimonomer (EPDM)
  • And others

Technical Data

Differential pressure [bar] max. 320
Viscosity in mPas 20000000
Temperature in °C Up to 350
Housing Stainless steel / carbon steel
Gear shafts * Nitrided steel  * Tool steel
Shaft Seals viscoseal
Pump heating With heat transfer medium max. 350°C, max. 40 bar
Installation The polyrex® gear pump is flange-mounted to the extruder or mixer by means of an adapter

Technical Data (Alternative)

Differential pressure [bar] max. 320
Viscosity in mPas max. 20.000, TO: max. 60
Temperature in °C 350
Housing Stainless steel / carbon steel
Gear shafts * Nitrided steel  * Tool steel
Shaft Seals viscoseal
Pump heating With heat transfer medium max. 350°C, max. 40 bar
Installation The polyrex® gear pump is flange-mounted to the extruder or mixer by means of an adapter

Drive units

Together with the extrex6 we can also provide the drive unit as a package. For optimum performance it is important the drive units are calculated to the application requirements and as accurately as possible. Maag has both the experts and high level modeling programs to assure just the right combination of torque, speed and efficiency.
Newly introduced is our Dual Drive unit designed for high abrasive, recycling and Fluoro polymer applications. The Dual drive unit is a Maag own development to bring up an economical and effective solution for processes requiring minimum gear toothand loading.

Viscoseal

ViscosealAvailable for high viscous fluids

The viscoseals are available for highly viscous fluids which are used for extrusion gear pump systems. The seal is contactless and dynamic. It has a simple design and has only one sealing part. A cooled model is available for the polymer extrusion industry is available and it is virtually maintenance free.
