PT303 Pressure sensor - Trouble Free Operation

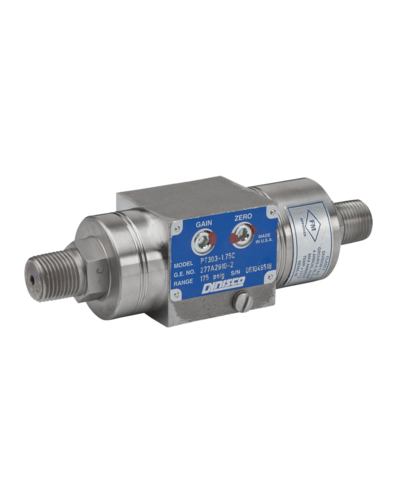

PT303 Pressure sensor

Dynisco's PT303 pressure transmitter is designed for gas turbine pressure applications in hazardous locations. They heavy duty construction and wide pressure ranges offer trouble-free operation and flexibility to meet your requirement.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

PT303 Pressure sensor

PT303 Pressure sensor

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco Configuration Code:

Your personal data will be processed according to Terms of personal data processing..

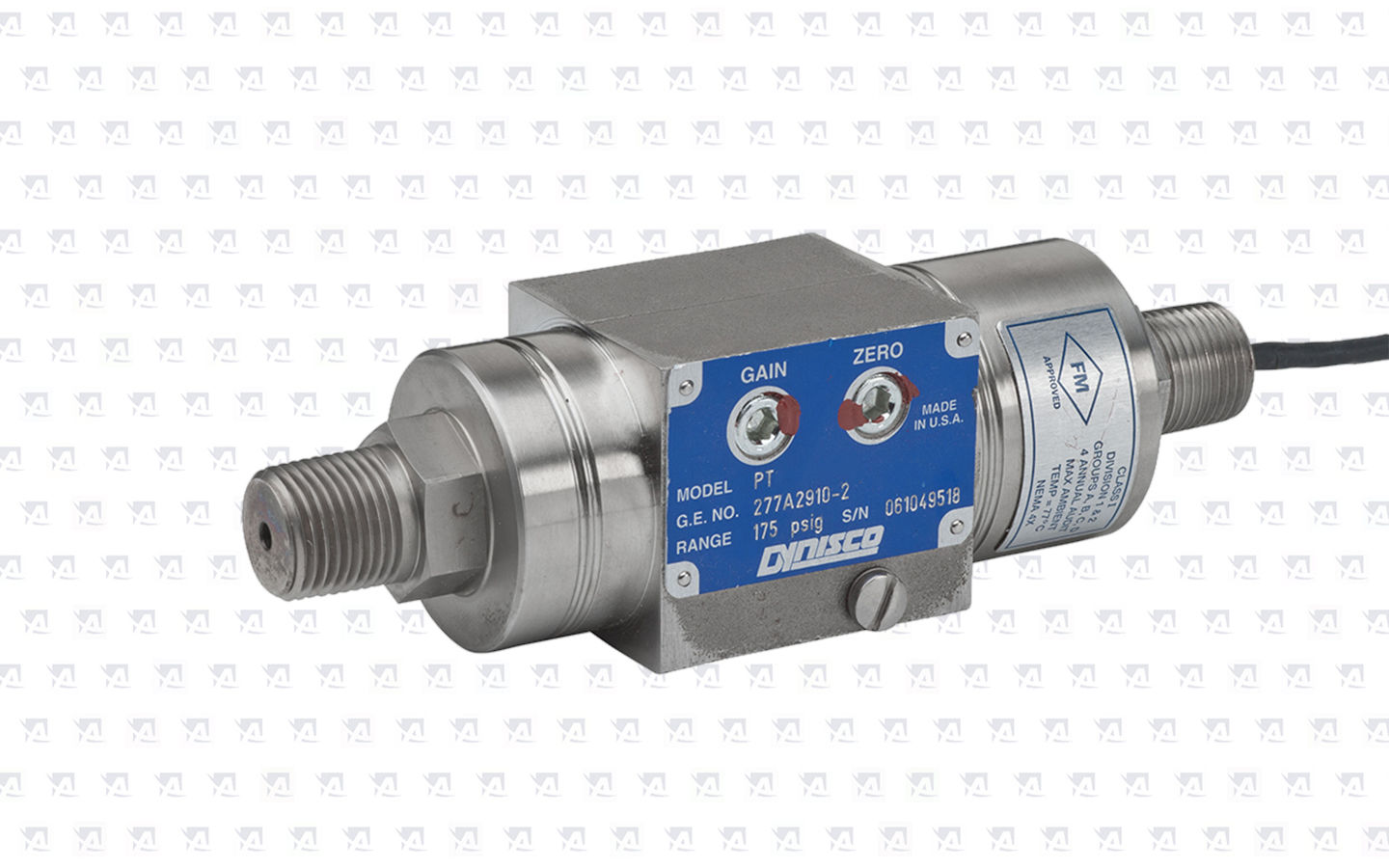

PT303 Pressure Transmitter

Trouble Free Operation


Rigid stem pressure transducers are very easy to install in the mounting hole of the production line. The problem occurs when the sensor is used incorrectly. This transducer can never be used in a vertical installation without thoroughly insulating of the transducer head. The electronics contained in the sensor would be highly exposed to radiant heat from the line and would cause early damage or displacement of measurement values. Therefore, if you are unsure of the correct installation always contact our technicians. If the sensor is repeatedly damaged it is not a defect in the sensor, but due to incorrect use or inappropriate configuration. We are able to solve these problems and offer you the ideal solution for your application.



Performance Characteristics


Pressure Range (psi): 0-110 through 0-700
Accuracy: ±0.25% FSO including linearity, hysteresis and repeatability
Full Scale Output: 4-wire 0-5 Vdc
Zero Balance: ±12 Vdc for FM approved explosion proof units 28 Vdc max.



Electrical Characteristics

1/2” NPT(M) Conduit connection, four conductor #22 AWG 72” in length

Excitation: ±12 Vdc for FM approved explosion proof units 28 Vdc max.
Color:
Function:
Red + Signal
Black - Signal
White + Excitation
Green - Excitation

Temperature Characteristics



Operating Range: +170°F (76.7°C) maximum
Temperature Effect On Zero:  Range dependent
Temperature Effect On Span: Range dependent

Mechanical Characteristics



Pressure Connections: PT130: -65°F to +250°F (-54°C to +120°C)
PT140/150/160: -20°F to +185°F (-29°C to +85°C)
Proof Pressure: 0°F to +150°F (-18°C to +66°C)
Materials Of Construction: PT130: ±0.005% full scale/°F (±0.009% full scale/°C) typical (±0.01%/±0.018% maximum);
T140/150/160: ±0.02% full scale/°F (±0.036% full scale/°C)
Housing: 303, 304 SST
Wetted Parts: 5 x rated pressure
Wetted Material: 15-5 SS
Weight: 3.15 lbs
FM Approvals: Class 1, Division 1 Groups A, B, C & D

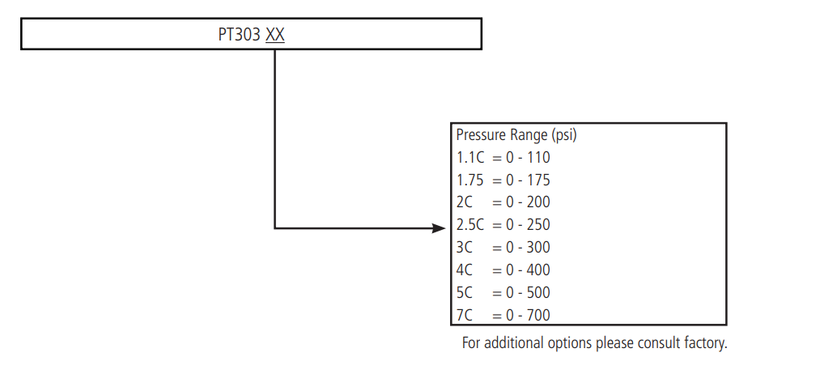

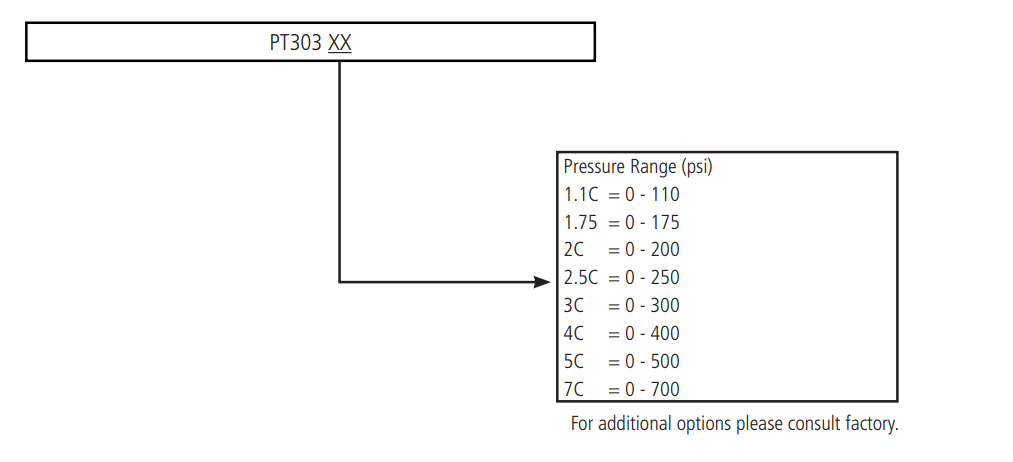

Ordering Guide for PT303 Pressure Transmitter

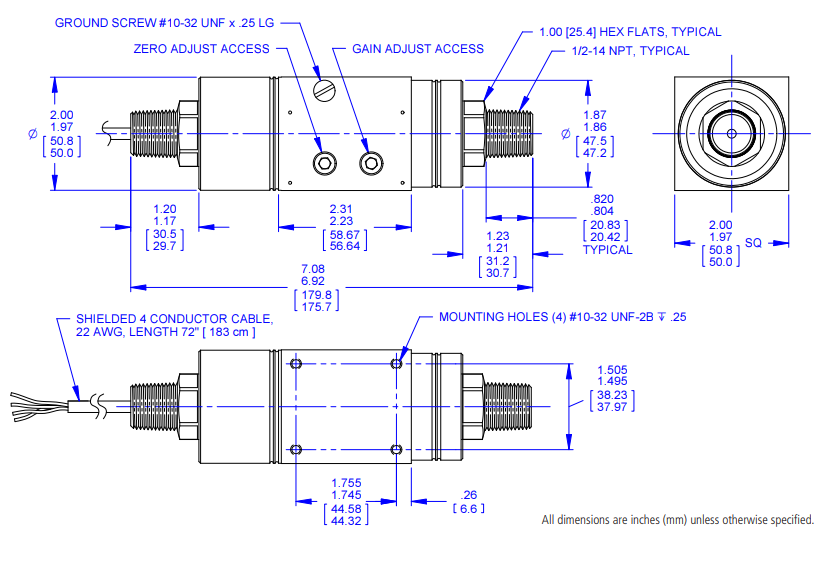

PT303 Pressure Transmitter - Dimensions

All dimensions are inches (mm) unless otherwise specified.
