PT375 Pressure Transducer

PT375 Pressure Transducer

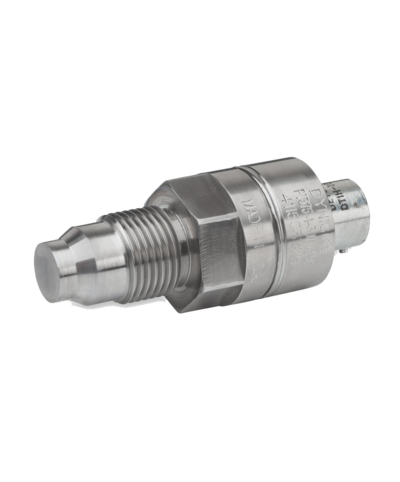

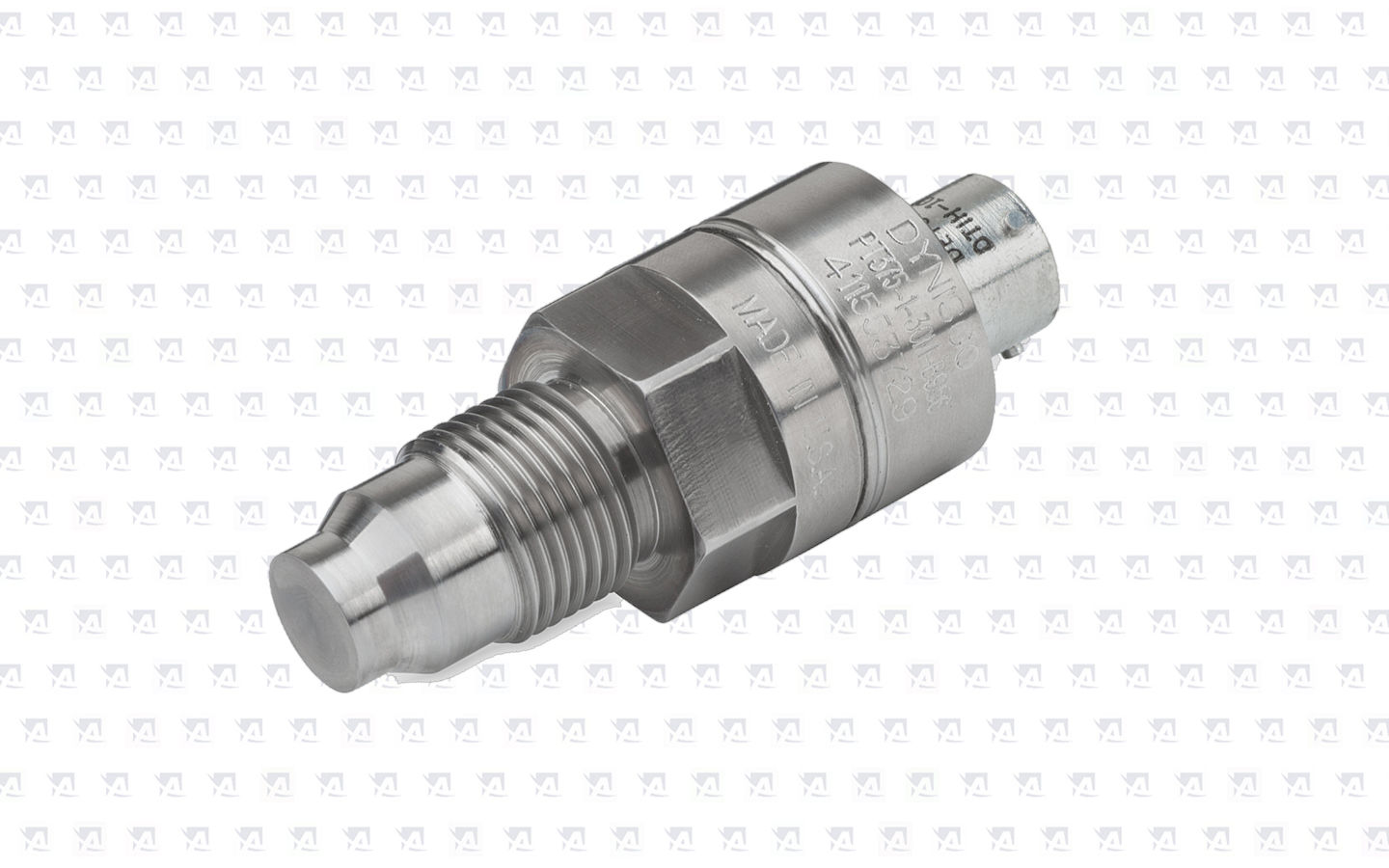

The Dynisco PT 375 pressure transmitter is designed for applications requiring a zero volume pressure port, fast response time and strict cleanliness standards. The high-pressure metal-to-metal seal offers reliable pressure measurement of sludges, viscous liquids and other media that can be homogenized.

PT375 Pressure Transducer

PT375 Pressure Transducer

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

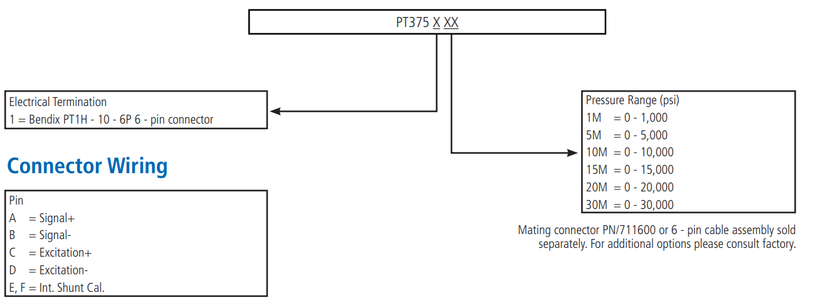

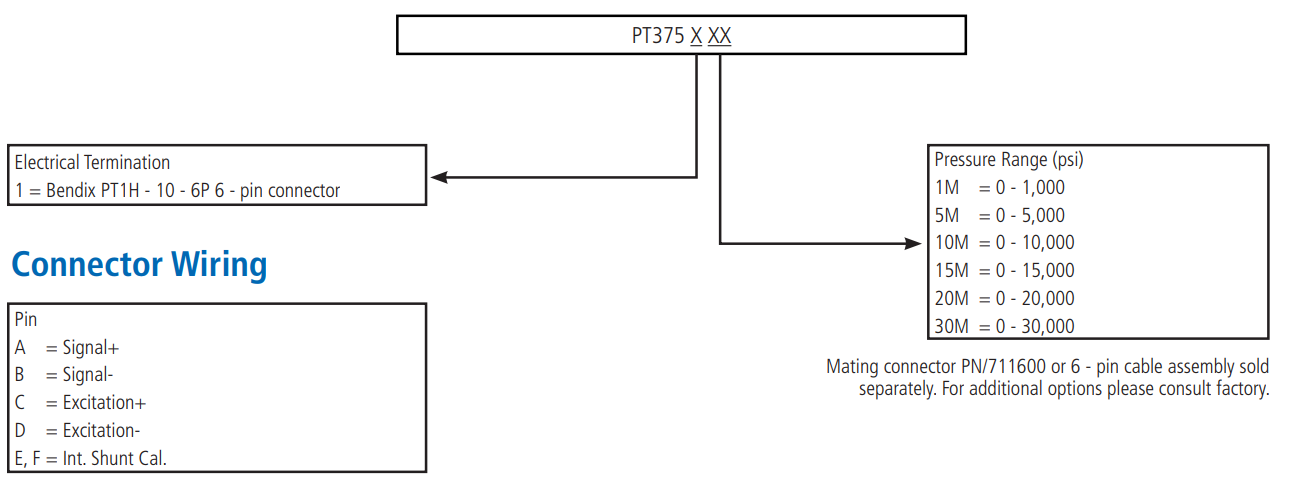

Dynisco Configuration Code


PERFORMANCE CHARACTERISTICS

Pressure range:
from 1000 psi to 30,000 psi
Accuracy:
± 0.5% FSO, (Including linearity, repeatability and hysteresis)
Safe overpressure:
1000 - 15,000 psi: 2 x nominal pressure
20,000 - 30,000 psi: 1.3 x nominal pressure
  Burst pressure: 1000 - 15,000 psi: 3x nominal pressure
20,000 - 30,000 psi: 2x nominal pressure
  Sensor diaphragm: Inconel 718
  Sensor connection: 1/2"-20 UNF , M14 x 1.5 , M18 x 1.5 , M22 x 1.5
  Mounting torque: 1000 - 10 000 psi: 50 ft./lb.
15 000 - 30 000 psi: 100 ft./lb.
  Sensor construction: 303, 304 stainless steel

TEMPERATURE CHARACTERISTICS

Max. membrane temperature:
-54 ° C to + 120 ° C
Compensated range
-18 to + 120 ° C
-------------------------------------------
------------------------------------------------------------------
  Max. sensor body temperature: 120°C
  Zero shift (due to temperature): 0.018% full range /°C
  Range shift (due to temperature): ± 0.036% full range /°C

ELECTRICAL CHARACTERISTICS


Power supply:
10Vdc recommended, 12Vdc max
Output signal:
3 mV/V ±2%
Zero setting:
Zero Balance: ± 2% FSO
  Connector: 6 Bendix PIN connector
  Insulation resistance: 1,000 megohmu @ 50 Vdc
  Resistance calibration (R-Cal): 80% of duty. range ± 0.50% of the total range

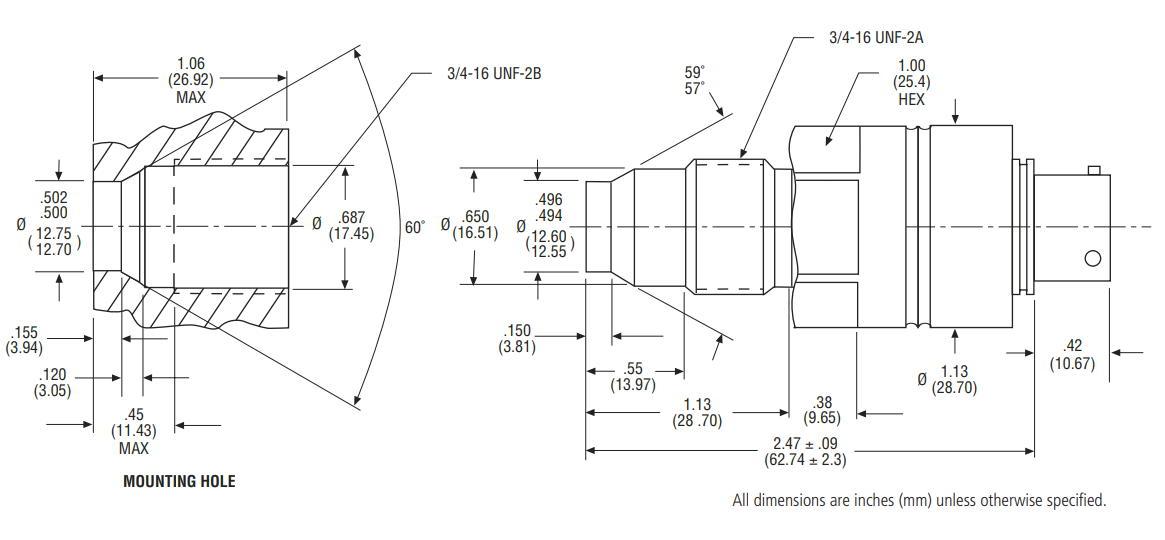

ROZMĚRY SNÍMAČE:





Certification & Approval

EU Declaration of Conformity for Flush Mount mV/V Output

ISO 9001:2015

EAC - The Eurasian Conformity mark

GOST Approval

RoHS Compliance Fact Sheet

Safety Integrity Level - SIL2
