VPC 999084 Transducer Simulator
Model VPC-999084 simplifies the on-line troubleshooting of Dynisco strain gauge transducers, signal conditioners, and indicators. Its out-put can be varied in 20% steps or via a variable trim pot.
Optional sensor output sensitivity
Standard 6-pin Bendix connector
5 stage linear output 0 - 100%
Identifies defective components in the measuring loop
Simulates a number of sensors
Replacements for most pressure transducers
Indicator linearity check
Diagnostic tool
Bendix 6-PIN connectors
Separate Bendix connectors. In the variant of the 6-pin connector.

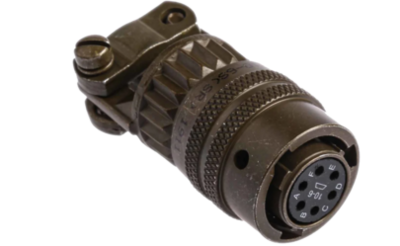

6-pin connector
Bayonet connection
8-pin connector
Threaded connection
Guardian function
Machinery Directive standard EN ISO 13849-1 is a European safety regulation. This is a generic standard defining the requirements for the safety-related parts of control systems. Guardian meets the directive without the expense and complication of redundant sensors and external relay modules. Guardian also complies with NFPA 79 clauses A.9.2, A.9.4.1, A.9.4.3.2 as a way of evaluating safety-related aspects of control functions.
Integrated safety relay
Third party analysis (exida ™)
Meets performance level "c"
Machinery Directive (category 3)
Machinery Directive 2006 /42 / EC
SIL1 or 2 (output dependent)
NFPA provisions 79 A.9.2, A.9.4.1, A.9.4.3.2
Directive EM-C 2004/108 / EC
Available on all known Dynisco pressure sensors
