Providing Innovative Solutions
With more than 6 decades of commitment to helping customers, Dynisco provides the tools and services for the polymer industry allowing customers a “window into the process”.
Today’s customers require accurate information that will allow them to validate and if necessary adjust their process ensuring the products they make meet or exceed their specifications. The information Dynisco provides allows our customers to keep their process consistent regardless of their global locations.
Dynisco’s diverse portfolio of sensing and polymer test equipment delivers some of the most accurate information available in the market for the measurement of polymer rheology, pressure, and temperature.
Dynisco provides our customers the ability to correlate the data derived from pilot to laboratory environments with online production, 24 hours a day. This data allows for immediate response and adjustment to critical parameters ensuring any variations are promptly corrected to guarantee quality while maximizing their output.
Dynisco History
Known worldwide for leading-edge pressure and temperature measurement and control products for the plastics extrusion industry, Dynisco has been developing innovative, high-quality solutions for plastics extrusion processing for 60 years built on the expertise of an engineering staff that averages 15-20 years experience. Dynisco sensors, controls, and analytical instruments have proven to offer better control, reduced downtime, minimum scrap, and unmatched reliability and working life. Our dedication and ability to collaborate with you to help you measure, analyze and outfit extrusion control systems that fit your exact needs are unmatched. From breakthrough technology in the industry’s most complete line of sensors to renowned quality and performance in indicators, controls, and analytical instruments.
Dynisco Sensors Designed specifically for the rugged environment of the plastic industry, Dynisco has developed some of the most innovative measurement solutions for plastic extrusion, molding and process control applications. Manufacturing a wide range of robust mV/V, mA, VDC and HART-compatible melt pressure sensors, through engineering excellence built on expertise and experience.
Dynisco Analytical Instruments Process quality begins with the material being used. Dynisco's analytical instruments allow the processor to verify material specifications and optimize process conditions. These instruments include melt flow
[Dynisco Heilbronn Germany Facility]
indexers, capillary rheometers, and small laboratory mixing extrusion systems. Dynisco also offers the most comprehensive and accurate line of online rheometers available in the market today.
Dynisco offers a full range of global service and technical support for our complete line. Dozens of highly skilled, technical support personnel are stationed internationally to provide:
- Expert consultation
- Custom design solutions
- On-site equipment diagnostics and trouble-shooting
- Transducer repair and maintenance ∙ Installation services
- Operator training for equipment ∙
- System repairs, replacement parts, preventive maintenance and more
Customers around the world have come to depend on Dynisco for product innovation and advanced system solutions that have a significant impact on their manufacturing process efficiencies.

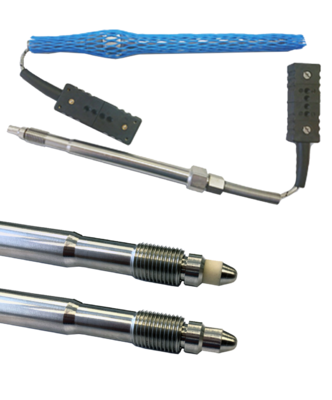

DYKE
The Dynisco Melt Thermocouple Series DYKE is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. As an alternative to the DYM T series, the DYKE series offers the possibility of a thermal insultation of the housing. The sensor tip is being ceramically insulated from the housing. These temperature sensors are especially suitable for the use in high abrasive medial.
Conical tip
Up to 1000 Bar
Various TC and RTD
Optional threaded connection
Optional ceramic insulation

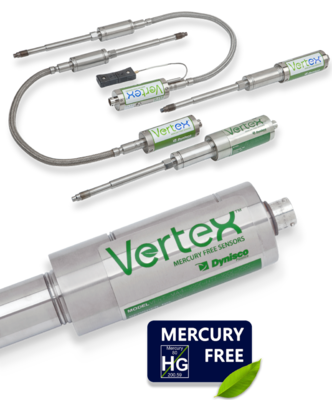

Vertex Series
Vertex is more accurate than any other mercury-filled sensor and is ideal for industrial applications that require low pressure.
The pressure range for Vertex is now available from 250 - 10,000 PSI. Not only is this an overall improvement to one’s process, but it helps with customers that are focused on sustainability and zero-waste.
Optional output signal
Mercury-free sensor
Reinforced membrane
Optional HART communication
Optional connector
Accuracy better than 0.25%
Internal Shunt Calibration (R-Cal)
MDT467
MDT467 - Sensor with flexible and exposed capillary
Sensor with amplifier (signal converter) in version with flexible capillary and exposed membrane. Scanning accuracy better than 1.00% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.
Accuracy better than 0.5%
Power supply 10 -36 V dc
6 Pin connector
R-Cal calibration
Up to 400 °C
For small areas
Flexible capillary
Electrical built-in calibration
Various high level outputs

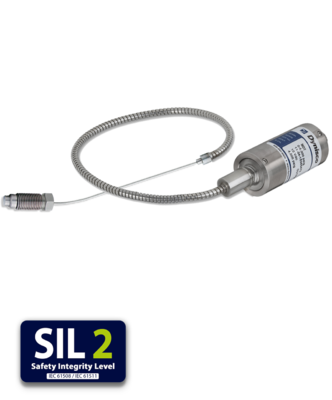

MDT435
MDT435 - Sensor with flexible and exposed capillary
Sensor with an amplifier (signal converter) in a version with flexible capillary and exposed membrane. Scanning accuracy better than 0.50% of the range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.
Accuracy better than 0.25%
Power supply 10 -36 V dc
6 Pin connector
R-Cal calibration
Up to 400 °C
For small areas
Flexible capillary
Electrical built-in calibration
Various high level outputs
MDT460 | 462 | TDT463
MDT460 - Sensor with rigid stem
MDT462 - Sensor with flexible capillary.
TDT463 - Sensor with flexible capillary and temperature sensor.
Sensor with integrated amplifier (signal converter). Scanning accuracy better than 1.00% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.
Output signal according to configuration
Accuracy better than 0.50%
Power supply 10 -36 V dc
6 Pin connector
R-Cal calibration
Up to 400°C

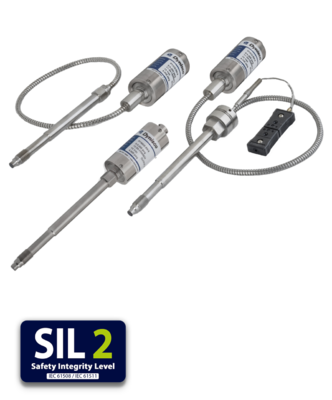

MDT420 | 422 | TDT432
MDT420 - Sensor with rigid stem
MDT422 - Sensor with flexible capillary.
TDT432 - Sensor with flexible capillary and temperature sensor.
Sensor with integrated amplifier (signal converter). Scanning accuracy better than 0.50% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.
Output signal according to configuration
Accuracy better than 0.25%
Power supply 10 -36 V dc
6 Pin connector
R-Cal calibration
Up to 400°C

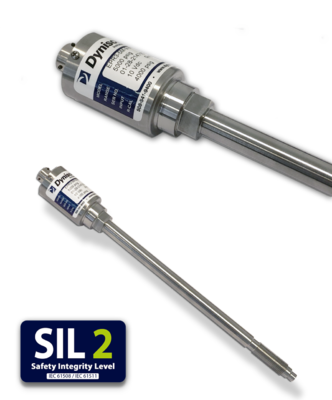

EPR4 Push Rod Sensors
The EPR4 series are sensors with ± 0.5% accuracy ideal for food or medical applications requiring easy installation, repeatability and reliability. Technology Push Rod design is especially suitable for food or medical applications with the possibility of filled systems. EPR4 provide an industry standard in the form of an amplified 4-20 mA signal designed to work with DCS and PLC. The EPR4 model is available in various pressure variants.
Better than ± 0.5% accuracy
Fixed rod construction
Usable up to 400 ° C
Welded stainless steel construction
4-20 mA output signal
Internal calibration 80%
EPR3 Push Rod Sensors
The high-temperature EPR3 melt pressure sensor from Dynisco is offered as an alternative to the PT420 and PT460 series. The solid rod design is suitable for applications where the use of a filling medium may not be appropriate, such as applications for the food and pharmaceutical industries and the production of photographic films. The EPR3 model is available in various pressure variants.
Better than ± 0.5% accuracy
Fixed rod construction
Usable up to 400°C
Welded stainless steel construction
Internal calibration 80%

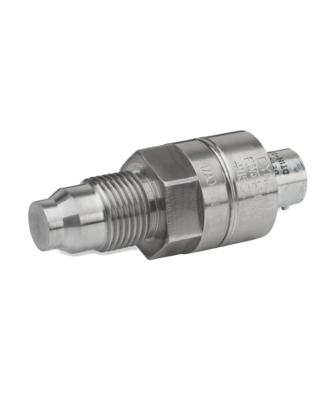

PT375 Pressure Transducer
The Dynisco PT 375 pressure transmitter is designed for applications requiring a zero volume pressure port, fast response time and strict cleanliness standards. The high-pressure metal-to-metal seal offers reliable pressure measurement of sludges, viscous liquids and other media that can be homogenized.
3 mv/v output
Accuracy ±0.50%
Pressure ranges 0-30,000 PSI
Iconel 718 pressure fitting
Zero volume pressure port
Meets cleanability standards
Metal-to-metal pressure seal
Internal 80% shunt calibration

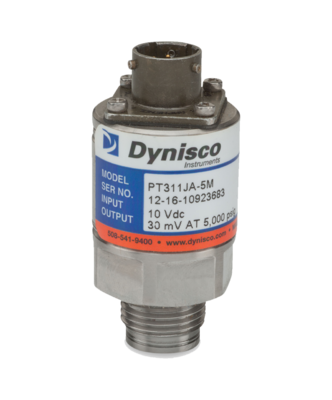

PT311JA Pressure sensor
The Dynisco PT311JA Washable Pressure Sensor is designed for applications requiring a zero volume pressure port. The recessed diaphragm improves the frequency response. The PT311JA has a full 3 mV / V output signal and offers reliable and accurate pressure measurement of gases, viscous liquids.
Flush diaphragm
Accuracy ±0.50%
Zero volume pressure port
15 to 10,000 psi
3 mV/V output
Internal shunt calibration

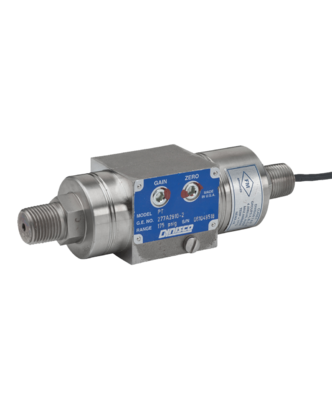

PT199 Pressure sensor
The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.
Stainless steel construction
Adjustable zero and upper range
Excellent temperature compensation
Ranges 0-15 PSI to 0-15000 PSI
Advanced electronic design
Accuracy ±0.25% PT199B, PT199S, APT199S
Accuracy ±0.5% PT199

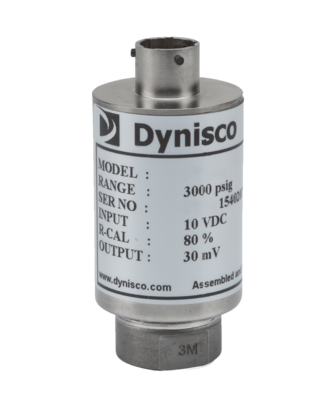

PT139 | PT139A
Dynisco PT139 and PT139A pressure sensors are designed to measure hydraulic pressure in extreme conditions for testing vehicles, stands and other hydraulic and pneumatic applications. These sensors withstand cyclic pressure and provide excellent performance during demanding industrial conditions.
Full power 3 mV/V
Accuracy better than ± 0.5%
The pressure range is from 0-15 PSI to 0-10,000 PSI
Pressure and vacuum support
Extended operating temperature range
Fully welded stainless steel construction
It resists strong shocks and vibrations
Internal 80% calibration
CE approval
