PT Series

Model PT4675 is a special variant of the pressure sensor with flexible capillary and exposed capillary, which has a 0-5 VDC output signal and is used wherever a conventional fixed rod or flexible capillary sensor cannot be installed due to lack of space. The accuracy of this sensor is better than ±0.5%.

Model PT4676 is a special variant of the pressure sensor with flexible capillary and exposed capillary, which has a 0 to 5 Vdc, 1 to 6 Vdc, 0 to10 Vdc, 1 to 11 Vdc outputs signal and is used wherever a conventional fixed rod or flexible capillary sensor cannot be installed due to lack of space. The accuracy of this sensor is better than ±0.5%.

The PT4654XL models represent an optimal solution for precise melt pressure measurement in nozzles or distribution channels within injection molding applications.

The flexible capillary extends from its electronic housing to the positioned tip in the machine melt, ensuring exceptional durability and prolonged sensor lifespan thanks to its robust construction.

The PT4655XL models represent an optimal solution for precise melt pressure measurement in nozzles or distribution channels within injection molding applications.

The flexible capillary extends from its electronic housing to the positioned tip in the machine melt, ensuring exceptional durability and prolonged sensor lifespan thanks to its robust construction.

The PT4656XL models represent an optimal solution for precise melt pressure measurement in nozzles or distribution channels within injection molding applications.

The flexible capillary extends from its electronic housing to the positioned tip in the machine melt, ensuring exceptional durability and prolonged sensor lifespan thanks to its robust construction.

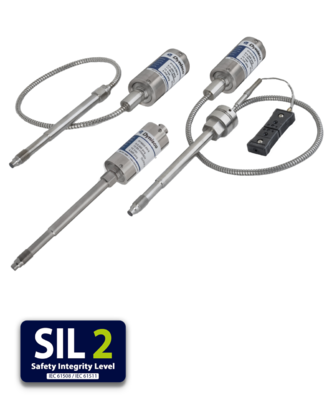

PT4604 - Sensor with rigid stem
PT4624 - Sensor with rigid stem and flexible stem
TPT4634 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

The PT46x4 Series pressure sensor is a ±0.5% sensor ideal for general melt pressure measurements requiring simple installation, repeatability and reliability. The PT46x4 sensor provides the industry standard 4-20 mA amplified signal designed to work with DCS and PLCs.

PT4605 - Sensor with rigid stem
PT4625 - Sensor with rigid stem and flexible stem
TPT4635 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

The PT46X5 Series transmitter is a +/- 0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X5 transmitters provide the industry standard 0 - 5 Vdc amplified signal designed to work with DCS and PLCs, 1 - 6 Vdc outputs are also available.

PT4606 - Sensor with rigid stem
PT4626 - Sensor with rigid stem and flexible stem
TPT4636 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

The PT46X6 Series transmitter is a ±0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X6 transmitters provide the industry standard 0 - 10 Vdc amplified signal designed to work with DCS and PLCs, 1 - 11 Vdc outputs are also available.

PT130 =  3 mV/V
PT140 =  0-5   VDC
PT150 =  0-10 VDC
PT160 =  4 - 20 mA

This range of hydraulic sensors is designed to measure pressure in injection molding applications. It has a very good resistance to cyclic pressure, which is characteristic of these applications and provide information on the change of the hyd profile. pressure together with information on the stability of the injection system

Dynisco PT139 and PT139A pressure sensors are designed to measure hydraulic pressure in extreme conditions for testing vehicles, stands and other hydraulic and pneumatic applications. These sensors withstand cyclic pressure and provide excellent performance during demanding industrial conditions.

The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.

The Dynisco PT303 pressure transmitter is designed for all pressure applications in potentially explosive atmospheres. With high performance and a wide range of pressures, it offers trouble-free operation and flexibility to suit all your requirements.
